Product Details:
|
| Brand Name: | Aorui | Raw Material: | PET |
|---|---|---|---|
| After-sales Service: | Engineers Availiable To Service | Certificate: | CE ISO9001 |
| Place Of Original: | Shandong , China | Capacity: | 120-500kg/h |
| High Light: | Plastic Pelletizing Machine,Plastic Granulating Machine |
||
Factory Price PET Bottle Granules Machine , Plastic Granule Pellet Making Machine
QUICK DETAIL:

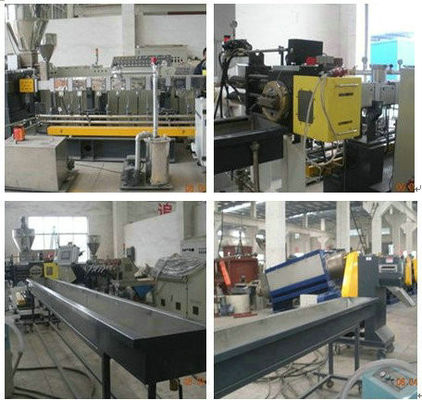

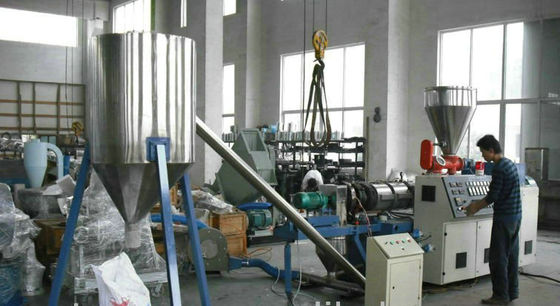

1. PP PE ABS PET pellet production line is the whole processing line includes machine: high speed mixer for mixing all raw material, extruder for plastic material plasticize,shear, disperse and extrude, extrudate cooling system, extrudate cutting /pelletizing system and pellet classification system.
2. This PET Crystallizing Dehumidifying dryer machine can serve PET sheet extrusion machine, PET strap production line, PET fiber production machine, PET bottle blowing machine and PET bottle flakes washing recycling line. Also can serve PLA/PETG/PA/PC/PBT products making machines.
Description:
1. New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.
2. The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face.
3. Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.
Specifications:
| Model | SHJ-50 | SHJ65 | SHJ-72 | SHJ-92 |
|
Screw diameter (mm) |
50.5 | 62.4 | 71.2 | 91 |
|
Rotary speed (rpm) |
500/600 | 400-500 | 400/500 | 400/500 |
|
Main motor (kw) |
37/45 | 55/75 | 90/110 | 220/250 |
| L/D | 32-38 | 32-48 | 32-48 | 32-40 |
|
Capacity (kg/h) |
80-150 | 150-300 | 300-600 | 600-1000 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
