Product Details:
|
| Condition: | New | Screw Design: | Single Screw |
|---|---|---|---|
| Certificate: | CE ISO9001 | Place Of Original: | Shandong , China |
| Automatic Grade: | Fully Automatic | Warranty: | 1 Year |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||

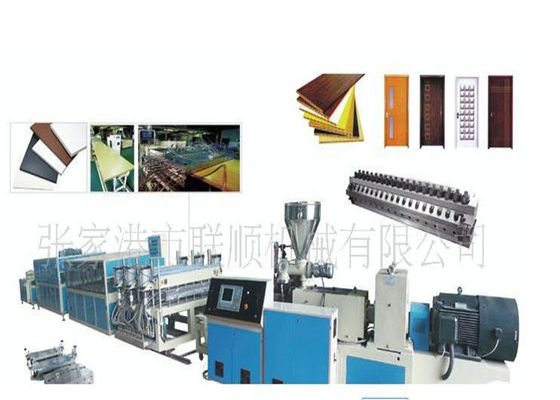

PVC WPC PP PE Panel Profile Production Line , PP PE Foam Profile And Plate Extrusion Line
Quick detail:

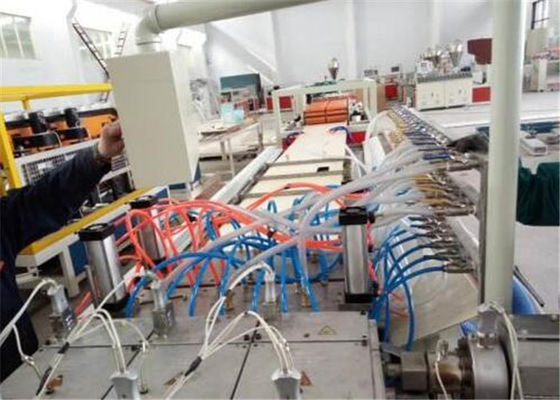

1. This production line adopts international technology, uses PE, PP, PVC, PS or other plastics compounding with nature fiber powder as the raw material, employs high efficiency conical twin screwextruder , mould .vacuum calibration table ,tractor and cutter.

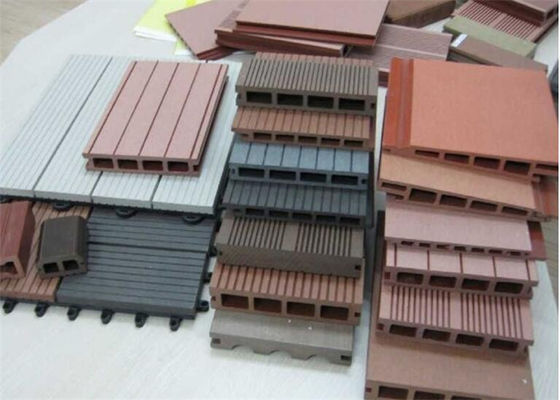

2. The profile products are popularly used as the building board, partition wall aboard, plank on storage rack and furniture board, etc.
Description:
1. Advantages:
Environmental protection,uvioresistant,nonradiative,germproof,exclusive of formaldehyde, ammonia, and benzene,1)low cost and high quality 2)with CE,SGS certificate 3)with wood grain surface.
2. PP/PE WPC Profile Extrusion Production Machine Lin is a highly efficient agglomerating and extruding equipment. Machines of this series feature low shearing rate, uneasy degradation, even plastication and agglomeration, reliable quality, wide application range and long servicing life.
3. Using wpc particles as raw material for a direct forming, the exturders perform an excellent effectiveness. These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced feeding and sef-cleaning mechanism.
Technical Parameters:
| Model | CWE-51 | CWE-65 | CWE-80 | CWE-92 |
| Screw Dimater(mm) | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw Rotation Speed | 45 | 45 | 34.7 | 34.7 |
| Driving Motor (kw) | 22 | 37 | 55 | 110 |
| Output Capacity (kg,h) | 125 | 380 | 500 | 1000 |
| Center Height | 1000 | 1000 | 1000 | 1250 |
| Net Weight(kg) | 3000 | 4000 | 5500 | 8800 |
| Dimension(M) | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 |
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
