PVC Sheet Extruder Production Line , PVC Artificial Marble Sheet Extrusion Line

Name: PVC Sheet Extruder Production Line , PVC Artificial Marble Sheet Extrusion Line
Brand: QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1
SKU: SJSZ65/132
Availability: InStock

Brand Name:	AORUI
Model Number:	SJSZ65/132
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Model Number:

SJSZ65/132

Condition:

New

Type Of Extruder:

Two

Warranty:

1 Year

Certificate:

CE ISO9001

Brand Name:

Aorui

Automatic Grade:

Fully Automatic

Screw Design:

Double Screw

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

plastic sheet extrusion machine

plastic sheet extruder machine

Product Description

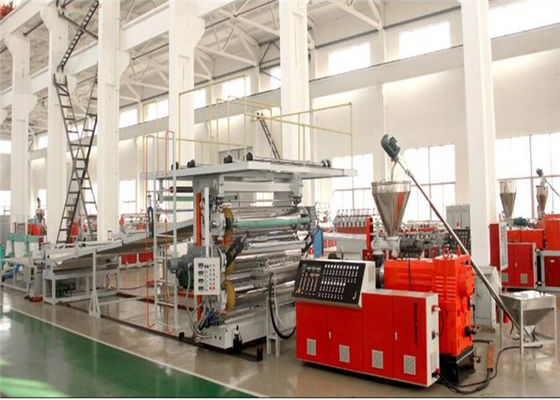

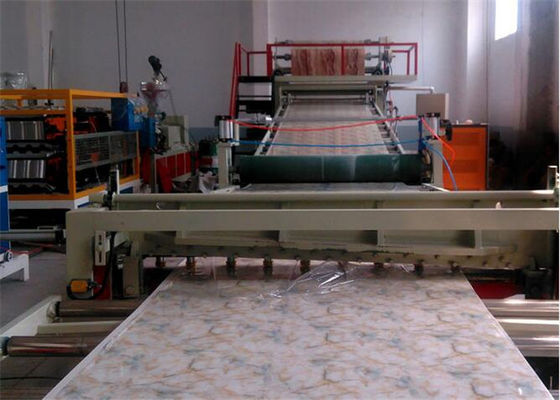

PVC Sheet Extruder Production Line , PVC Artificial Marble Sheet Extrusion Line , PVC Plastic Sheet Manufacture Machine

Quick Detail:

1. The machine details:

SJSZ-65/132 double screw extruder

Double-layer co-extruding distributor

Automatic cutter

Automatic stacker

Production width 1220mm

Thickness of sheet 0.7-2.0mm

Sheet thickness shall be regulated by screw and pressing roller

Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness

Automatic metering to set the length of product

Description:

1.The screw was designed special mixed material and high plastic so that it flux plastic, color and luster equality, output heighten.
Clothes rach Model DIE was designed special double throttle, it adjusts thickness of sheet exactly.

2.Temperature control can exactitude control the course of plastic and thickness and unknit of sheet.
Moulding unit adopt horizontal and vertical, it provide more choice in the operate course of thick sheet, sheet metal by fluctutuation at liberty and increase quality of sheet.

3. Adjusting thickness of sheet by screw and oil pressure pressing wheel double direction so as to achieve thickness exactly.
Pressing double loop cooling system, concert die temperature controller exactly control pressing wheel temperature so as to achieve unknit and thickness equally.

4. Cutting machine: Lengh and quantity of sheet achieve nicety.
Furing setting: It adopts senior torsion motor and four axis automatic tension, and adjust speet and furling tension at will for furling sheet metal unit. Dividing strip unit set width of the products.

Specifications:

Model	Unit	TYJB-75	TYJB-90	TYJB-110
Material applied	PP,PS,PE
Width of sheet	mm	≤600	≤750	≤1100
Thickness of sheet	mm	0.2-1.6	0.2-2.0	0.2-2.0
Extrusion capacity	kg/h	60-100	100-150	150-200
Diameter of screw	mm	75	90	105
Installed capacity	kw	75	90	120

Competitive Advantage:

1. High temperature resistance

2 . high output

3 . Have many years experience
