Single Screw Double Stage PE Plastic Pelletizing Machine with PLC Control System

Brand Name:	AORUI
Model Number:	SJ-65/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Power:

50kw

Warranty:

One Year

Model Number:

SJ65/33

Brand Name:

AORUI

Machine Color:

According To Customer's Requirement

Certificate:

CE & ISO9001

Raw Material:

Control:

PLC Control Systerm Availiable

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Plastic Recycling Machine

Plastic Pelletizing Machine

Product Description

Double Stage PE Plastic Recycline Granulator Machine , PE Granules Machine

QUICK DEATIL :

Feeding materials onto the Belt Conveyor materials being pre-heated, cut and compacted in the Cutter Compactor /Agglomerating machine being squeezed evenly in the Extruder coming out from the machine head after venting and filtering system Hydraulic screen changer being cut by Water ring pelletizing sytem being dried by Dewatering system being trasnferred into the Silo the End.

Description:

1. The production line consists of one conical forced feeding extruder, one single screw extruder, vacuum air venting device, fast net changing device and granule cutting device. The feeding part of the extruder is enlarged. The compressor has large volume compression ratio. The vacuum suction device at the connection parts can effectively exhaust the volatizing air in the material. The waste materials can be extruded directly.

2. The materials after heat mixing can be got into cool mixer for cooling automatically,exhausts remaining gases and prevent agglomeration. Its has self-friction and electric heating functions. Dual-sealing is adopted in the pot cover. Pot cover of cooling machine adopts arch cover,which can avoid deforming.

It has features of compact structure and good-looking appearance. They have passed dynamic and static balance test.

Applications:

Film recycling machine Applications:

Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, etc
Material shapes: film, bag, (PE, PP) regrind
Material types: rolls, loose, bundled
Material comes from offcut, industry defective film, washed film and printed film.
Note: depending on different material properties, various downstream equipments are needed.

Specifications:

Total capacity(L)	Effective capacity (L)	Mixer speed (rpm)	Motor power (KW)	Heating Method	Discharge Method	Dimensions (mm)	Weight(t)
200/500	150/ 320	475/950/130	30/42/ 11/9	Electric/self-friction	Manual/ Pneumatic	4850/ 2240/2470	3.5
300/600	200/ 360	475/950/130	40/55/ 11/9	Electric/self-friction	Manual/ Pneumatic	4680/ 2240/2740	3.8
300/1000	200/ 640	475/950/110	40/55/ 15/9	Electric/self-friction	Manual/ Pneumatic	4980/ 2500/2740	4.2
500/1000	375/ 640	430/860/50	47/67/ 15/12	Electric/self-friction	Manual/ Pneumatic	5580/ 2700/3432	5.8

Competitive Advantage:

1. good pre-sale and after-saes service

2. good quality and reasonable price

3. engineers availiable go abroad to service

4. easy to operate and maintain

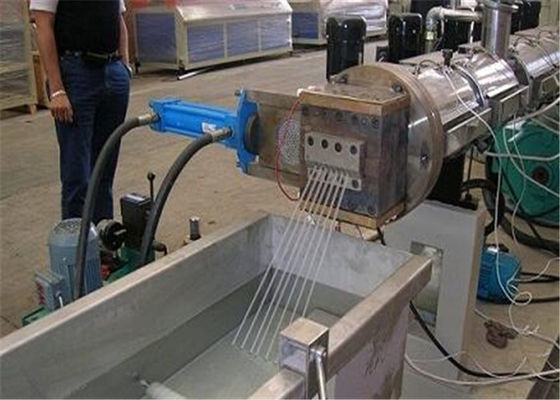

Single Screw Double Stage PE Plastic Pelletizing Machine with PLC Control System 0

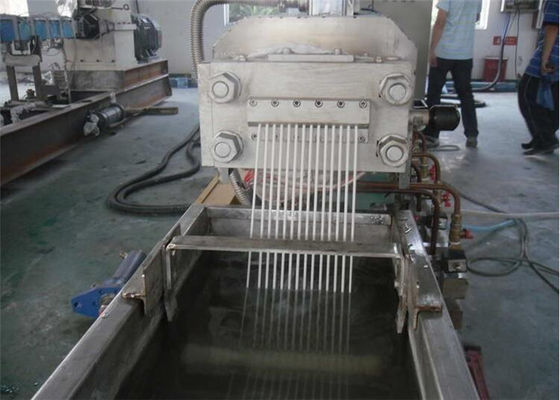

Single Screw Double Stage PE Plastic Pelletizing Machine with PLC Control System 1
