Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Screw Design: | Double Screw | Voltage: | 380V 50HZ |
| Power: | 22kw | Plastic Processed: | PVC |
| Automatic Grade: | Fully Automatic | After-sales Service: | Engineer Availiable To Service |
| Warranty Time: | 1 Year | Place Of Original: | China |
| High Light: | 63MM Pvc Pipe Production Line,22kw Pvc Pipe Production Line,6m/Min Pvc Pipe Production Line |
||
Plastic Pvc Pipe Extrusion Line , Pvc One out of Two Plasitc Pipe Machinery
Brief introduction:
1.Our PVC pipe extrusion machine has features of low consumption, high output, stable running etc.
2.The standard PVC pipe extrusion machine include: material charger, SJZ series conic twin screw
extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker.
3.Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.
4.The main electrics for PVC pipe extrusion machine only adopt Siemens motor, siemens contactor,
ABB inverter, Omron temperature meter.
5.All of our PVC pipe extrusion machine will be tested before delivery, and we will invite our cients to
come and testing the whole line with us together.
Description of pvc pipe production line:
1.16-40mm PVC 2 pipe production line with SJSZ51/105 or SJSZ55/120 or SJSZ65/132 conical twin screw extruder as main extruder,
equip with GF series auxiliary machinery, specially designed for PVC pipe(UPVC,CPVC share machines), is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc .
2.The line is conical twin screw extruder equipped with double single-control stainless steel vacuum spraying calibration, it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double hauling off machine ane cutting machine are combined with the front double calibration technology to make operation more flexible.
TECHNICAL PARAMETER of PVC pipe making machine :
| model | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 |
| pipe dia (mm) | φ16-φ63 | φ75-φ160 | φ125-φ250 | φ180-φ315 | φ200-φ450 | φ355-φ630 |
| vacuum tank length(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Vacuum degree (Mpa) | -0.03-0.08 | -0.03-0.08 | -0.03-0.08 | -0.03-0.08 | -0.03-0.08 | -0.03-0.08 |
| Max.traction (N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
|
hauling speed(m
min/max) |
10 | 6 | 4 | 3 | 2 | 1.4 |
| working hauling length(mm) | 1000 | 1500 | 1500 | 1500 | 1800 | 1600 |
| compressed air (m3/h) | 0.4 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
| water comsuption (m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Total length of line (m) | 20 | 22 | 30 | 30 | 36 | 42 |
Application:
Products are widely used in residential, shopping malls, hospitals, stadiums and villages, such as water supply, drainage, electrical wiring layout of the pipe production field.

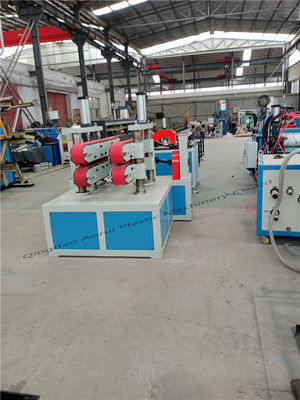

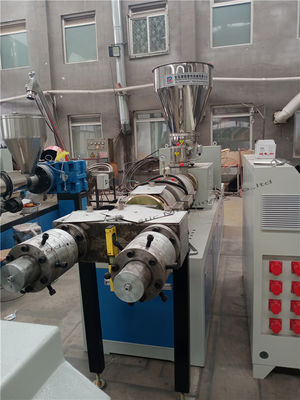

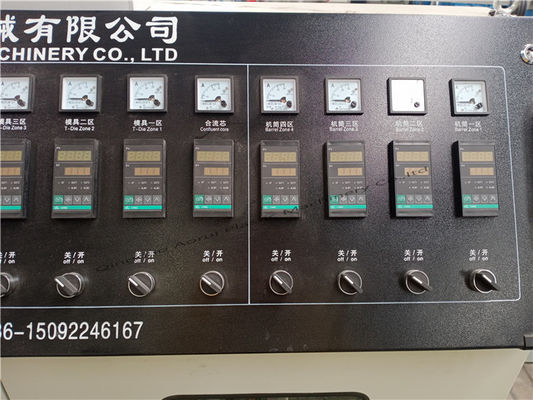

Machine display:
