Plastic Pipe Extrusion Line
Created with Pixso.

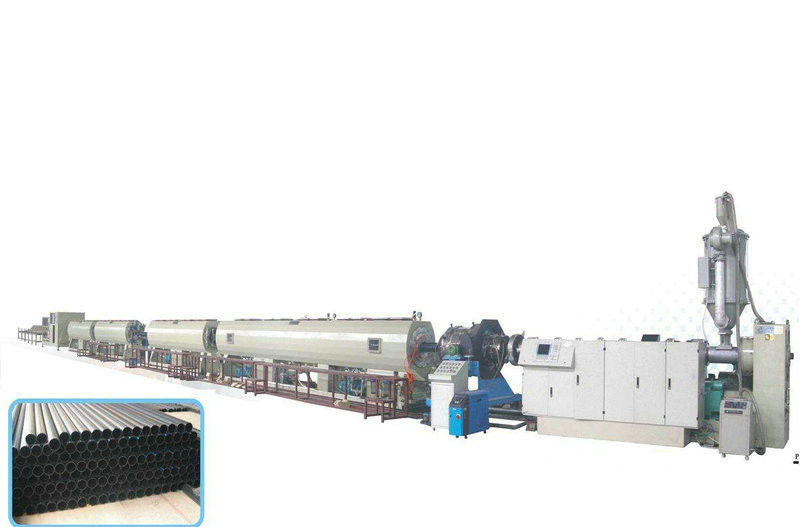

HDPE Drain Pipe Extrusion Line , Single Screw Extrusion Machine

HDPE Drain Pipe Extrusion Line , Single Screw Extrusion Machine

Brand Name: AORUI
Model Number: SJ65/30
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA ISO9001
Plastic Processed:
PE
Power:
1-55KW
Voltage:
380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ
Capacity:
120-1200kg/h
Type:
Plastic Production Line, Plastic Extrusion Line
Screw Design:
Single Screw
Automatic Grade:
Full Automatic
Application:
Pipe
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

plastic pipe extruder machine

,

plastic pipe production line

Product Description



HDPE Drain Pipe Extrusion Line , Single Screw Extrusion Machine



Quick detail:



  Type:pipe machine

  Pipe material:  PE

  Application :  drain pipe

  Place of origin:  China

  Power :  1-55KW

  Output: 120-1200kg/h

  Warranty:   one year

  Application:water/gas supply, drainage

  Dia of pipe : 16-1600mm

  After-sales Service Provided: Engineers available to service machinery overseas

  mould: change molds to produce different pipe products.

  Minimum order: one set

  certification: CE,CSA,UL,ISO9001

  port: Qingdao port

  voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.

  Process type: extruding machine





Description:



Raw material+master batches → mixing →vacuum feeding → material dryness →single screw extruder →

four-color string extruder → basket0style mould → calibrator →spray vacuum calibration tank → spray

vacuum calibration tank →spray cooling water tank→ spray cooling water tank → color-ribbon printer →

belt haul-off → planet cutter → pipe rack →finished product inspecting &packing



Large diameter HDPE pipe extrusion machine


1.Super quality and competitive price


2.With a variety of models


3.high yield





Applications:



Drain pipe





Specifications:



model

PE,PP ,PVC 63

PE,PP,PVC110

pipe range(mm)

20-63

63-110

capacity(kg/h)

   100

150-200

center height(mm)

1000

1000







single screw

extruder

extruder model

SJ65

SJ90



screw diameter(mm)

65

90



L/D

 28:1

33:1



Screw rotation speed(rmp)

  80

100



motor power(kw)

  22

55



heating power(kw)

 16

36



coolin blower power(kw)

0.75

0.75





vacuum calibration tank

length of calibration case(mm)

6000

 6000*2



vacuum degree(mpa)

0-0.1

0-0.1



absorbing gas speed(m3/h)

60

 60*2



water pump power(kw)

4

  4



longitudinal moving motor power(kw)

1.1

  1.1



 Spray cooling tank

length of spraying tank(mm)

4000-6000

6000-8000



water pump power(kw)

  4

 5.5*2





haul off machine

driving power(kw)

1.5

  2.2



max pull(N)

7000

8000



effctive haul off length(mm)

1200

1500





Pneumatic blade type cutter

blade diameter(mm)

300

350



driving power(kw)

1.1

 1.1



working air pressure(mpa)

0.7-0.7

0.7-0.7



            stacker

length(mm)

6000

6000







Competitive Advantage:



1.good after-service

2.spare parts are free

3.gurantee:one year or according to customer’s requirement.

4.advanced technology and better quality
