Recycled Plastic Pelletizer Twin Screw Extruder , PET Bottle Flakes Granulating Machine

Brand Name:	AORUI
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Capacity:

250-600kg/h

Voltage:

380V/50Hz

Power:

55-185KW

Plastic Processed:

Recycled PET

Screw Design:

Double Screw

Name:

Plastic Granulator, Plastic Recycling Machine, Plastic Pelletizer

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

two screw extruder

twin screw extrusion machine

Product Description

Recycled Plastic Pelletizer Machine , PET Bottle Flakes Granulating Machine

QUICK DETAIL:

Condition : new

Application : granules

Screw design : double screw

Voltage: 380V/50Hz

Guarantee: 1 year

Power:55-185KW

Weight:3-6T

Material: recycled PET

Capacity:250-600kg/h

Line length:14-18m

Frequency: ABB

Temperature control : RKC

Description:

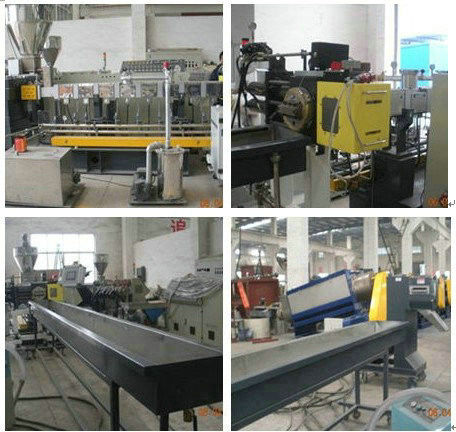

Process

Conveying feeding→metal detector → parallel twin screw extruder → bipolar vacuum exhaust system →

hydralic screen exchanger → material outing mould → water tank → drying system → cutting granulating

unit → storage hopper

PET plastic recycling is generally used in PET bottles like crushing, drying, heating plasticization and

then granulation. After processing the formation of aggregates PET is made for PET related products.

In particular as a greater amount of synthetic textile raw materials. Since PET bottles were large-scale used

in the beverage, tableware, and also because of health and other reasons, it can only use one-time, so

PET bottle recycling equipment has been concerned. General PET bottles from the bottle, bottle trailers,

labels are PE, they also can recovery and granulation.

Our company has developed a new generation of PET bottle-recycling granulator unit successfully. The

machine used all closed. The entire production process is without droplets, no noise. The raw material is

waste PET bottles tables. It has a high yield: SJL 150 produces 300kg/h. it has good quality products: while

particles transparent, good color; low energy consumption.

Applications:

The pellets are widely used in plastic industry, like sheet, and profile production

Recycled Plastic Pelletizer Twin Screw Extruder , PET Bottle Flakes Granulating Machine 0

Recycled Plastic Pelletizer Twin Screw Extruder , PET Bottle Flakes Granulating Machine 2

Specifications:

Model	screw diameter (mm)	L/D	Capacity (kg/h)	Main motor power(kw)	Agglomerator power (kw)	Line length (m)
TSSK65	63	32-62	250-300	75	75	14
TSSK75	72	32-64	300-400	90	90	16
TSSK92	92	62-64	500-600	250	132	18

Competitive Advantage:

1. high precision pelletizing

2. from PET bottles to PET pellets

3. high efficiency cold cutting

4. good after sale service
