Product Details:
|
| Type: | Plastic Production Line, Plastic Extrusion Line | Screw Design: | Single-screw |
|---|---|---|---|
| Application: | Pipe | Plastic Pipe Production Line: | PP PE PPR Materials |
| Certificate: | CE,ISO9001 | Feature: | High Output |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||

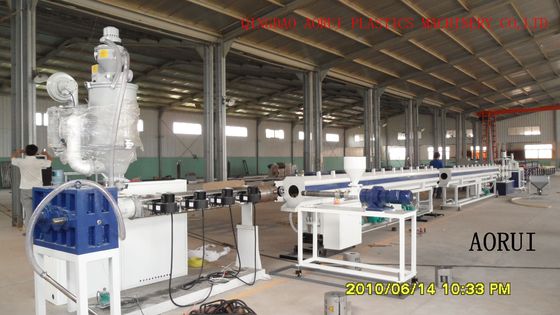

PPR Plastic Cooling and Hot Water Pipe Production Line , PPR Pipe Extrusion Machine
Quick detail:
1. Imported inverter
2. Over ten years experience
3. OMRON temperature controller
4. ISO9001:2000
Description:
High efficiency PP-R,HDPE single pipe and dual-strand pipe production line are widely used in the uptown apartment and village water supply and drainage.
Feature and advantages:
This production line aim at the characteristic of the PP-R and HDPE pipes. This line adopts our own SJ series high efficiency single screw extruder equipped with the Siemens PLC controlling system. It can realize the whole line automatic controlling of high capacity , stable extruding with the suitable changing of different units could realize the production job of PE-RT,PEX ,PB pipe.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||
Applications:
1. Special single screw extruder for polylefin having high extruding velocity and effective plasticization.
2. Advantage technology on the world.
3. May be used to produce HDPE silicon core tube,ordinary PP-R,PE,PEX and PE-RT pipes.
Competitive Advantage:
1. provide the main electrical appliances, spare parts manual and maintenance of books, equipment manuals, and machine maintenance information, provision of equipment, water, electricity, gas and equipment installation plans.
2. Equipment Quality Assurance warranty period of one year.
