Brand Name: | AORUI |
Model Number: | SJ65/33 |
MOQ: | One set |
Price: | Negotiable |
Payment Terms: | T/T L/C |
Supply Ability: | 10 Sets per month |
PET Cotton Bales Strapping Band Machine , PET Strap Band Extruder for Four straps
Quick detail:
1. SIngle sscrew or twin screw technique for option depending on the requirement.
2. 100% recycled flakes can be used for production.
3. Even plasticization and stable extrusion with PC automatic control for the full line, the dosing pump ensures continuous and stable production.
4. The filter of double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.
Description:
Material — Extruder — Mould — Casting —first grade pre-heating —first-grade haul-off —second
grade pre-heating —second grade haul-off — Embossing — third-grade haul-off — Heat forming —fourth
grade haul-off--Winding

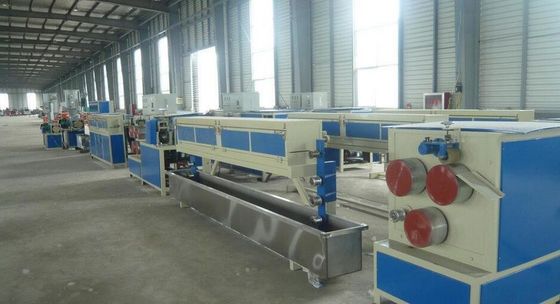

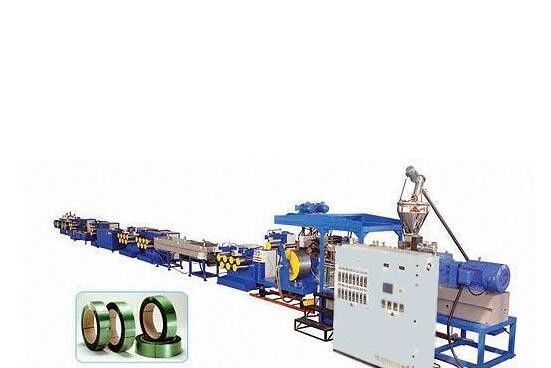

PET Strapping band Production Line
1--The raw material will be dried by the dehumidifier, and the below 40 dew point make the material
humidity less than 40PPM and condensation polymerization;
2--The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order
to made perfect effect of drying;
3--Special designed extruder screw for PET production, bear the better performance of material separating
and mixing. Automatic material feeding provide the smooth environment for the PET strap production.
4--Special designed extrusion die & mould; And the improved screen changer realize non-stop screen
changing, and without material leakage;
5--Water tank cooling the PET strap band. The steady water temperature enhance of the molecular tension
strength;
6--Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage;
7--Dual-station automatic winder, easy operation; We provide our worldwide customer the turn-key project.
We will assist our customer from the installation to the final production of this line. PET strap machine, PET
strap machinery, PET strap plant, PET strap production line, PET strap line, PET strap band making
machine, PET strap making machine, plastic machinery, PET strap production line, PET strap extrusion
line, extruder, plastic extruder, plastic extruders, plastic machine
1. 100%PET recycle material or mixed with raw material
2. Crystal and dehumidify drying system
3. Single screw or parallel double screw extruder
4. The filter of double columns with four working positions can get rid of impurity effectively
5. The dosing pump ensures continuous and stable production 6. Extruding one strap or double straps
7. Breaking strength>10000N
8. Single or double strap extrusion
Technological parameter:
Strapping diameter |
6-32mm |
Screw diameter |
65 |
L/D |
34:1 |
Screw material |
38CrMoAlA |
Barrel material |
38CrMoAlA |
Barrel heating |
Casting aluminum |
Barrel cooling |
Water |
Driving motor |
37kw |
Cooling tank length |
1200mm |
Seven Pre-heating roller |
Dia. 215mm |
Stretch oven |
Carbon Steel welding |
Heating power |
15kw |
Five stretch roller |
Dia. 215mm |
Three cooling roller |
Dia. 215mm |
Calibrating box length |
4000mm |
Three roller pulling |
Dia. 215mm |
Winding unit |
Automatic winding |
Total installation power |
~105kw |
Machine dimension |
38000x1300x28000mm |
Weight |
18ton |
Application :
It’s mainly used for strapping items
Competitive Advantage:
1.100%recycle material
2.strong vacuum system to dispense with dehumidify and dry
3.the recycle material consumption is low
