Product Details:
|
| Place Of Origin: | Shandong , China(Mainland) | Color: | Blue , Yellow , White Or According To Customer's Requirement |
|---|---|---|---|
| Application: | Strap | Certificate: | CE & ISO9001 |
| Inverter: | ABB | Voltage: | 380V 50HZ |
| Power: | 37kw | Weight: | 4T |
| High Light: | Strap Making Machine,Automatic Strapping Machine |
||

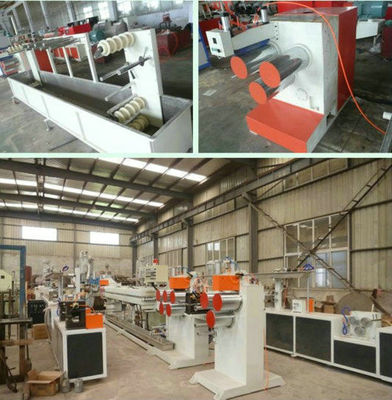

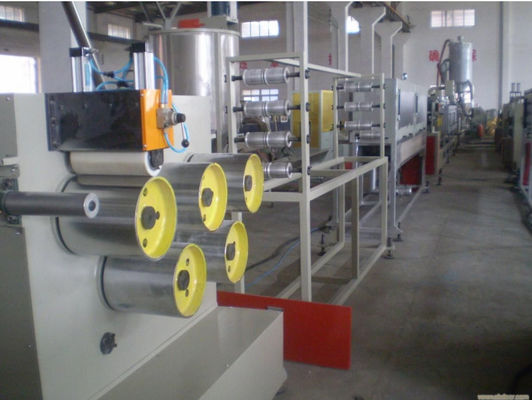

Strapping Band Machine / Strapping Band Extrusion Line / Plastic Strapping Making Machine
Quick detail:
1. capacity:80-170kg/h
2.raw material: PP granules/recycled PP material
3.extruder:single screw extruder
4.product specification:9-25mm (width) 0.6-1.2mm(thickness) or customized
Description:
1. It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic recycling machine, pp strap making machine, plastic strap extruder line, pp strapping band production and pet recycling line, plastic washing and recycling line.
2. PET band strapping machine is applicable to used in metallurgy,
steel, building materials, etc. PET band strapping machine is suitable for all kinds of PET plastic belt. constrictive, adhesive, cut at one time to complete, easy operation.
3. As per different requirements, changing A coating materials for make strap have better and special function. For example, the strap for packing cotton, can be from enhancing the breaking strength and joint strength when welding strap.
Melt filter with two pistons with air venting design and backflusing.
Technological parameter:
|
Strapping diameter |
6-32mm |
|
Screw diameter |
65 |
|
L/D |
34:1 |
|
Screw material |
38CrMoAlA |
|
Barrel material |
38CrMoAlA |
|
Barrel heating |
Casting aluminum |
|
Barrel cooling |
Water |
|
Driving motor |
37kw |
|
Cooling tank length |
1200mm |
|
Seven Pre-heating roller |
Dia. 215mm |
|
Stretch oven |
Carbon Steel welding |
|
Heating power |
15kw |
|
Five stretch roller |
Dia. 215mm |
|
Three cooling roller |
Dia. 215mm |
|
Calibrating box length |
4000mm |
|
Three roller pulling |
Dia. 215mm |
|
Winding unit |
Automatic winding |
|
Total installation power |
~105kw |
|
Machine dimension |
38000x1300x28000mm |
|
Weight |
18ton |
Application :

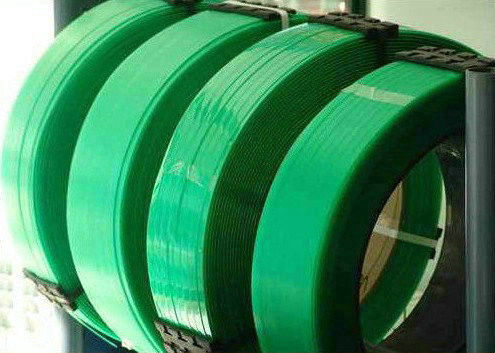

PET/PP strap is known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; is replaced by a new high-strength steel strapping, is the worlds most widely used for steel products.
Competitive Advantage:
1. Best quality and reasonable price
2. good pre-sales and after-sales service
3. easy to operate
