Product Details:
|
| Screw Design: | Single Screw | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Voltage: | 380V 50HZ | Type: | Binding Profile Making Machine |
| Raw Material: | PVC | Certificate: | CE & ISO9001 |
| Temperature Controller: | Omron | Frequency Control: | ABB |
| Highlight: | Plastic Profile Production Line,Plastic Profile Extruder |
||
Plastic Profile Machine , pvc Binding Profile Machine, Profile Production Line
Quick detail:
1. Process flow:

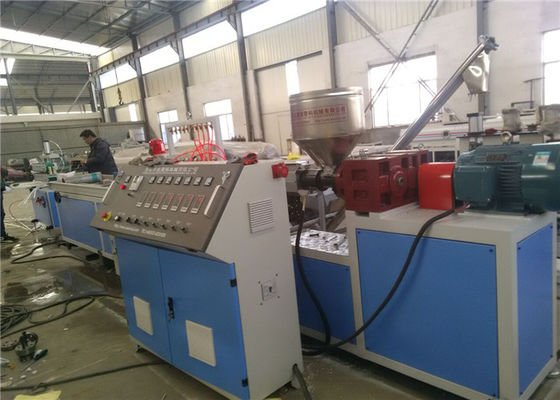

Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
2. PVC Profile Line / PVC profile extrusion line / PVC profile extrusion/ window profile/ PVC profile extrusion/ PVC profile extrusion line/ PVC profile production line/ PVC profile machinery
Description:
1. Equipment list for wpc profile machine, wood plastic profiles extrusion line, wpc profiles production line
PP PE PVC WPC Profiles Extrusion Line- wood plastic composite wpc profile manufacturing machine

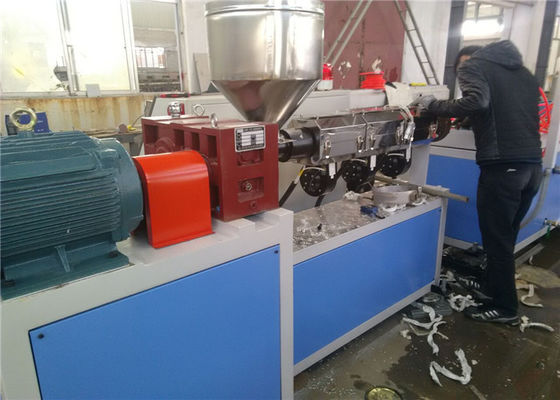

3.1 Twin Screw Extruder SJSZ-65/132
3.2 Extrusion die
3.3 Profile moulds

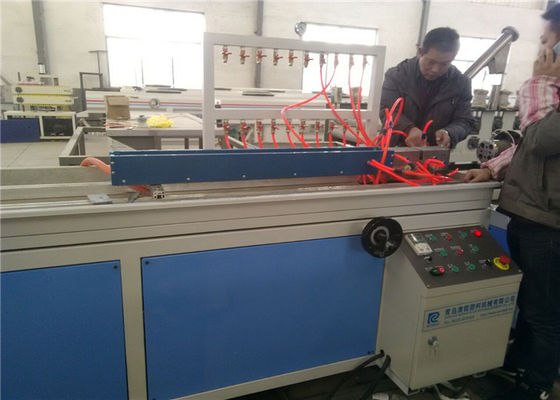

3.4 Vacuum Calibrating Table

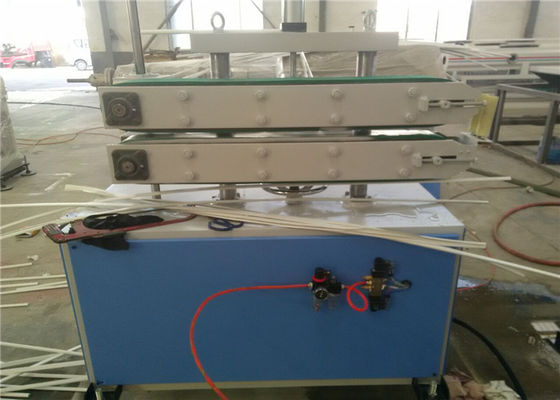

3.5 haul-off machine
3.6 Cutting machine
3.7 Tilting table
3.8 Electrical control cabinet
2. Features:
a . This machine is made up of bending and shaping worktable, oil-heating tank, board rod, shaping belt and filling belt.
b. Profile filled with filling belts, softened in the heating tank with silicone oil, bent to arch as required.
c. Shaping belts and filling belts are special for different profiles.
d. Operate and maintain easily and conveniently.
e. Profile can be bent to any arch shape; Be bent to semicircle from diam. 500mm to 1800mm
Applications:
YF Series PVC profiles extrusion line is mainly used in PVC plastic steel doors and windows profile,window panels, perforated pipe threading and foam profile extrusion products. The production line according to the different requirements of customers and cross-sectional shape of the mold, you can choose the most suitable twin-screw extruder , and equipped with the appropriate vacuum form-ing . Cuttting and other auxiliary traction.
Specifications:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 | YF1200 |
| Max.width of board(mm) | 180 | 240 | 300 | 600 | 900 | 1200 |
| Drawing height(mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Drawing height(mm) | 2 | 2 | 2 | 30 | 40 | 50 |
| Drawing speed(KN) | 2 | 2 | 2 | 30 | 40 | 50 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 | 45 |
| Cooling water consume | 6 | 6 | 6 | 9 | 12 | 15 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
