Product Details:
|
| Model Number: | SJSZ80/156 | Port: | Qingdao |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Motor: | Siemens |
| Condition: | New | Trade Mark: | Aorui |
| High Light: | wood plastic composite extrusion machine,wpc profile extrusion line |
||

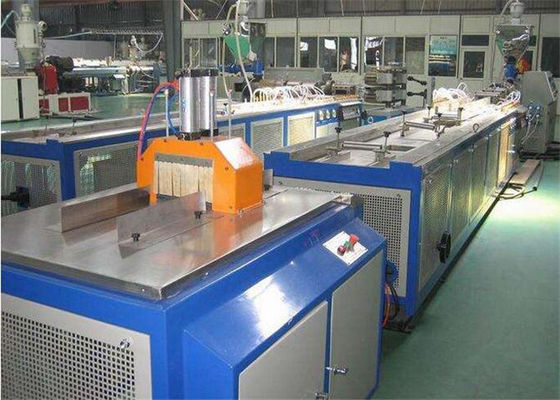

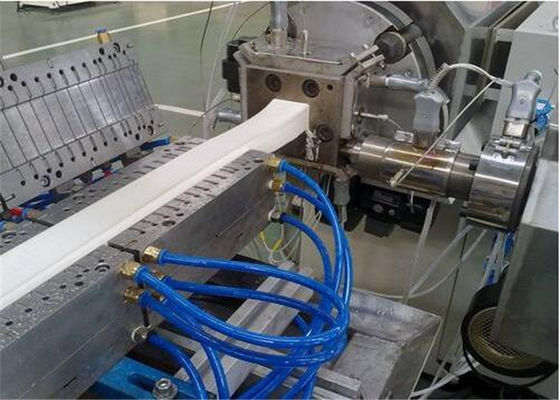

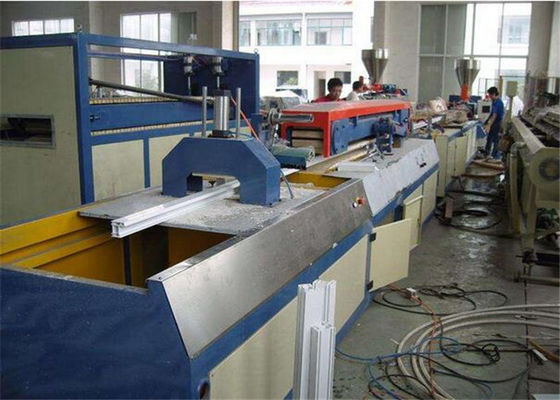

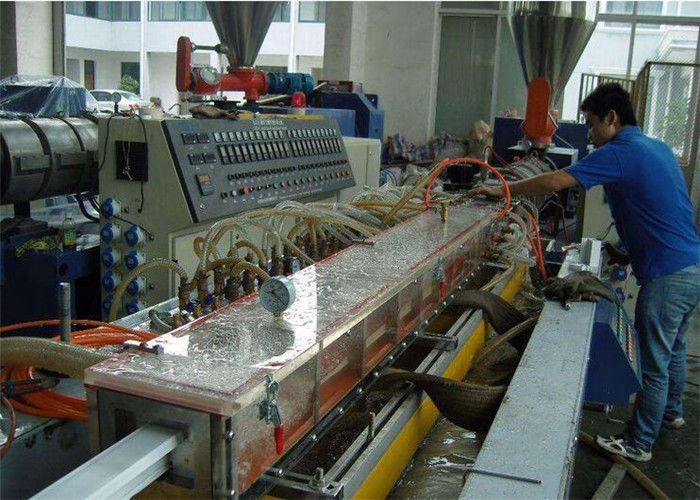

Plastic WPC Profile Production Line / Wood Plastic Profile Extrusion Machines
Quick detail:
Features
1. Reliable screw core cycle temperature control system ensures quality when producting different products.
2. Traction pressure can be adjusted freely. Powerful traction meet high quality profiles production needs. Traction and traction speed adopts remote control to make operation simple.
3. Unique horizontal blade feeding to ensure high quality incision and special alloys blads can ensure the quality of cutting surface.
4. Cutting extrusion synchronous devices can ensure cutting smoothly, and power dust collection ensure environmental protection.
Description:
1. Application:
To produce outdoor landscape profiles, such as decking (flooring), railing, fencing, wall siding, pallet, partition board, etc.
2. Advantages:
1.Designed according to characteristics of wood and PE/PP, professional manufacturing, and stable function.
2.Able to save 40% energy compared to two step machines.
3. Less area covered and less investment on fixed assets.
4.Less workers needed to operate the machines.
5.Less times of plastic processing, to reduce loss of plastic and avoid degrading its performance.
6.Able to expel moisture and gas easily because of several vents designed.
7.Long time of using time (7200hrs at least).
Specifications:
|
Equipment Type |
Output(KG/H) |
Total Power (KW) |
L/D Ratio |
Screw Rotary Speed(R/Min) |
Outline Dimension (MM) |
Total Weight (KG) |
| SWMSY-1 | 40-60 | 71 | 10-32 | 30-80 | 11000*1050*2400 | 4900 |
| SWMSY-2 | 70-150 | 115.5 | 10-32 | 30-80 | 19300*2000*2900 | 7000 |
| SWMSY-3 | 90-180 | 143 | 10-32 | 30-80 | 20000*2200*3100 | 8000 |
Competitive Advantage:
