Product Details:
|
| Warranty: | 1 Year | Contactor: | Siemens |
|---|---|---|---|
| Place Of Original: | Shandong , China | After-sales Service: | Engineers Availiable To Service |
| Temperature Controller: | Omron | Certificate: | CE ISO9001 |
| Machine Weight: | 12T | ||
| High Light: | wpc profile extrusion line,wood plastic machine |
||
Window Door PVC Profile Extrusion Line , Plastic Profile Production Line
WPC Profile Extrusion Production Line / PVC Window Door Profile Making Machine / Plastic Profile Extruder
Quick detail:
1. PVC plastic profile machine mainly use PVC, UPVC as raw materials, production of various kinds of plastic doors and Windows profiles (plastic profiles, decorative profiles electric cable trunk,window profile,ceiling board), etc.

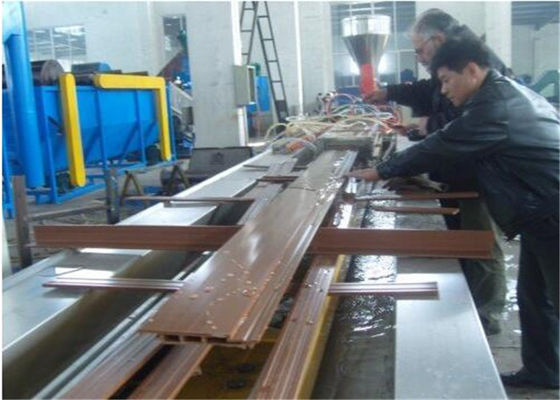

2. In addition,the machine can produce PE, PP or PVC woodplastic profile products (the raw material is:Wood flour and add the amount of plant fiber high (up to 50-75%),mainly is used for trays, box board, flooring, outdoor decorative materials, use very extensive.
Description:
1. plastic profile extrusion line is mainly used for producing plastic profiles, such as PVC door and window profile, imitatednarbled profiles, WPC profiles, wide door profiles, window sills and multihole conduit pipes(for example the four holes, six holes, seven holds, nine holds conduit pipes).

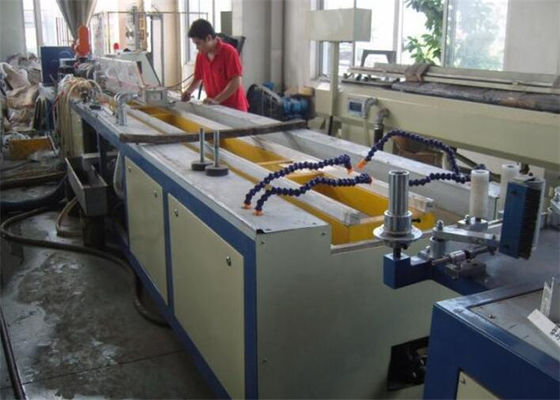

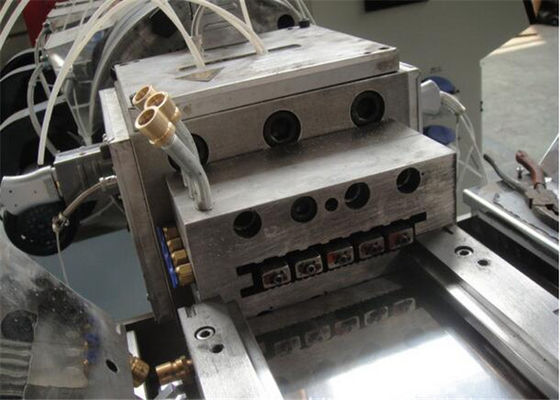

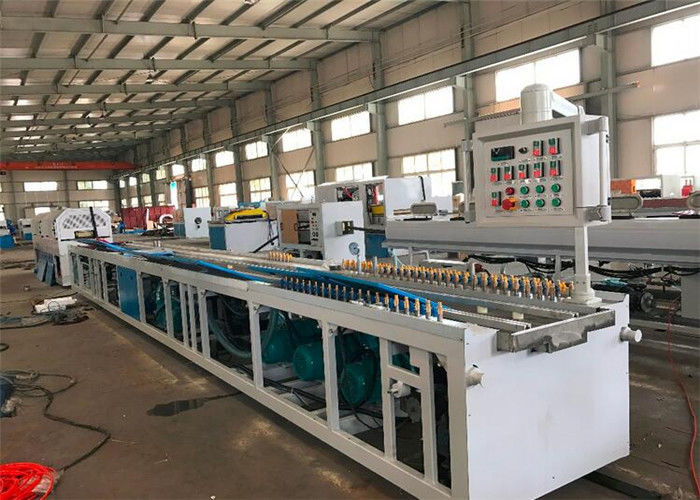

2. According to the different cross section of profiles and the moulds, a different model of twin-screw extruder will be chosen, mating corresponding the vacuum forming table, haul off machine, cutter and stacker. All og them consist of a particular plastic profileextrusion line. The capacity of extruder could be selected from 60kg/h up yo 700kg/h. Haul off machine adopts the unipuefluctuation technology, which remains the stable work, good reliability and strong traction.
3. This PVC window profile extrusion line is designed for extrusion of PVC plastic door's and window's profiles and cross-section communication cable pipes, Aluminum-plastic composite profiles, etc. It has stable plastification, high output, low sheering force, long life service and other advantages. PVC profiles can be used in the building industry and home or office.
Specifications:
| odel | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 | YF800 |
| Max. width of product(mm) | 180 | 240 | 300 | 400 | 500 | 600 | 800 |
| Extruder model | SJSZ55/113 | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJZ80/156 | SJZ80/156 |
| Max. extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 360 | 360 | 360 |
| Extruder power(kw) | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 | 55 |
| Cooling water(M3/h) | 5 | 7 | 7 | 8 | 10 | 12 | 13 |
| Compressed air(M3/min) | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | 0.3 |
Competitive Advantage:
