Home ProductsWPC Profile Production Line

Wood Plastic Composite Production Line , Wpc Extrusion Machine Twin screw extruder

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

Wood Plastic Composite Production Line , Wpc Extrusion Machine Twin screw extruder

China Wood Plastic Composite Production Line , Wpc Extrusion Machine Twin screw extruder supplier
Wood Plastic Composite Production Line , Wpc Extrusion Machine Twin screw extruder supplier Wood Plastic Composite Production Line , Wpc Extrusion Machine Twin screw extruder supplier Wood Plastic Composite Production Line , Wpc Extrusion Machine Twin screw extruder supplier

Large Image :  Wood Plastic Composite Production Line , Wpc Extrusion Machine Twin screw extruder

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter
Contact Now
Detailed Product Description
Raw Material: WPC PVC After-sales Service: Engineers Availiable To Service
Voltage: 380V 50HZ Automatic Grade: Fully Automatic
Application: Profile Type Of Extruder: Twin Screw Extruder
Brand Name: Aorui Warranty: 1 Year

WPC PVC Wood Composite Profile Production Line , PVC Door Plastic Profile Extrusion Process





Quick detail:



1. The line adopts special designed barrel and screw, mould and working crafts to produce wood plastic composite products, simplified as WPC products. The extruder is of two steps mixing extruding or make the wood and plastic into pellets first, then use extruder to process; power and space saving, high capacity, stable extruding presser; the pre-heating loader is installed on top of the extruder, it can exhaust the moist remains in the wood power to make sure the extruding section of extruder is full, and guarantee a better plasticization result.



2. The optimal designed screw is of small shear force, which does not easy to shearing the wood fibers and makes the dwell time of material inside the extruder even. The barrel and screw adopts bimetallic treatment, anti-wear and anti-corrosion, extend the service life.











Description:

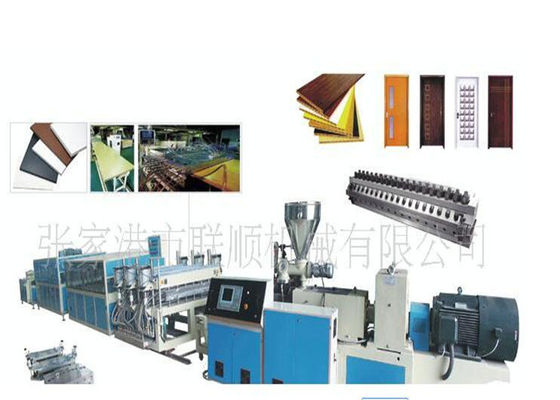

The whole production line includes the following parts:

1.SRL-Z300/600 or SRL-Z200/500 mixing machine

2.Automatic feeding machine

3.SJSZ-65/132 twin screw extruder

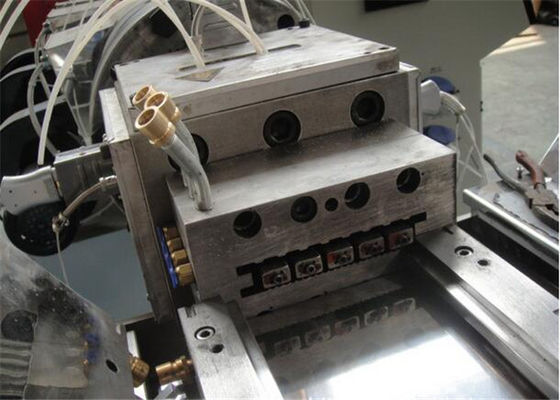

4.profile molds (make according to your requirements)

5.Vacuum cooling shaping table

6.Hauling off machine

8.Cutting machine

9.Automatic Stacker

10.Recycling machine





Advantage and application:

1.the excellent appearance of the natural wood,

2.With the advantages of anti-corrosion, moisture-proof, anti-moth-eaten, no cracking, etc, it is much harder than the pure plastic products and has the similar process-ability as the wood.

3.It can be cut, paint, bonded and fixed with nails or bolts.

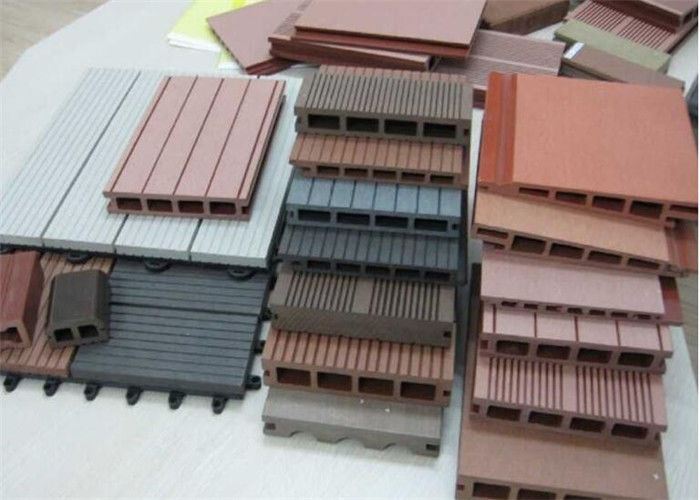

4.The woodplastic foamed board is mainly used in wall panel, decorating plate, construction formwork, kitchen cabinet, cloth cabinet, bath room cabinet, fence, stair handrail, etc.







Specifications:



Model SJZ51/105 SJZ55/100 SJZ65/132 SJZ80/156 SJZ92/188
Screw diameter(mm) 51/105 55/100 65/132 80/156 92/188
Quantity of screw 2 2 2 2 2
Max. rotation speed of screw(r/min) 40 38 38 37 36
Effective length of screw(mm) 1200 1200 1440 1800 2500
Main motor power(kw) 18.5 22 37 55 110
Productuion capacity(kg/h) 100 150 250 400 750
Center height(mm) 1000 1000 1000 1100 1200









Competitive Advantage:



experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.

Wood Plastic Composite Production Line , Wpc Extrusion Machine Twin screw extruder
