Fully automatic PVC WPC Plastic Profile Extrusion Line Wood Plastic Composite Machinery

China Fully automatic PVC WPC Plastic Profile Extrusion Line Wood Plastic Composite Machinery supplier
Fully automatic PVC WPC Plastic Profile Extrusion Line Wood Plastic Composite Machinery supplier Fully automatic PVC WPC Plastic Profile Extrusion Line Wood Plastic Composite Machinery supplier Fully automatic PVC WPC Plastic Profile Extrusion Line Wood Plastic Composite Machinery supplier

Large Image :  Fully automatic PVC WPC Plastic Profile Extrusion Line Wood Plastic Composite Machinery

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ51/105

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter
Contact Now
Detailed Product Description
Place Of Original: Shandong , China Port: Qingdao
Brand Name: Aorui Screw&Barrel Material: 38Cr MoAIA
Automatic Grade: Fully Automatic Certificate: CE ISO9001
Model Number: SJSZ51/105 Condition: New

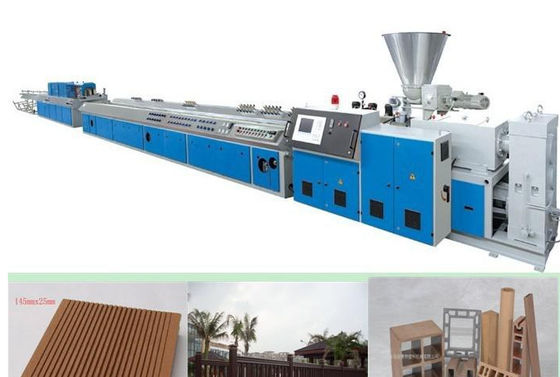

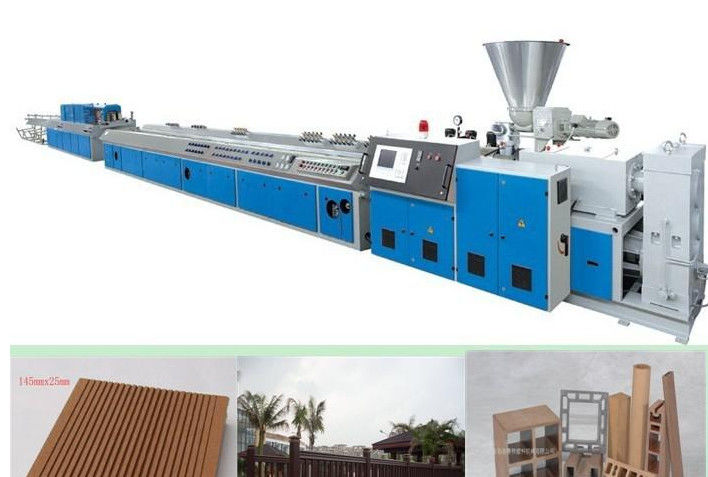

PVC WPC Plastic Profile Extrusion Line / WPC PVC Profile Production Line / Plastic Profile Making Machine





Quick detail:



1. Complete process:



Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum cooling calibration table → belt haul-off → cutter → rack → finished product →Recycling of unqualified products were broken

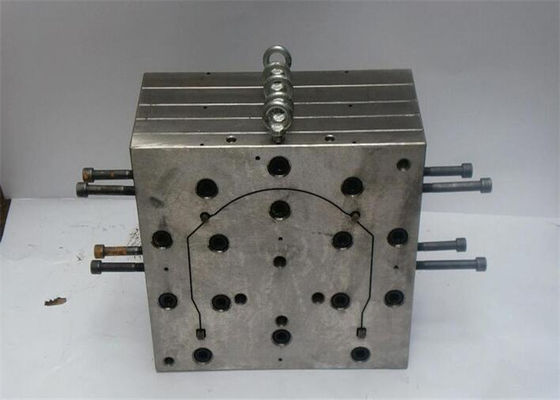

2. CAE extrusion die technology. We have applied CAE tools to make high speed and high precision dies, including solid, foamed, co-extruded, deck, post, handrail, pallet, window and door profiles, and TPE automotive dies. We have achieved high-speed extrusion with tight tolerances.







Description:



1. The machine line consists of vacuum automatic feeding machine, single screw extruder, dehumidifiers drying hopper die, cooling system roller, convery device, cutting edge system, haul-off machine, cutting machine and stacker.



2. Plastic Ceiling Machine- PVC/WPC Ceiling/ Window Profile Extrusion and Making Machine is applied to produce PVC ceiling panel, PVC wall panel,PVC ceiling tile the hollow board like that. Chang different extruding mould,this machine can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc.



3. Production Flow
PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker







Specifications:



Model YF50 YF108 YF180
Max. width of product (mm) 50 108 180
Extruder Model SJSZ 45/100 SJSZ 45/100 SJSZ 55/110
Total Power (kw) 18 26.1 31.6
Cooling water (m3/h) 5 5 7
Compressed Air (m3/min) 0.5 0.6 0.6









Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
