Product Details:
|
| Brand Name: | Aorui | Raw Material: | WPC |
|---|---|---|---|
| Consition: | New | Certificate: | CE ISO9001 |
| Temperature Controller: | Omron | Warranty Time: | 1 Year |
| Application: | Wpc Profile | Port Of Shipment: | Qingdao |
| High Light: | wood plastic composite extrusion machine,wood plastic machine |
||
WPC Profile Production Line / WPC Wall Panel Profile Extrusion Machine Making Machinery / WPC Profile Plate Extruder
Quick detail:

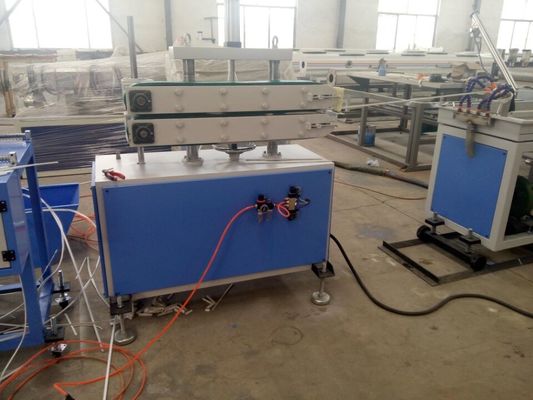

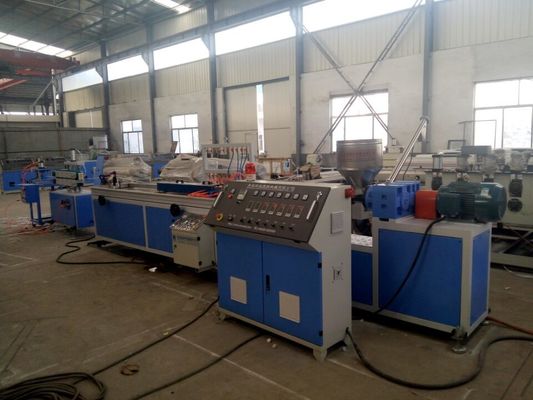

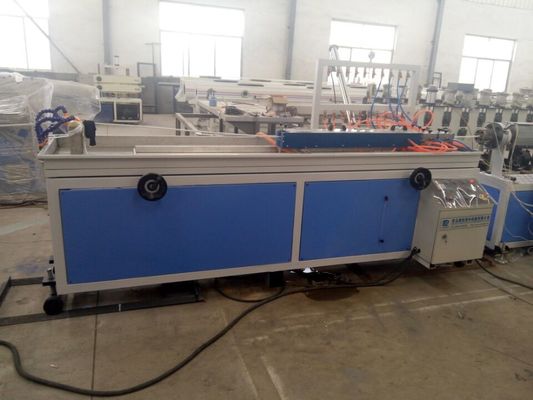

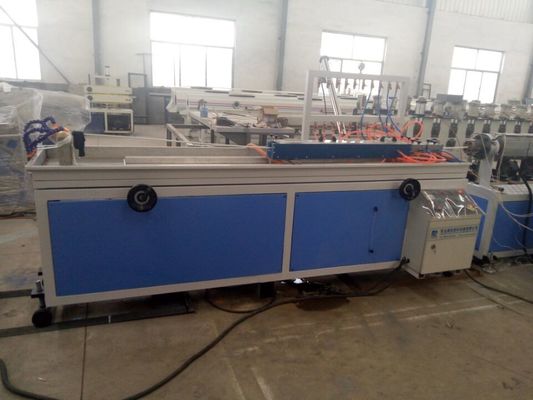

1. Aorui series WPC extrusion line is comprised of screws, barrels, molds, and auxiliary devices like vacuum sizing machine, sawing machine, and stacker.
2. In this line, plastic and waste wood fibers are mixed at a certain proportion, and extruded under high temperature and pressure. This line adopts 2-step extrusion technique, in which conical twin screw extruder or parallel twin screw extruder is utilized for pelletizing, and conical twin/single extruder is adopted to make WPC profiles. It is generally applicable in producing indoor or outdoor floors, fences, trays, among other PE products.
Description:
1. This machine can use the one step extrusion method and also it can use the two step extrusion method alter pelletizing. The two step method can save the power and space, and the two step extrusion method features the machine can gain the high output and stable extrusion pressure.
2. A pre-heating feeder is mounted on the top of the extruder which extracts the humdity from the wood powder, so that the feeding section of the extruder can be filled with enough material and the plastification effect will be better. Special and well designed screw enables the raw material to be evewnly stay in the extruder. The screws and barrel are bi-metallic treated, more wearable and anti-corrosion.
3. Working flow:
Mixer (wooden powder + PE powder +other additives) → WPC (PE) granules production line (Co-rotating Twin Screw Extruder)→ WPC (PE) granules → WPC products production line (conical twin screw extruder → mold → vacuum calibrator → fixed length cutting → stacker) → finished products → qualified products → surface treatment → packing → storing
Specifications:
| Max. profile width(mm) | Extruder model | Designed capacity(kg/h) | Extruder motor power(kw) |
| 180 | 51/105 or 55/110 | 80-120/120-150 | 18.5/22 |
| 240 | 65/132 | 175-250 | 37 |
| 300 | 65/132 | 175-250 | 37 |
| 400 | 65/132 or 80/156 | 175-250/250-350 | 37/55 |
| 600 | 65/132 or 80/156 | 175-250/250-350 | 37/55 |
| 800 | 80/156 | 280-350 | 55 |
