Product Details:
|
| Raw Material: | PVC/UPVC/CPVC | Process: | Extrusion |
|---|---|---|---|
| Capacity: | 80-180KG/H,150-250KG/H,150-350KG/H,200-360KG/H,400-600KG/H | Type: | Plastic Production Line, Plastic Extrusion Line |
| Screw Design: | Twin Screw | Automatic Grade: | Full Automatic |
| Certificate: | CE,ISO9001 | ||
| High Light: | double screw extruder,two screw extruder |
||
PVC Pipe Twin Screw Extruder For Cable Coating , CPVC Pipe Machinery for Drainage
Quick detail:
1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Description:

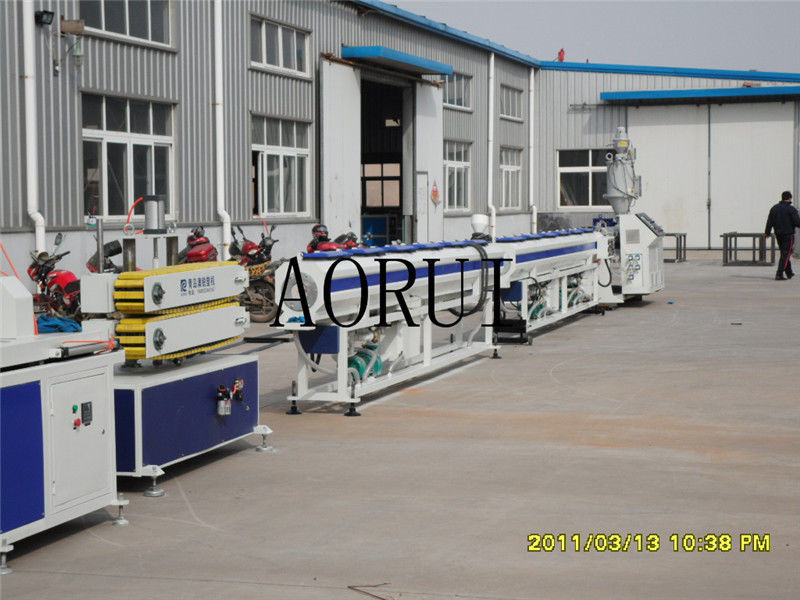

plastic PVC pipes with various diameters and wall thickness used in the industries such as agriculture and constructional plumbing, cable laying etc. This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off, cutter, stake and etc.
The extruder and haul-off adopt imported AC frequency speed controller, vacuum pump and haul-off motor all adopt superior products. The haul-off method has two-claw, three-claw, four-claw, six-claw and etc. You may choose saw blade cutting type or planetary cutting type. It is additionally attached with length counter and intensifying device.
This line is of reliable performance and high production efficiency. Our company can also manufacture special pipe production lines, e.g. Spiral silencing pipe and core foaming pipe according to your requirements
Specifications:
PVC pipe machine Line list
|
Pipe Range |
16-40mm (double) |
20-110mm |
50-250mm |
160-400mm |
315-630mm |
|
Extruder |
SJZ65/132 Or SJZ51/105 |
SJZ65/132 |
SJZ65/132 Or SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
|
Motor(KW) |
37KW or 18.5KW |
37KW |
37KW Or 55KW |
55KW |
110KW |
|
Capacity(KG/H) |
80-180 |
150-250 |
150-350 |
200-360 |
400-600 |
|
Lineal speed(M/min) |
1-15 |
1-12 |
0.3-6 |
0.2-2 |
0.1-1 |
Applications:
1. High efficiency twin screw extruder.
2. It can produce pvc pipes.
3. mostly used in drain,electrical cable coating and under ground sweage treatment and so on.
Competitive Advantage:
1. high-speed extrusion
2. high technology&competitive price
3. no-dust cutting
4. easy handling
