UPVC Plastic Pipe Double Screw Extruder Machine for Water Supply , CPVC Pipe Extrusion Line


UPVC Plastic Pipe Twin Screw Extruder for Water Supply , CPVC Pipe Extrusion Line


Quick detail:


1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption




Description:

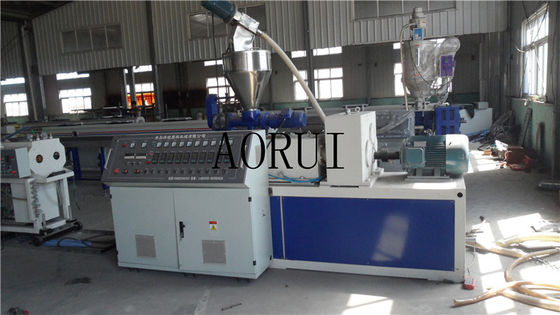

1. extruder: adopting conical twin-screw extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.
2. gearbox: adopting super quality gear box and reducer, with nice  outline, stable running, low noise and long service time.
3. extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4. screw and barrel: screw-core installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.
5. driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.
6. vacuum calibrating tank: with two vacuum chambers which can make sure the perfect roundness of the pipe, spraying water cooling, equipped with temperature controller, realizing automatic discharging the water, the main body of the tank make of stainless steel, long service time.

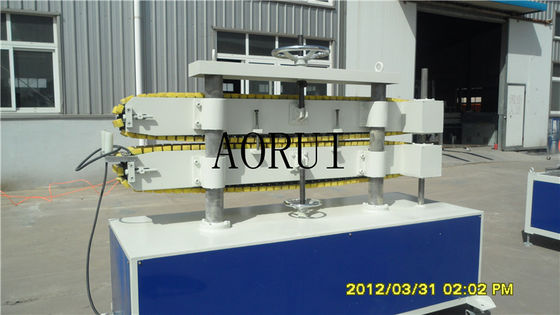

7. haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.
8. cutting unit: saw cutting and planet saw cutting, with dust collection system.
9. staking unit: automatic overturning system, can freely fix the length of the pipe.






Specifications:

  PVC pipe machine Line list




Applications:


1. Installed with imported termo controllers, imported inverters or converters.
2. Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3. For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4. Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.


Competitive Advantage:

1. Offering high quality products ,competitive price.
2. Working with experienced forwarder for safe shipping.
3. Trust-worthy after-sale service.
4. 100% Satisfy your needs with professional staff
