Product Details:
|
| Certification: | CE&ISO9001 | Dimension: | According To Model |
|---|---|---|---|
| After-sales Service: | Engineers Avliable To Serive | Material: | PVC |
| Place Of Origin: | Shandong , China (Mainland) | Screw Design: | Double Screw |
| Voltage: | 380v | Plastic Processed: | PVC |
| High Light: | two screw extruder,twin screw extrusion machine |
||
PVC Plastic Pipe Extrusion Machine , Double Screw PVC Fiber Reinforced Soft Pipe Extruder
Quick detail

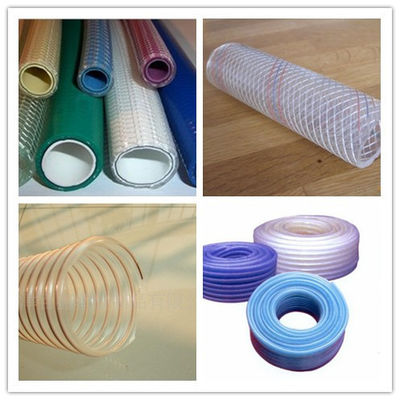

The pvc fiber enhancing soft pipe , also called oridding pipe and anakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid . it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application (solar energy water heater , gas-jar) , also it can be used in irrigating garden and lawn.
Description:

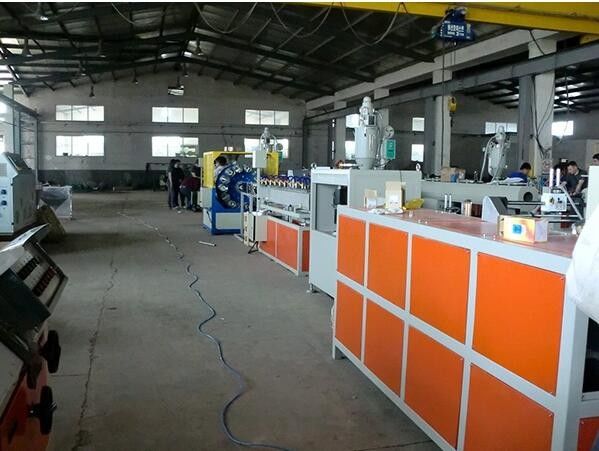

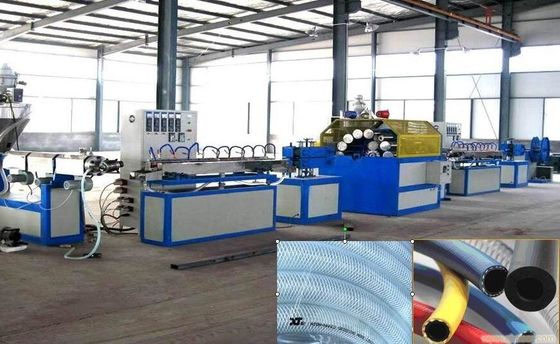

1. PVC pipe production line adopts conical twin screw extruder, pipes good plasticizing, high output
2. Product introduction: Has 20 years of experience in design and manufacture, the use of conical twin screw extruder, pipes good plasticizing, high output. Conical twin-screw extruder:
3. advanced screw design, assure the high speed extrusion of PVC pipe;
4. Reliable temperature control system to ensure that produce high-quality PVC pipes. Mould:
5. Mould: 1, spiral mould make the product quality is better; 2, the internal heating control system, more convenient, more efficient extrusion; 3, precise tin bronze or phosphor bronze sizing set of pipe cooling speed, finalize the design quickly, etc.
6. Spray cooling equipment: 1, equipment center height can be adjusted; 2, water tank length 6 m to 8 m can be effective and efficient cooling.
7. Traction device: 1, accurate pressure control system can adjust the traction; 2, corrosion resistant rubber piece to ensure the quality of the tube.
8. Cutting machine 1, according to the size of the flexible adjustment; 2, low noise, strong drain system.
Main Technical Parameters:
| Extruder Model | SJSZ-51X105 | SJSZ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe Diameter | 16-63mm | 16-63mm |
| Production Speed | 12(m/min) | 12(m/min) |
| Max.Output | 160(kg/h) | 220(kg/h) |
Our advantage:
1. We are factory , we can invite customer to visit our factory to see the machine and test the machine.
2. We have more than 15 years experience
3. If client need , our engineers can go to abroad to install the machine and teat the machine , train the local workers until they can operate the machine.
