Product Details:
|
| Brand Name: | AORUI | Condition: | New |
|---|---|---|---|
| Voltage: | 380v 50hz | Port: | Qingdao |
| Dimension(L*W*H): | According To Model | Raw Material: | PVC |
| Type: | PVC Fiber Reinforced Pipe Making Machine | Place Of Origin: | Shandong , China |
| High Light: | double screw extruder,two screw extruder |
||

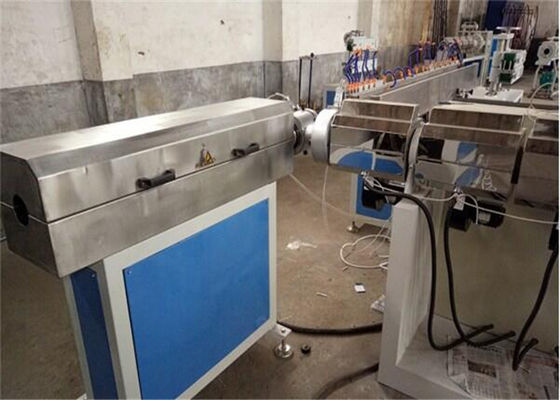

380v PVC Reinforced Pipe Twin Screw Extruder Machine , low noise
Quick detail
1. This line consists of main extruders, water cooling tank, haul off machine, fiber braiding machine, coiler etc., which has reasonable design, unique structure, stable performance, easy operation and maintenance, constant production capacity, warmly welcomed by customers.
2. The pvc fiber reinforced hose making machine , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid , it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application (solar energy water heater , gas-jar) , also it can be used in irrigating garden and lawn.
Description:
1. PVC Fiber Reinforced Soft Pipe Production Line, which is mainly used to convey pressure gas or corrosive gas and liquid. Suitable for conveying the pressure or corrosive gas, liquid. Widely used in the machinery, coal mineral, petroleum. Chemical industry, agriculture irrigation, construction, civil (solar water heater, gas cylinder)etc.
2. The pvc fiber enhancing soft pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid. PVC fiber reinforced hose, also known as PVC network pipe, commonly known as plastic snakeskin tube, suitable for pressure or corrosive gas, liquid transport, widely used in machinery, coal, petroleum, chemicals, agricultural irrigation, building, civil (solar water heaters, gas cylinders) and other fields.
3. The pvc fiber reinforced soft pipe is non-toxic, transparent, pressure resistance, tensile resistance, acid resistance, corrosion resistance, beautiful appearance, soft and lightweight, durable. It adopts high strength fiber and high-quality PVC resin as the material; and applied on compressed air in garages and service stations; factory air lines, pesticide spraying; automation machinery and pneumatic lines, and etc.
.
Main Technical Parameters:
| Extruder Model | SJSZ-51X105 | SJSZ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe Diameter | 16-63mm | 16-63mm |
| Production Speed | 12(m/min) | 12(m/min) |
| Max.Output | 160(kg/h) | 220(kg/h) |
Application:
1.It is really the best choice for conveying air ,water, gas, oil and some other liquid and gas material with its working temperature ranges from-5 to 65.
2.Now also widely used in pouring the garden ,lawn.Suitable for conveying the pressure or corrosive gas, liquid .widely used in the machinery , coal mineral , petroleum .chemical industry ,agriculture irrigation ,construction, civil (solar water heater ,gas cylinder)etc.
3. It is colorful, light, flexible, elastic, portable and with excellent adaptability; made from non-toxic ingredients. The hose has good weather and abrasion resistance and good burst strength, withstands nozzle shut-off. Being widely used for irrigation and washing in the parks, factories and families; gardening, car spray washing and floor cleaning.
Our advantage:
1. we supply all the support , such as engineers , drawings , and instruction manual.
2. we could supply trun key project to you. fast develivery time , and good quality.
3. Good quality and service , our engineers availiable to service , if clients need , our engineers can train the local workers until they can operate the machine.
