Product Details:
|
| Condition: | New | Screw Design: | Double Screw |
|---|---|---|---|
| Autoamtic Grade: | Fully Automatic | Voltage: | 380V 50HZ |
| Place Of Origin: | Shandong , China | Certificate: | CE & ISO9001 |
| Color: | White , Black , Yellow Or According To Customer's Requirement | After-sales Service: | Engineers Availiable To Service |
| High Light: | two screw extruder,twin screw extrusion machine |
||

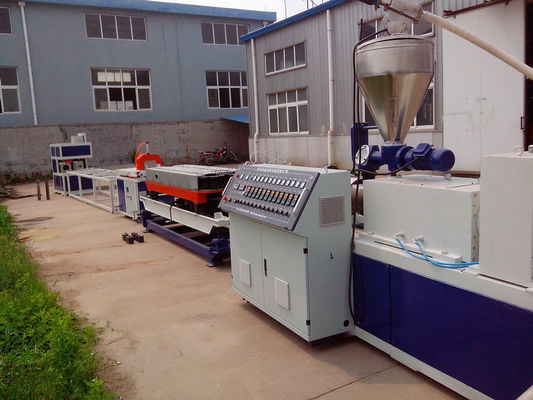

Durability Fully automatic Plastic Two Screw Extruder 380 Voltage
Quick detail:
1. SJZ Conical twin screw extruder is developed and manufactured by our company with even plasticity , steady quality , high production , wide application and durability.
2. This mode of machine can be used to produce pipe , panels and profiles directly from PVC power.
3. There are two types of controlling systerm. One is common type with temperature controllers , and the other is PLC systerm with computer and modules. DC and AC speed regulating methods for driven systerm are availiable at buyer's option.
Description:

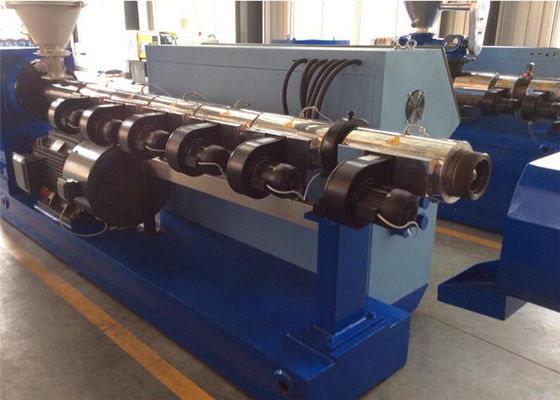

1. Model SJZ twin conical screw extruder is a kind of special equipment for extruding PVC powder. With different sorts of molds and quxiliary machines , it can produce all sorts of pvc plastic pipe material ,profiled material , board material , sheet material , bar material and granulation.
2. The screw has applied oil cooling systerm. Barrel is cooled by special wind cooling systerm. The systerm has applied computer control.According to customer's requirement , most reasonable screw can be made so as to achieve best plasticity state and material quality.

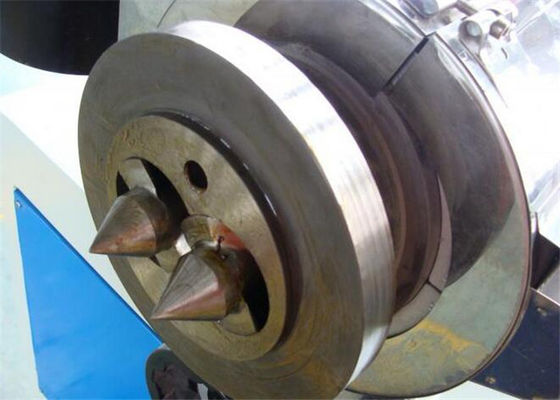

3. The screw made by high precision special digital screw miller; extruding property can highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
4. The distribution box is specially designed, pull force bearing is fully imported , and the drive life span can be prolonged. It can bear larger extruding pressure. The eletrical systerm has mainly applied imported parts , it has multiple alarm systerm, and there are few problems which can be easily eliminated. The cooling systerm has applied special design , heat emission area is enlarged , the cooling is rapid , temperature control tolerance can be +1 or -1.
Specifications:
| Model | SJSZ45/100 | SJSZ51/105 | SJSZ55/120 | SJSZ65/132 | SJSZ80/156 | SJSZ92/188 |
| (kw) Power of drive motor | 15 | 18.5 | 22 | 37 | 55 | 110 |
| (mm) Screw diameter | Φ45/Φ100 | Φ51/Φ105 | Φ55/Φ120 | Φ65/Φ132 | Φ80/Φ156 | Φ92/Φ188 |
| No.of screw | 2 | 2 | 2 | 2 | 2 | 2 |
| Rotational speed | 36 | 36 | 36 | 36 | 36 | 36 |
| Nm Torsional moment of screw | 3148 | 6000 | 7000 | 10000 | 14000 | 32000 |
| PVC Capacity PVC (kg/h)powder |
70 | 100 | 150 | 250 | 400 | 750 |
| Central height | 1000 | 1000 | 1000 | 1000 | 1100 | 1200 |
Applications:
With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation. It can also extrude PP.PE pipe at high speed by changing special barrel.
Competitive Advantage:
1. Good quality and reasonable price
2. CE & ISO9001 certificate
3. engineers availiable to go abroad to service
4. good pre-sales and after-sales service
