Product Details:
|
| Certification: | CE & ISO9001 | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Brand Name: | AORUI |
| Processing Type: | Extrusion Machine | Application: | Profile |
| Port: | QINGDAO | Screw Design: | Double Screw |
| High Light: | wood plastic composite extrusion machine,wpc profile extrusion line |
||

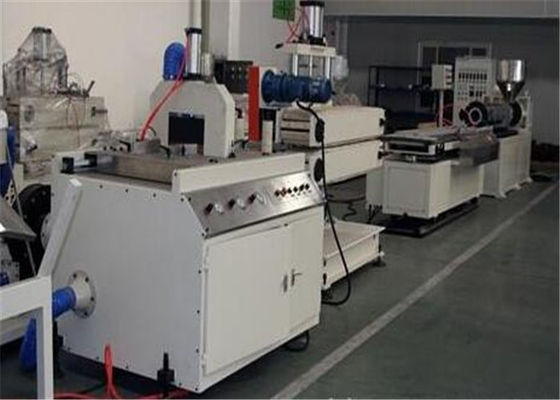

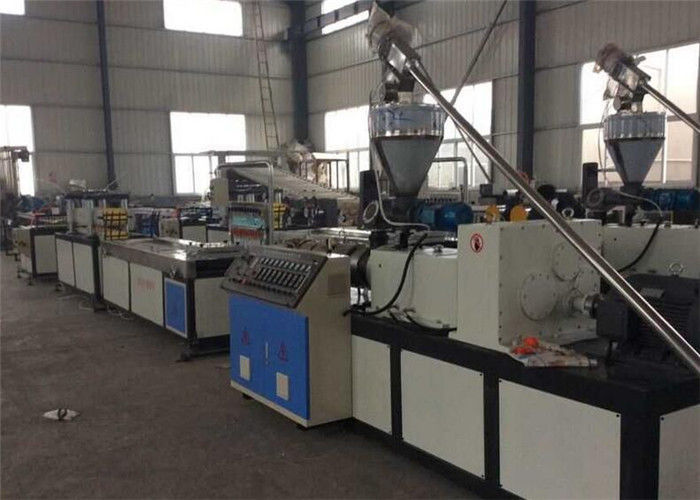

wpc Profile Extrusion Line , WPC Decking Profile Making Machine
Quick detail:
1. Equipped with YE model auxiliary it can produce wooden-plastic profile. It is a new kind of environment protection products which Mix plastic and waste wood fiber in proper proportion, adding plastic processing extender.
2. It can produce, package box plate, frame material for door and window, floor board, outside products extruded in high temperature and high pressure
wood-plastic extruder line. wood-plastic extruding line. wood-plastic production line
Description:
a. Conical twin screw extruder:
Using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.
b. Extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality PVC profiles. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the PVC profiles fast calibrated and cooled.

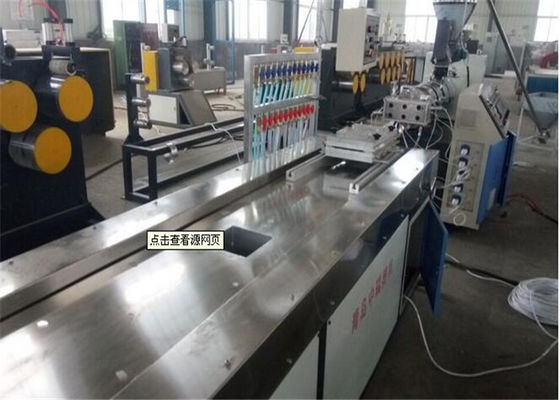

c. Spraying and cooling table:
Rapid vacuum calibrating system allows the hot extruded PVC profiles to be cooled in a very short time and obtain the final size. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the sizing and cooling performance as well as the production speed.
d. Haul off machine:
Adopts caterpillar type suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.
e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.
6. Stacking:
Automatic stacking with fixed length
Specifications:
| Model | YF160 | YF180 | YF240 | YF300 | YF400 | YF500 |
| Max. width of profile(mm) | 160 | 180 | 240 | 300 | 400 | 500 |
| Installed power(Kw) | 18 | 26.1 | 31.6 | 31.6 | 31.6 | 37.6 |
| Cooling water (m3/h) | 5 | 5 | 7 | 7 | 8 | 10 |
| Compressing air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
