16-800mm PVC Pipe Extrusion Machine , CPVC Pipe Production Line

China 16-800mm PVC Pipe Extrusion Machine , CPVC Pipe Production Line supplier
16-800mm PVC Pipe Extrusion Machine , CPVC Pipe Production Line supplier 16-800mm PVC Pipe Extrusion Machine , CPVC Pipe Production Line supplier 16-800mm PVC Pipe Extrusion Machine , CPVC Pipe Production Line supplier

Large Image :  16-800mm PVC Pipe Extrusion Machine , CPVC Pipe Production Line

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Model Number: SJSZ65/132 Raw Material: PVC
Certificate: CE & ISO9001 Inverter: ABB
Using: Water Supply Pipe After-sales Service: Engineers Availiable To Service
Screw Design: Double Screw Warranty: 12 Months

16-800mm PVC Pipe Extrusion Machine , CPVC Pipe Production Line



Quick detail



1. PVC Pipe Machine is our new product designed and developed by ourselves on the basis of bringing in foreign advanced technology and according to practical home situation. PVC rigid pipe has the features of strong rigidity, light weight, convenient construction and so on. It is widely used in the project fields of building, drainage and supply water, cable and so on.

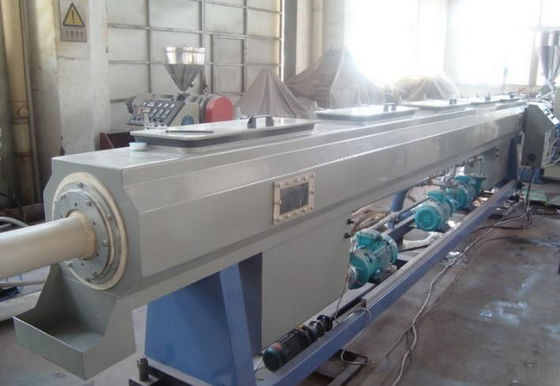

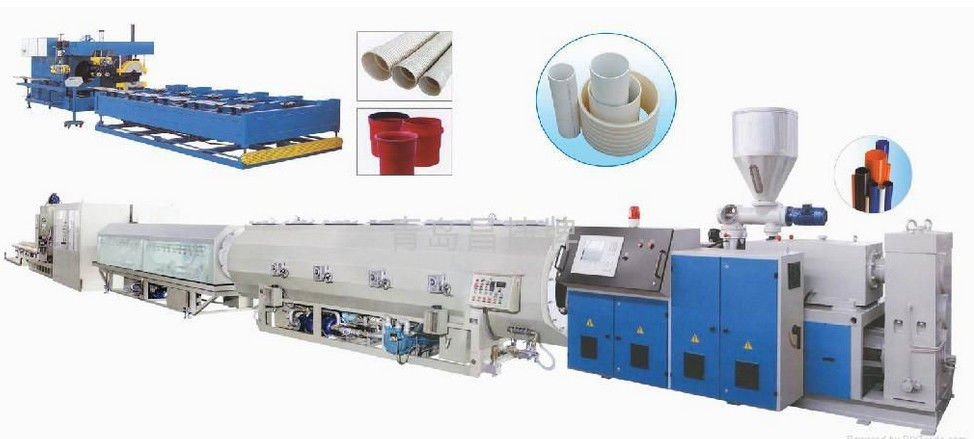

2. The line is composed by conical twin screw extruder, pipe mould, vacuum calibrator, cooling tank, haul-off machine, cutter, stacker, belling machine and so on.





Description:



1. PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing,cable laying etc.



2. With special device , it can produce inner wall sprial pipe, inner wall hollow pipe , and core layer bulpo pipe , etc, it can also produce PP, PE , ABS& PPR , PEX, silicon core pipe and pipe material of other material.



3.The extruder and extractor adopt the imported AC frenquncey control device.The vacuum pump and the main motor adopt the famous brand. The haul-off has many different kinds of Model,such as two-claw, three-claw, four-claw, five-claw, six-claw. About the cutter, you can choose the saw blade cutting type or the planet cutting type.





Main Technical Parameter



Specification GF63 GF110 GF160 GF250 GF400 GF630 GF800
Item

diameter

16-63

diameter 16-110 diameter 32-160 diameter 63-250 diameter 160-400

diameter

315-630

diameter 450-800
Diameter of pipe material 16-63 16-110 32-160 63-250 160-400 315-630 450-800
claw number of drawing machine 2 2 2 3 4 6 8
pulling force 6 8 11 20 30 40 50
drawing speed 15 12 8 9 4 2 2
total power of auxiliary machine 14 14 14 21.5 41 56 64





Application:



PVC Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.





Our competetive advantages:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
