63mm-800mm Diameter Two Screw Extruder / PVC Flexible Pipe Production Line

China 63mm-800mm Diameter Two Screw Extruder / PVC Flexible Pipe Production Line supplier
63mm-800mm Diameter Two Screw Extruder / PVC Flexible Pipe Production Line supplier 63mm-800mm Diameter Two Screw Extruder / PVC Flexible Pipe Production Line supplier 63mm-800mm Diameter Two Screw Extruder / PVC Flexible Pipe Production Line supplier

Large Image :  63mm-800mm Diameter Two Screw Extruder / PVC Flexible Pipe Production Line

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ51/105

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Model Number: SJSZ51/105 Automatic Grade: Fully Automatic
Trade Mark: AORUI Certificate: CE ISO9001
Place Of Original: Shandong , China Warranty: 12 Months
Screw & Barrel Materialmaterial: 38Cr MOAIA Delivery Time: About 35days

63mm-800mm Diameter Plastic PVC Extrusion Line / PVC Flexible Pipe Production Line





Quick detail

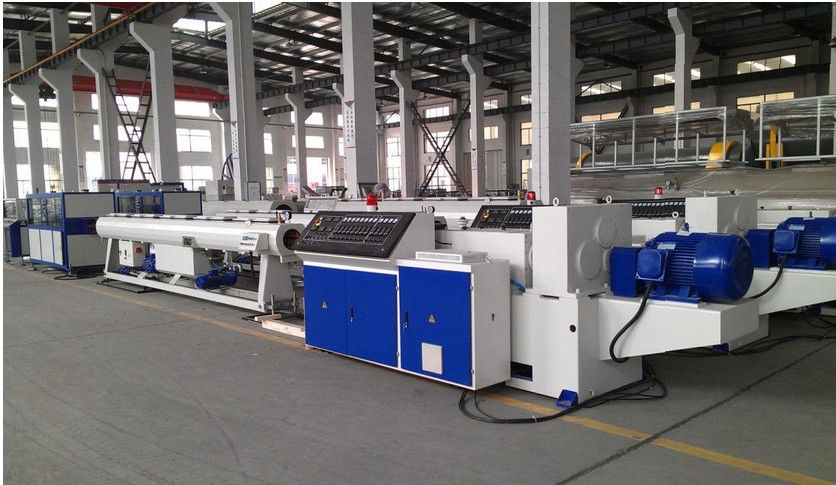

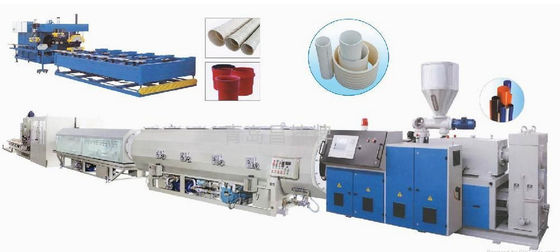

1. This PVC pipe production line is widely used for producing PVC water supply pipe, drainage pipe and high voltage cable protection pipe. With CPVC pipe mold, it could also produce CPVC pipe. It is consist of SJSZ series extruder, mold, vacuum tank,spraying cooling tank, haul-off,cutting machine, stacker, and can produce PVC pipe from mixed powder directly.



2. The production line uses special designed screw and mould, which makes it easy forming, even plasticization, high capacity stable running and easy operation







Description:



1. GF series plastic pipe material production line is mainly used in the area of agricultural water supply systerm,  architectural water supply systerm , pavement of cables , etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.

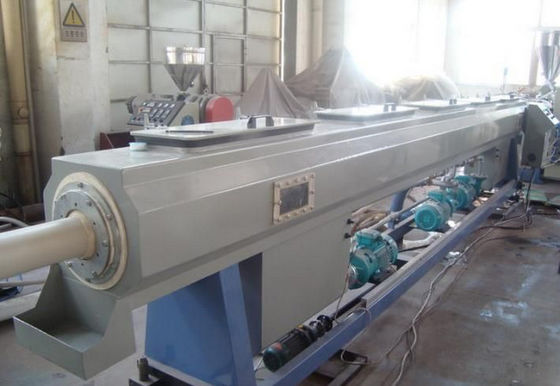

2. The machine group consists mainly of twin conical screws extruder , vacuum calibrating tank,  trctor , haul-off unit , cutting unit , tilter ,etc.



3. Single screw extruder and haul-off unit have applied imported A/C inverter. both vacuum pump and driving motor have applied excellent products.



4. The drawing machine inclides two-claw type, three-claw type , four-claw type, six-claw type , eight-claw type ,etc. Saw cutting or planet cutting can be applied , it is additionally applied with length measuring meter and thickness increasing device, the pproperty of machine group is reliable , the production efficiency is high.



5. With special device,  it can produce inner wall sprial pipe ,inner wall hollow pipe , and core layer bulpo pipe , etc. It can also produce PP, PE,ABS and PPR PEX , silicon core pipe and pipe material of other material. The planet-shaped cutting machine is fully automatic computer digital control , it has such advantages of simple operation , reliable property , etc. It has reached world advanced level.







Main Technical Parameter



Specification GF63 GF110 GF160 GF250 GF400 GF630 GF800
Item

diameter

16-63

diameter 16-110 diameter 32-160 diameter 63-250 diameter 160-400

diameter

315-630

diameter 450-800
Diameter of pipe material 16-63 16-110 32-160 63-250 160-400 315-630 450-800
claw number of drawing machine 2 2 2 3 4 6 8
pulling force 6 8 11 20 30 40 50
drawing speed 15 12 8 9 4 2 2
total power of auxiliary machine 14 14 14 21.5 41 56 64







Application:



1. PVC Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc.



2. PVC pipe making machine can produce variety of PVC pipe for water supply, drainage, cable protection ,etc





Our competetive advantages:



Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
