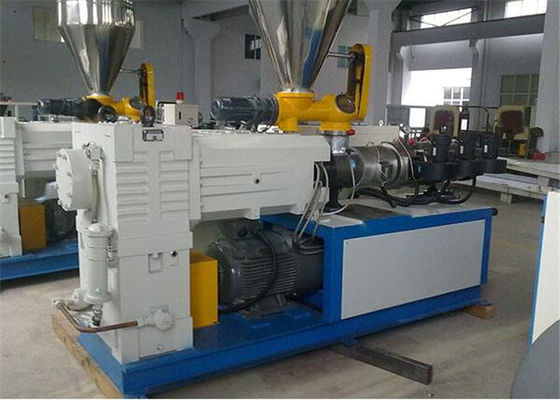

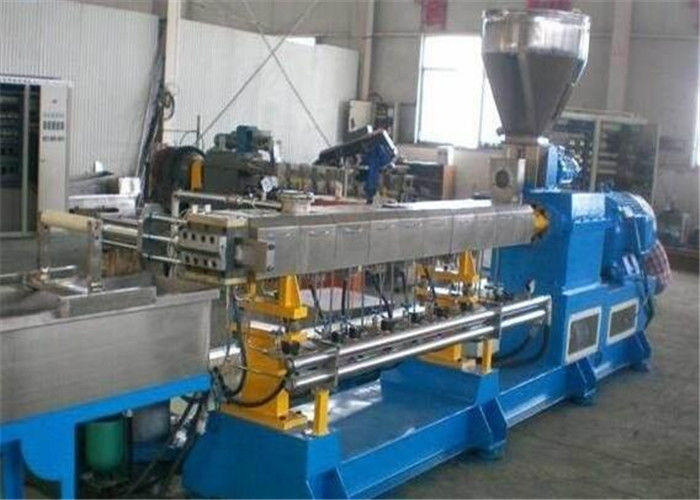

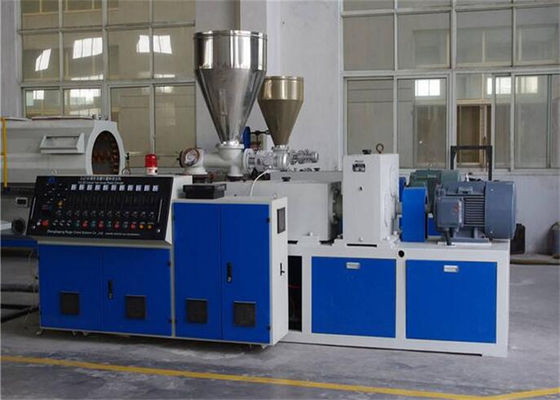

High Capacity PVC UPVC Conical Double Screw Extruder For Pipes / Plates / Sheets

China High Capacity PVC UPVC Conical Double Screw Extruder For Pipes / Plates / Sheets supplier
High Capacity PVC UPVC Conical Double Screw Extruder For Pipes / Plates / Sheets supplier High Capacity PVC UPVC Conical Double Screw Extruder For Pipes / Plates / Sheets supplier High Capacity PVC UPVC Conical Double Screw Extruder For Pipes / Plates / Sheets supplier

Large Image :  High Capacity PVC UPVC Conical Double Screw Extruder For Pipes / Plates / Sheets

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ51/105

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Application: Pipe / Profile Extrusion Condition: New
Motor: Siemens Voltage: 380V 50HZ
Brand Name: AORUI Temperature Control: Omron
After-sales Service: Engineers Availiable To Service Inverter: ABB

High Capacity PVC UPVC Conical Twin Screw Plastic Extruder / PVC Pipe Profile Conical Twin Screw Extruder





Quick detail



Advantages of conical twin screw extruder:

1. Low shearing rate, uneasy degradation,plasticization uniform and agglomeration

2. Reliable quality ,wide application range and long servicing life.

3. Automatic temperature control, vacuum gas exhaustion, oil cooled screws

4. Stepless speed regulation,as well as a forced feeding and self-cleaning mechanism





2. SJZ series conical twin screw stem extruder is composed of barrel screw, gear transmission system, measurable feeding, vacuum degassing, heating, cooling and electronic control components etc.
2.It is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film, profiles, and granules etc.







Description:



1. Standard conic twin screw extruder machine adopt electrical heating with air force cooling, which can easy control. The temperature within±1°c. Main motor, gearbox, screws are in the same centre line. The screw and barrel contains oil cooling unit, which can make the temperature control procise.



2. SJZ series conical twin screw extruder is a kind of high effiency equipment for plastic extrusion. It is mainly composed by force feeder,soft plasticization screw and barrel,high precision gearbox,exhaust system. It has features of even mixing,better plasticization,stable working,high capacity,and it is suitable for produce PVC products from mixed poeder.With different mold and other auxiliary equipments,it can produce plastic pipe,board,sheet,granules and so on.



3. The screw&barrel is from Zhoushan, gearbox is made by Jiangyin gearbox company, motor is Siemens Berde, inverter adopt ABB. All of our PVC pipe extruder machine will be checked and tested at the workshop to avoid any necessary trouble.







Main technical parameters:



Use for pipe extrusion

Model SJZ-45 SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92 SJZ-110
Screw diameter(mm) 45/90 51/105 55/110 65/132 80/156 92/188 110/220
Main motor(kw) 15 18.5 22 30/37 55 110 160
Capacity(kgs/h) 120 150 180 300 450 900 1400
Central height(mm) 1000 1000 1000 1000 1000 1150 1200
Net weight(kg) 3000 3000 3500 4000 5500 8000 12000
Dimensions(L*W*H)m 3.3x1.2x2.1 3.6x1.1x2.1 3.6x1.1x2.1 4.2x1.5x2.4 4.7x1.5x2.4 6x1.6x2.5 5.4x1.8x3.0



Use for profile extrusion

Model SJZ-45 SJZ-51 SJZ-55 SJZ-65 SJZ-80 SJZ-92 SJZ-110
Screw diameter(mm) 45/90 51/105 55/110 65/132 80/156 92/188 92/188
Main motor(kw) 15 18.5 22 30/37 55 110 160
Capacity(kgs/h) 80 110 130 220 350 650 950
Central height(mm) 1000 1000 1000 1000 1000 1150 1200
Net weight(kg) 3000 3000 3500 4000 5500 8000 12000
Dimension(L*W*H)m 3.3x1.2x2.1 3.6x1.1x2.1 3.6x1.1x2.1 4.2x1.5x2.4 4.7x1.5x2.4 6x1.6x2.5 5.4x1.8x3.0









Our competetive advantages:



Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
