Product Details:
|
| Model Number: | SJSZ65/132 | Screw Design: | Double Screw |
|---|---|---|---|
| Place Of Original: | Shandong , China | Certificate: | CE ISO9001 Certificate |
| Condition: | New | Plastic Process: | PVC |
| Automatic Grade: | Fully Automatic | Warrnaty: | 12 Months |
| High Light: | double screw extruder,twin screw extrusion machine |
||
PVC Plastic Double Screw Conical Twin Screw Extruder / Conical Twin Screw Extruder China Manufacture
Quick detail
1. The extruder features in good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time.

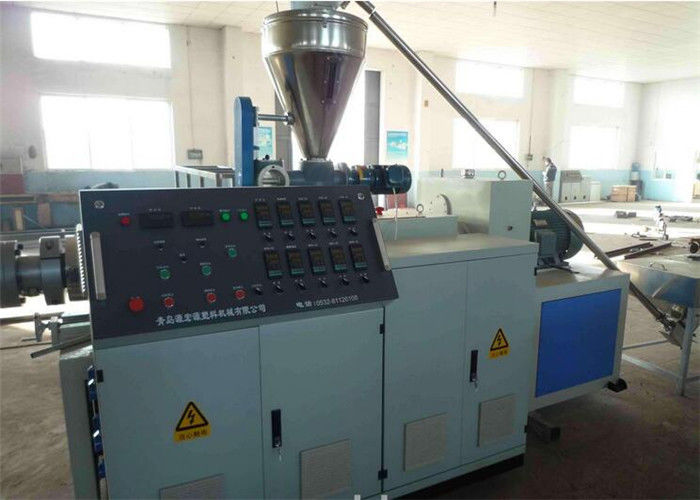

2. Electrical control system: Siemens PLC/PCC auto control system or RKC temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system.
Description:
1. SJZ series conical double screw extruder especially used for extrusion PVC powder, it has advantages as good mixing, large output, working steady , long service life time etc. equipped with series mold and auxiliary machine, it can produce various PVC pipes, profiles, sheets, plates, bars and it also can be used for pelletizing.
2. Model SJZ series tein conical screw extruder is a kind of special wuipment for extruding PVC powder. With different sorts of molds and auxiliary machines , it can produce all sorts of pvc plastic pipe material . profile and board material, sheet material , bar material and granulation.
3. vertical design conical twin screw plastic extruder/extrusion machine for PVC of Qingdao specially designed for the CPVC/UPVC powder extruding, it combined use with the CPVC/UPVC pipe production line, CPVC/UPVC profile production line, CPVC/UPVC sheet production line; It also can be used for WPC profiles extruding.
Main technical parameters:
Use for pipe extrusion
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 | SJZ-110 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 | 110/220 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 110 | 160 |
| Capacity(kgs/h) | 120 | 150 | 180 | 300 | 450 | 900 | 1400 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1150 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 8000 | 12000 |
| Dimensions(L*W*H)m | 3.3x1.2x2.1 | 3.6x1.1x2.1 | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 | 5.4x1.8x3.0 |
Use for profile extrusion
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 | SJZ-110 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 | 92/188 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 110 | 160 |
| Capacity(kgs/h) | 80 | 110 | 130 | 220 | 350 | 650 | 950 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1150 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 8000 | 12000 |
| Dimension(L*W*H)m | 3.3x1.2x2.1 | 3.6x1.1x2.1 | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 | 5.4x1.8x3.0 |
Our competetive advantages:
