Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Screw Design: | Twin Screw | Place Of Original: | Shandong , China |
| Certificate: | CE ISO9001 | Warranty: | 12 Months |
| Voltage: | 380V 50HZ | Delivery Time: | About 20 Days |
| High Light: | two screw extruder,twin screw extrusion machine |
||

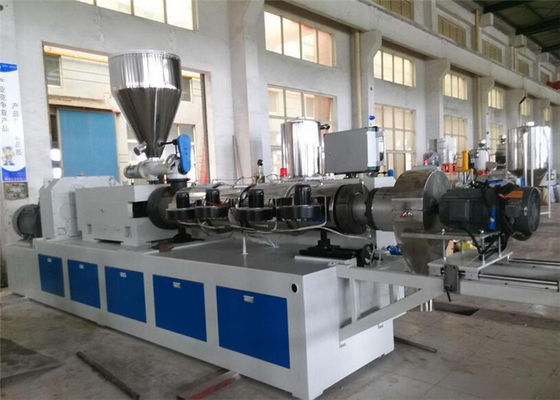

Extrusion Machine For PVC / Twin Conical Screw For PVC Powder / Twin Screw Conical Extruder
Quick detail
1. The screw has applied oil cooling system. Barrel is cooled by special wind cooling system. The system has applied special computer control. According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.

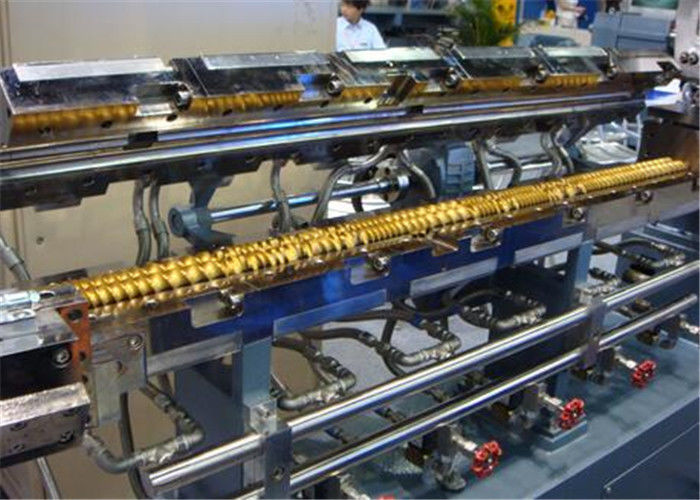

2. The screw is made by high precision special digital screw miller, extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut. The distribution box is specially designed, pull force bearing is fully imported, the drive life span can be prolonged.
Description:

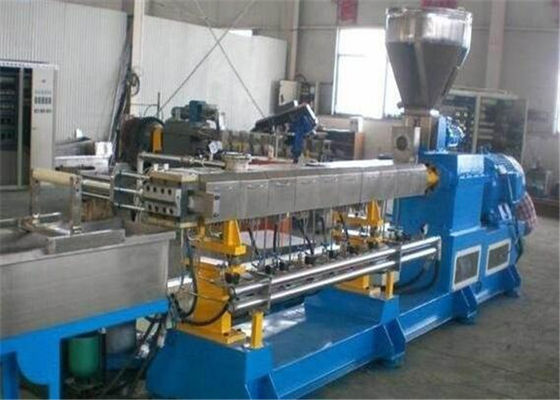

1. SJZ series conical twin-screw extruder has advantages such as forced extrudering, high quality, wide adaptability, long working life, low shearing speed, hard decomposition, good compounding &plasticization, and direct shaping of powder material and etc.
2. This extruder is equipped with AC motoe, auto temperature controller, vacuum exhausting device etc. This production line is suitable for production of plastic pipe, plate and profile and etc.
3. The hard gear surface transmission device of SZ series consists of reducer and allotment box, which is manufactured strictly according to the standard of JB/T9050.1-1999. SZ series match the special products for conical double-screw extruder.
Main technical parameters:
Use for pipe extrusion
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 | SJZ-110 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 | 110/220 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 110 | 160 |
| Capacity(kgs/h) | 120 | 150 | 180 | 300 | 450 | 900 | 1400 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1150 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 8000 | 12000 |
| Dimensions(L*W*H)m | 3.3x1.2x2.1 | 3.6x1.1x2.1 | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 | 5.4x1.8x3.0 |
Use for profile extrusion
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 | SJZ-110 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 | 92/188 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 110 | 160 |
| Capacity(kgs/h) | 80 | 110 | 130 | 220 | 350 | 650 | 950 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1150 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 8000 | 12000 |
| Dimension(L*W*H)m | 3.3x1.2x2.1 | 3.6x1.1x2.1 | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 | 5.4x1.8x3.0 |
Our competetive advantages:
