Product Details:
|
| Model Number: | SJ45/33 | Condition: | New |
|---|---|---|---|
| Place Of Original: | Shandong , China | Certificate: | CE ISO9001 |
| Screw&Barrel Material: | 38Cr MOAIA | Voltage: | 380V 50HZ |
| Warranty: | 12 Months | Screw Design: | Single Screw |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||

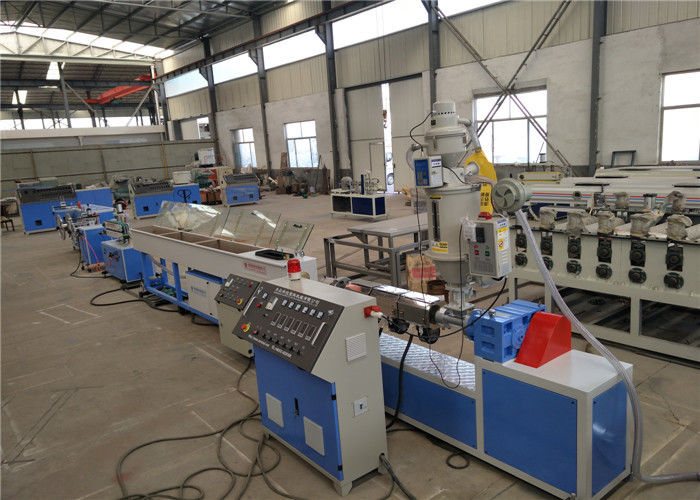

SIngle Screw PE Pipe Extruder , High Quality PE HDPE LDPE Pipe Production Line
Quick detail
1. With beautiful outlook and compact structures, PVC Pipe Extruder Production Line has strong reliability and easy to operate. it is used in producing high speed and high quality pipe, and if change the production line a little it can producing the co-extruder colored pipe.
2. PLC control,high degree of automation
Adopting special screw ,good effect
Adopting compound spiral engine head,effectively deleting memory function of the material

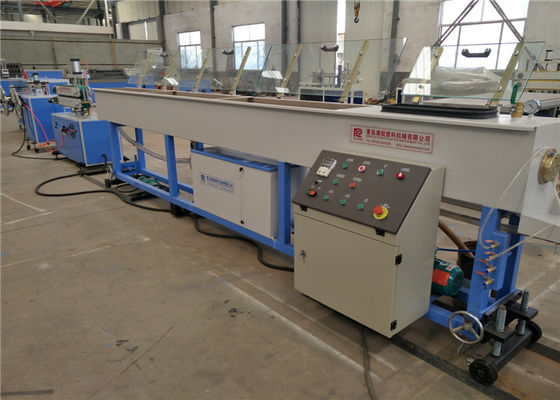

Vacuun sghaping ,constant temperature control,eliminating pipe stress
Adopting co-extrusion head to improve the tube with colour line
Heavy extrusion volume ,low temperature of melt ,equal temperature of melt
Extensive material process range
Description:
1. This PE Drainage Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
2. This pipe production line is a prefect gas and water pipe for ductwork system between city and its suburb. Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
3. Could choose screw diameter 25~90mm extruder according to production capacity and outer diameter;
Could choose PE extruder, fluorine plastic (high temperature resistant, strong corrosion-resistant) special extruder according to material of the pipes to be produced. Special S136H mirror surface steel for dies, the surface of the extruding dies is mirror polished.
4. Specially designed 2-3 co-extruding die , reasonable channel , snmooth outside and inside wall, and little internal stress. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min. May be used to produce HDPE silicon core tube, ordinary PP-R , PE , PEX , and PE-RT pipes.
Application of PE Pipe Production Line:
High Quality PE HDPE Pipe Production Line / Plastic Water Pipe HDPE Extrusion Making Machine
This qualified extrusion line is main for producting PE pressure pipes,discharge pipe line for chemical and food fields,protection and conduit pipes for electrie cables and communication wire,fishpond edge guardrail pipes etc.
Main Technical Parameters
| Model Parameters | LGSJ-110 | LGSJ-130 | LGSJ-150 | LGSJ-180 | LGSJ-210 |
| Screw diameter (mm) | 110 | 130 | 150 | 180 | 210 |
| Screw length(mm) | 2000 | 2200 | 2400 | 2600 | 2800 |
| Machine power(kw) | 22 | 30 | 37 | 45 | 55 |
| screw rotate speed (r/min) | 55-60 | 50-55 | 45-50 | 40-45 | 35-40 |
| Changer motor power(kw) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Production capacity(kg/h) | 80 | 100 | 150 | 200 | 250 |
| Matched pelleter power (kw) | 1.1 | 1.1 | 1.1 | 1.1 | 2.2 |
| Matched crusher/washer power (kw) | 18.5/7.5 | 18.5/7.5 | 22/11 | 30/15 | 37/18.5 |
| Crusher & washers production capacity (kg/h) | 400 | 450 | 500 | 600 | 600 |
| 3+1PH380V50HZ PC Machine installed power | 60 | 80 | 100 | 120 | 140 |
Our Competitive Advantages:
1. experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
2. Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
3. After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
