16-50mm PP PE PVC Plastic Pipe Making Machine For Drainage Pipe / Cable

China 16-50mm PP PE PVC Plastic Pipe Making Machine For Drainage Pipe / Cable supplier
16-50mm PP PE PVC Plastic Pipe Making Machine For Drainage Pipe / Cable supplier 16-50mm PP PE PVC Plastic Pipe Making Machine For Drainage Pipe / Cable supplier 16-50mm PP PE PVC Plastic Pipe Making Machine For Drainage Pipe / Cable supplier

Large Image :  16-50mm PP PE PVC Plastic Pipe Making Machine For Drainage Pipe / Cable

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Model Numberq: SJSZ65/132 Condition: New
Certificate: CE ISO9001 Application: PVC Pipe Machine
Automatic Grade: Fully Automatic Warranty: 12 Months
Port: Qingdao Payment Terms: TT Or L/C

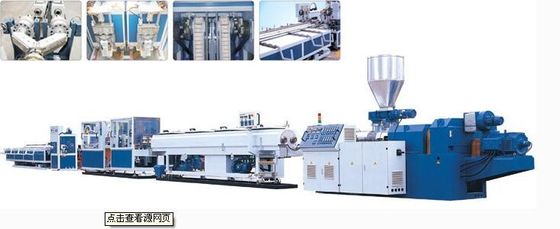

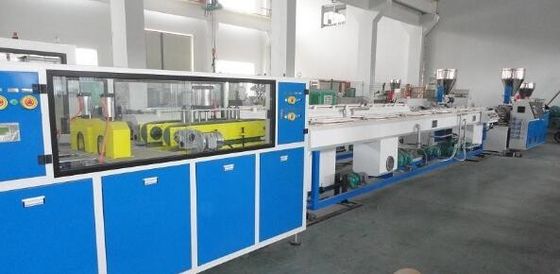

PP PE PVC Twin Pipe Extrusion Production Line / 16-50mm PVC Twin Pipe Production Line


Quick detail



1. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing systerm. Controlled independently umitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.



2. High efficiency twin screw extruder. It can produce pvc pipes. The pipe diameter range:16-630mm or customes request. The pvc pipe is mostly used in construction industry water supply, drain,electrical cable coating and under ground sweage treatment and so on.






Description:



1. PVC pipe line is mainly used in the production of double PVC pipe water drainage pipe, electric conduit, etc., conical twin-screw extrusion equipment configuration of tubing, the corresponding mould, auxiliary equipment, can be used for rigid PVC pipe extrusion processing.Rigid PVC pipe equipment adopts SGC40, SGC63 and models.

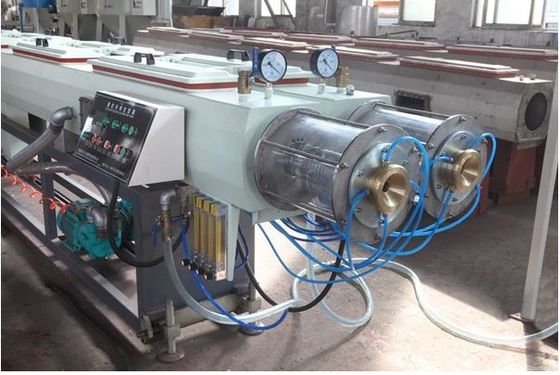

2. Unique inside oil controlling temperature system adapts different technology.Beautiful and practical stainless steel body for vacuum calibration and cooling units, unique multi-sections vacuum system ensures the stable sizing and cooling for pipes; Special cooling system improves the cooling efficiency; Paticular water position, water temperature system make the machine more intelligent.



3. Hauling off unit adopts particular pedrail structure, which is easy and convenient to operation; Pedrial clamping uses mechanical and pneumatic combining system, which is more reliable in performance. Cutting system adopts saw blades and planetary cutting means; Sumping used hydraulic system, which ensures the smooth cross section.







Main Technical Parameters:






Pipe range 20-63mm single 20-63mm dual 75-160mm 110-315mm 315-630mm
Extruder SJZ51/105 SJZ65/132 SJZ80/156 SJZ80/156 SJZ92/188
Extruder power 18.5kw 37kw 37kw 55kw 110kw
Extrusion capacity 120kg/h 250kg/h 250kg/h 360kg/h 800kg/h
Max. Production speed 12m/min 10m/min 6 m/min 3 m/min

1.2m/min








Application:

This PVC pipe production line is mainly used to produce PVC pipes, which is widely used as water supply pipe, drainage pipe, cable and wire protection pipe


Our advantage:



experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
