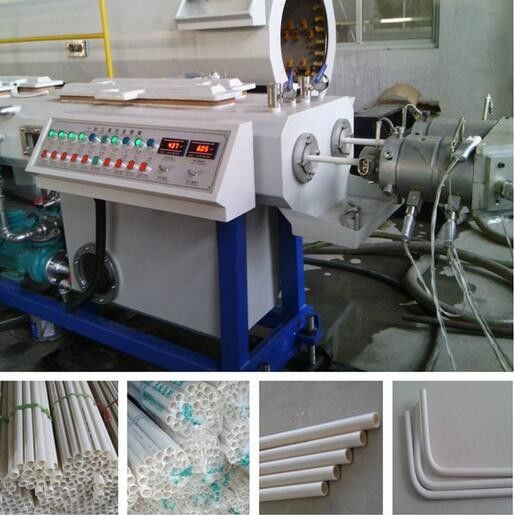

PLC Control Twin Screw Extruder , 16-63mm Pvc Twin Pipe Extrusion Machine

China PLC Control Twin Screw Extruder , 16-63mm Pvc Twin Pipe Extrusion Machine supplier
PLC Control Twin Screw Extruder , 16-63mm Pvc Twin Pipe Extrusion Machine supplier PLC Control Twin Screw Extruder , 16-63mm Pvc Twin Pipe Extrusion Machine supplier PLC Control Twin Screw Extruder , 16-63mm Pvc Twin Pipe Extrusion Machine supplier

Large Image :  PLC Control Twin Screw Extruder , 16-63mm Pvc Twin Pipe Extrusion Machine

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Model Number: SJSZ65/132 Automatic Grade: Fully Automatic
Power: 11-110kw After-sales Service: Engineers Availiable To Service
Screw & Barrel Material: 38Cr MOAIA Plastic Processed: Extrusion
Certificate: CE ISO9001 Place Of Original: Shandong , China

16-63mm PVC Twin Pipe Production Line , PVC Twin Pipe Extrusion Line For Electric


Quick detail



1. The PVC TWIN Pipe Production Line, from charging to stacking shall be controlled automatically by PLC, having high reliability, easy operation and maintenance. With this extrusion line, a layer or multi-layer high strength wire such as steel wire, glass fibre and polyester fibre may be winded do existing pure PE pipe to increase the pipe working pressure to 4MPA.



2. PVC TWIN Pipe Production Line is equipped with conical double screw extruder. With this machine, the line can achieve a high-efficient production.





Description:



1. Process flow:

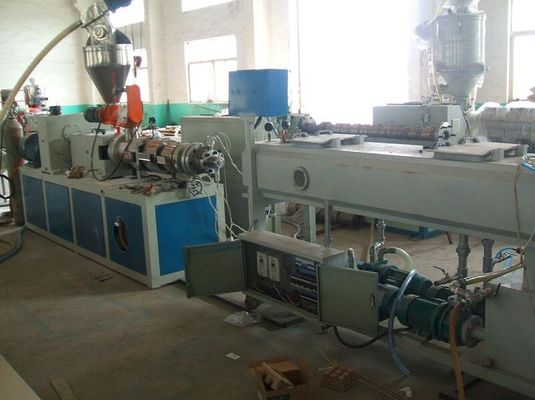

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker



2. Main Features
-compact structure saving installation area
-high output, low consumption and good products
-strong screw designing ability for different products
-screw and barrel using bimetal material
-patented J4 box design is the first class in the world
-intelligent PLC electric control system
-feeding accuracy, flowing fluently
-imported electrical devices are used for accurate control H4



3. Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h.Diameter: from 16 to 800mm. Adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.











Main Technical Parameters:




Pipe Range 16-40mm
(double)
20-110mm 50-250mm 160-400mm 315-630mm
Extruder SJZ65/132
Or
SJZ51/105
SJZ65/132 SJZ65/132
Or
SJZ80/156
SJZ80/156 SJZ92/188
Motor(KW) 37KW
or
18.5KW
37KW 37KW
Or
55KW
55KW 110KW
Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1










Main Applications:

1. Water supply and drainage pipelines in building;

2. Rainwater drainage pipelines in building;

3. Electrical wiring pipe in building;

4. Air conditioning condensate water systems.







Our advantage:



1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
