Double PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production Line

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

Double PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production Line

China Double PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production Line supplier
Double PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production Line supplier Double PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production Line supplier Double PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production Line supplier

Large Image :  Double PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production Line

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Condition: New Main Motor: Siemens
Brand Name: Aorui Tenperature Controller: Omron
Port: Qingdao Certificate: CE ISO9001 Certificate
Model Number: SJSZ65/132 Frequency Control: ABB

PVC Pipe Making Machines Manufactures , Plastic PVC Pipe Production Line





Quick detail



1. PVC double pipe extrusion line is used to produce electrical conduit pipes, cable-laying pipes etc. It is made up of SJ-51/105,SJ-65/132 conical twin screw extruder, double extrusion die head, and other downstream components. Designed to produce 2 small diameter PVC pipes at one time.



2. It's a collection of reasonable layout, stable performance, synchronization, practicability, especially high capacity, warmly welcomed by customers.









Description:



1. Two pipes extruded simultaneously and controlled respectively. One ceases and another goes on. A combination of drawing and cutting machine with fine appearance and accurate synchronization. Applicable pipe diameter ranges from 16-63mm. PLC system and user-friendly human-machine interface can be designed to meet customer requirements.

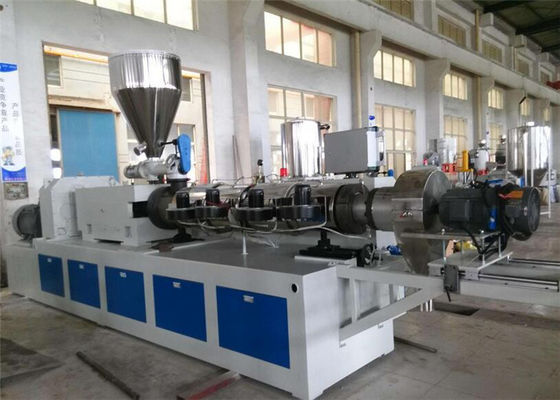

2. This line is composed of conical twin-screw extruder, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder is equipped with Siemens beide brand motor and ABB brand inverter, The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models for different diameter pipes, such as two-claw, three-claw, four-claw, six-claw etc. For the cutter, you can choose lift cutting blade type and no-dust cutting type.Our PVC pipe extrusion production line is of reliable performance and high production efficiency.








Main technical parameters



Pipe Range 16-40mm
(double)
20-110mm 50-250mm 160-400mm 315-630mm
Extruder SJZ65/132
Or
SJZ51/105
SJZ65/132 SJZ65/132
Or
SJZ80/156
SJZ80/156 SJZ92/188
Motor(KW) 37KW
or
18.5KW
37KW 37KW
Or
55KW
55KW 110KW
Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1







Our competetive advantages:



Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time



Double PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production LineDouble PVC Pipe Making Machines , Double Screw Plastic PVC Pipe Production Line
