Fully Automatic Twin Screw Extruder , PVC Dual Line Rigid Pipe Making Machine

Fully Automatic Twin Screw Extruder , PVC Dual Line Rigid Pipe Making Machine
Fully Automatic Twin Screw Extruder , PVC Dual Line Rigid Pipe Making Machine Fully Automatic Twin Screw Extruder , PVC Dual Line Rigid Pipe Making Machine Fully Automatic Twin Screw Extruder , PVC Dual Line Rigid Pipe Making Machine

Large Image :  Fully Automatic Twin Screw Extruder , PVC Dual Line Rigid Pipe Making Machine

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ51/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

Fully Automatic Twin Screw Extruder , PVC Dual Line Rigid Pipe Making Machine

Description
Place Of Original: Shandong , China Port: Qingdao
Automatic Grade: Fully Automatic Condition: New
Screw&Barrel Material: 38Cr MOAIA Type Of Extruder: Twin Screw Extruder
Brand Name: Aorui Certificate: CE ISO9001
High Light:

double screw extruder

,

two screw extruder

Twin Screw PVC Dual Line Rigid Pipe Making Machine , PVC Conical Twin Screw Extruder Pipe Machine





Quick detail



1. First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing systerm. Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.



2. The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.









Description:



1. Pipe performance: withstand voltage, insulation, heat insulation, smooth inside and outside surface, convenient and smooth threading. We design the special extrusion line which can satisfy the wiring harness casing tube production of different material quality and specifications, through the flexible matching of internal pressure forming and vacuum sizing process, tube features excellent apparent effect and dimension accuracy.



2. 1) Double screw extruder
adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.

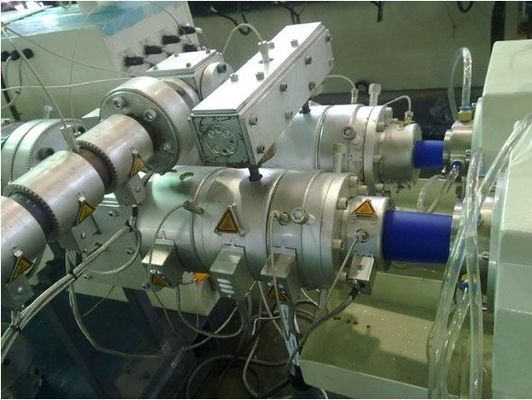

2) Extrusion die head

is spiral type, good calibrating makes good quality pipe production.
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

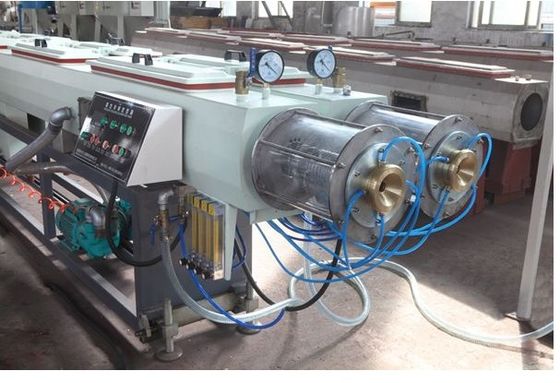

3) Vacuum calibrating tank and water spraying cooling tank
adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.

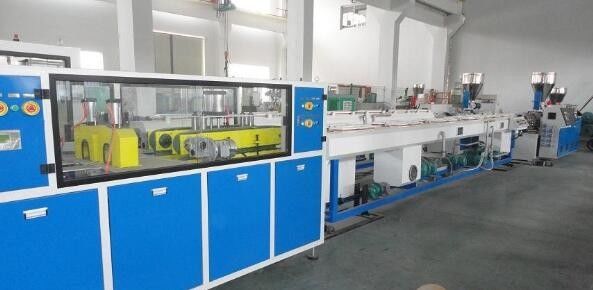

4) Haul off machine
adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes.

5) Cutting machine
Non-scraped cutting, saw cutting or planetary cutting can be applied, accurate cutting, reliable property, high efficiency. Meter-counting device is also installed.








Main technical parameters



Pipe Range 16-40mm
(double)
20-110mm 50-250mm 160-400mm 315-630mm
Extruder SJZ65/132
Or
SJZ51/105
SJZ65/132 SJZ65/132
Or
SJZ80/156
SJZ80/156 SJZ92/188
Motor(KW) 37KW
or
18.5KW
37KW 37KW
Or
55KW
55KW 110KW
Capacity(KG/H) 80-180 150-250 150-350 200-360 400-600
Lineal speed(M/min) 1-15 1-12 0.3-6 0.2-2 0.1-1









FAQ:
Q1:Are you a trading company or a manufactory? A1:We are a manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 1 years guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
