Plastic Pipe Twin Screw Extruder PVC Water Supply System Pipe Extrusion Machine

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

Plastic Pipe Twin Screw Extruder PVC Water Supply System Pipe Extrusion Machine

China Plastic Pipe Twin Screw Extruder PVC Water Supply System Pipe Extrusion Machine supplier
Plastic Pipe Twin Screw Extruder PVC Water Supply System Pipe Extrusion Machine supplier Plastic Pipe Twin Screw Extruder PVC Water Supply System Pipe Extrusion Machine supplier Plastic Pipe Twin Screw Extruder PVC Water Supply System Pipe Extrusion Machine supplier

Large Image :  Plastic Pipe Twin Screw Extruder PVC Water Supply System Pipe Extrusion Machine

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ51/105

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Contact Now
Detailed Product Description
Brand Name: Aorui Power: 37kw
Type Of Extruder: Twin Screw Voltage: 380V 50HZ
Screw&Barrel Material: 38Cr MOAIA Warranty: 1 Year

New Design PVC PP PE Plastic Pipe Production Line , PVC Water Supply Systerm Pipe Extrusion Machine





Quick detail



1. The advantages of pvc pipe making machine: High extrusion capacity , low melting temperature. Special screw design to ensure high effeciency and high output. .High hardness, low noise helical gear design brings reliable performance and long service life. DC speed control or frequency conversion speed regulation is optional.



2. GF Series plastic pipe material production line is mainly used in the area of agricultural water supply systerm , architectural water supply systerm , pavement of cables ,etc.







Description:



1. UPVC pipe production line is mainly used to produce PVC water supply and sewage pipe with the capable of producing pipes range from 16-800mm in diameter. Its unique structure design and high efficiency performance allows it fast adopted by pipe factories around the world.



2. The PVC Plastic Pipe Production Line mainly consists:

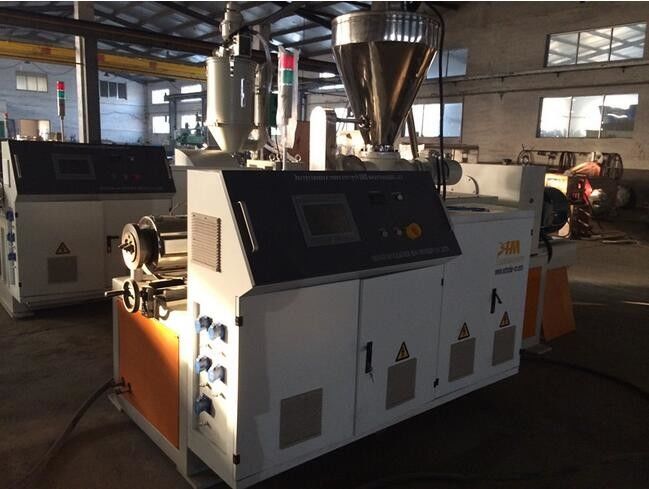

Conical twin-screw extruder;

Mould;

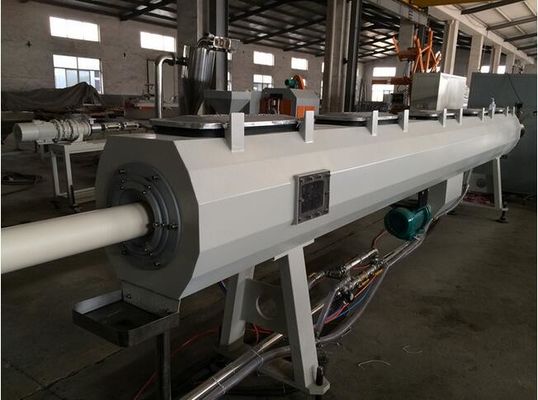

Vacuum calibration tank;

Haul-off machine

Cutter;

Stacker



3. Professional and optimization design for screw to ensure much better plasticization effect and high quality pipe;High-efficiency two chamber structure will be used for vacuum calibration tank with the feature of fast and efficient cooling.







Main Technical Parameter



Specification GF63 GF110 GF160 GF250 GF400 GF630 GF800
Item

diameter

16-63

diameter 16-110 diameter 32-160 diameter 63-250 diameter 160-400

diameter

315-630

diameter 450-800
Diameter of pipe material 16-63 16-110 32-160 63-250 160-400 315-630 450-800
claw number of drawing machine 2 2 2 3 4 6 8
pulling force 6 8 11 20 30 40 50
drawing speed 15 12 8 9 4 2 2
total power of auxiliary machine 14 14 14 21.5 41 56 64







Application:



PVC pipe extrusion line is mainly used in making UPVC and PVC pipes with various tube diameters and wall thickness. Pipe is applied to agricultural and construction water supply and drainage, overhead or underground wire and cable





Our competetive advantages:



  • experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
  • Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
  • After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.

Plastic Pipe Twin Screw Extruder PVC Water Supply System Pipe Extrusion Machine
