PP PE HDPE LDPE Film Granulator 200kg/H - 500kg/H PE Plastic Granules Machine

PP PE HDPE LDPE Film Granulator 200kg/H - 500kg/H PE Plastic Granules Machine

Brand Name:	AORUI
Model Number:	SJ75/33 SJ90/33 SJ120/33
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Condition:

New

Automatic Grade:

Fully Automatic

Brand Name:

Aorui

Place Of Original:

China

Port Of Lading:

Qingdao Port

Voltage:

380V 50HZ

Warranty Time:

1 Year

Screw Design:

Double Screw

Plastic Processed:

PVC

Certificate:

CE Certificate

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

200kg/H PE Granulating Machine

LDPE Film Granulator

PE Plastic Granules Machine

Product Description

PP PE HDPE LDPE Film Granulator, 200kg/h-500kg/h PE Granulating Machine, PE Plastic Granules Machine

Description of plastic pellerizing machine:

1.PE Plastic Pellet Making Machine is a special machine that main use for making PE plastic granules.PE plastic granulator adopt adcance technology, it can cut large PE plastic into pellet.It is a good choice to make pe pellet.

2.PE granulator mainly includes the pre-treatment part, the main part, the post-processing section.The pre-treatment part mainly use to process large pieces of PE plastic into small pieces suitable for entering the main part.The main body consists of one or more cooling devices for cooling small pieces of PE plastic so that they become easy to cut.The post-process part mainly used for cleaning and finishing the cut PE plastic particles for storage or further processing.

3.The flow chart as following:

Belt Conveyor→ Force feeder→ SJ200 Single screw extruding machine→ High speed Net exchanging system with its die-heads→ SJ180 Single screw extruding machine→ High speed Net exchanging system with its die-heads→water cooling bath→ Air dryer→ cutting machine→ vibrator sieve →Air Blower → Silo

Technical parameter:

Item/Model	SJ70	SJ100	SJ130	SJ180
Screw Diameter (mm)	70	100	130	180
L/D ratio	25-42	25-42	25-33	25-33
Output (kg/h)	120-180	250-350	400-500	800-1000

Competitive Advantage:
1, Advanced equipment, precise pelletizing and high producing capacity.
2, Conical double-screw extruder, very suitable to process PVC powder with high capacity

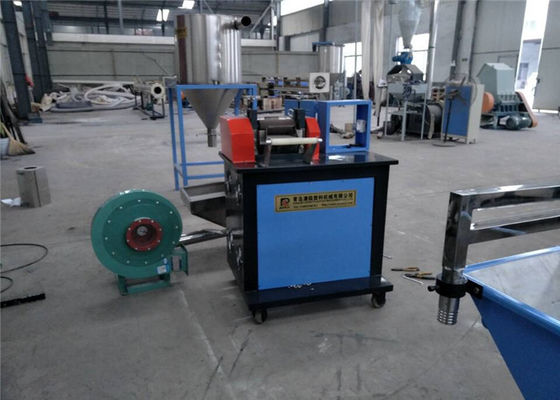

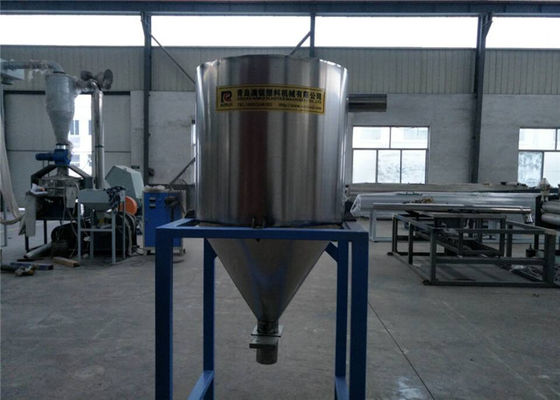

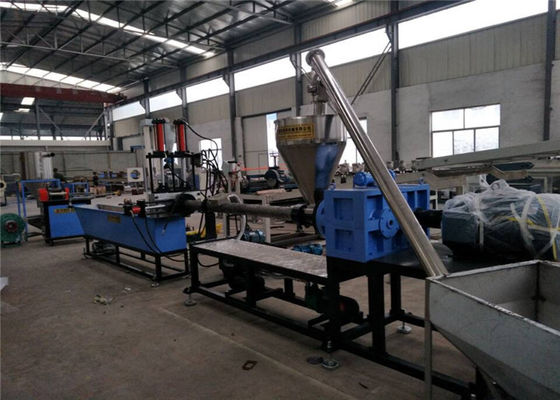

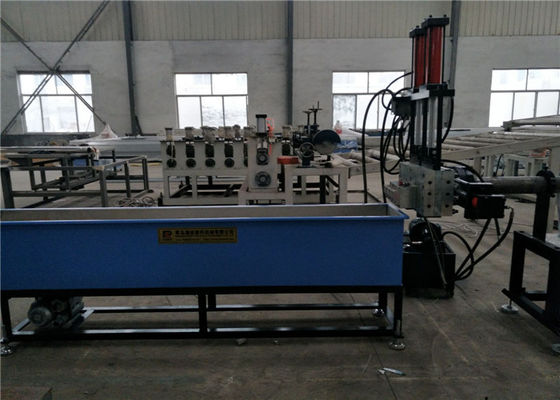

Machine display:
PP PE HDPE LDPE Film Granulator 200kg/H - 500kg/H PE Plastic Granules Machine 0
