| Brand Name: | AORUI |
| Model Number: | SJSZ65/132 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 sets per quarter |
PVC PP PE Steel Plastic Profile Extrusion Line , Wood PVC Profile Making Machine
Quick detail:

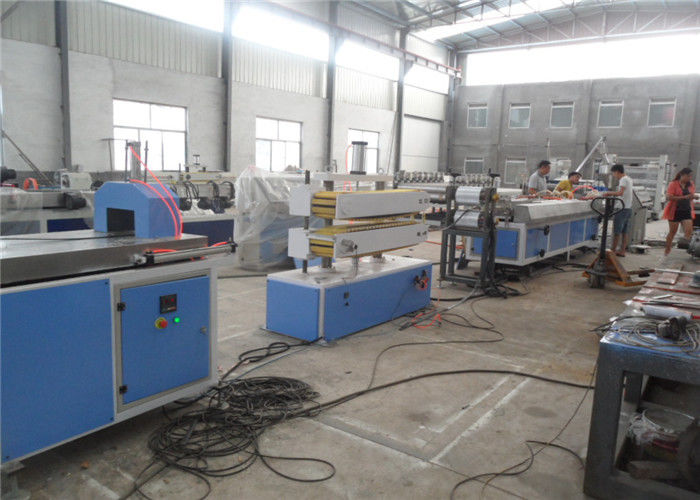

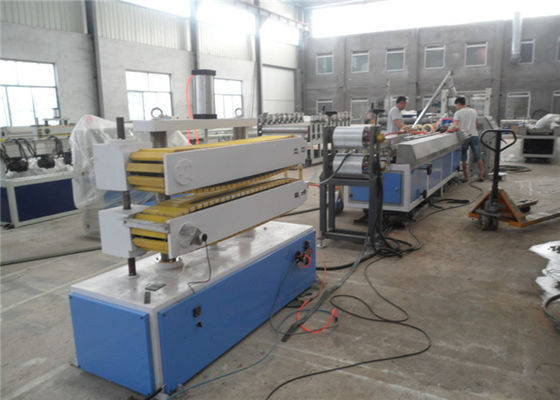

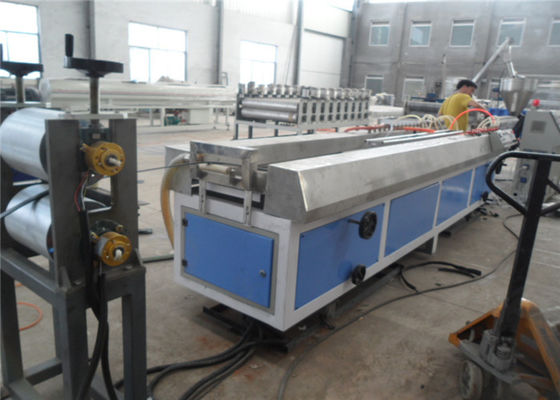

1. PVC window/door profile production line consist of twin screw extruder, vacuum forming table, haul-off unit, plastic cutter, stacker.
2. Introduction of the PVC window profile extrusion line:
PVC window profile extrusion line consist of twin screw extruder, vacuum shaping table, drawing machine, plastic cutter and pilling frame, and also coordinated with different profile break-section and mould to produce PVC door and window profiles, foamed special shaped materials, decoration panel material, profile and multi-hole wire plastic products.
Description:
1. This PVC window profile extrusion line is designed for extrusion of PVC plastic door's and window's profiles and cross-section communication cable pipes, Aluminum-plastic composite profiles, etc. It has stable plastification, high output, low sheering force, long life service and other advantages. PVC profiles can be used in the building industry and home or office.
2. We are specialized in all kinds of plastic machines, and we have been in this area for many years so we have a rich experince, we can solve most trouble other factory can not. With wide experience, we can design machine for you which will not change its quality.To expend foreign market and seeking for long term cooperation, we will give you a very cheap price.
3. WPC wood plastic profile production line can produce all kinds of profile, for example, window, door and door frame, pallet, cladding of outdoor wall, faciliry of ourside park, floor etc. Output profile is Wood Plastic Composite(WPC) or Plastic UPVC.
Technical Parameters:
| Type | SY Model 120 small profile | SY Model 240 small profile | SY Model 240 small profile | SY Model 240 small profile |
| Valid mold length Of Setting table /mm | 3000 | 4000 | 400/5000 | 6000/8000 |
| Max drawing Force | 20 | 30 | 40 | 40 |
| Crawler Width/mm | 200 | 240 | 240 | 240 |
| Valid Length of Crawler /mm | 1600 | 1800 | 2250 | 2400 |
| Water Consumption/ m3h-1 | 2.5 | 4 | 5 | 6 |
| Gas Consumption /m3h-1 | 8 | 10 | 12 | 15 |
| Total Power/KW | 24.3 | 27 | 27 | 34.7 |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time.
