Single Screw Plastic PP Packing Strapping Band Machine Large Output High Speed

Single Screw Plastic PP Packing Strapping Band Machine Large Output High Speed

Brand Name: AORUI
Model Number: SJ65/33
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA
Condition:
New
Application:
Strap Band
Plastic Processed:
PP
Screw Design:
Single Screw
Automatic Grade:
Fully Automatic
Place Of Original:
Shandong , China
Brand Name:
Aorui
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Strapping Band Making Machine

,

Strap Making Machine

Product Description

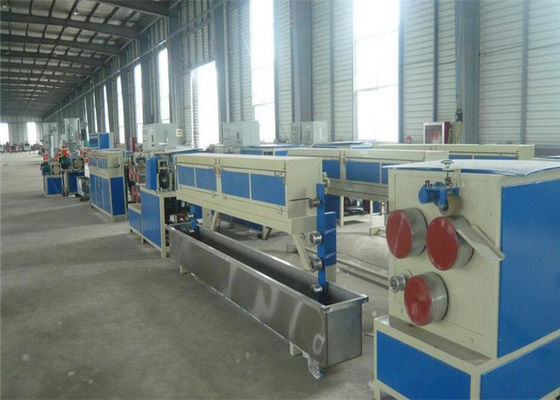

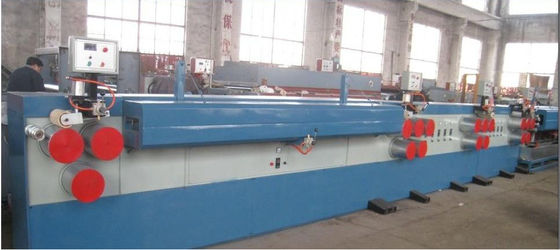

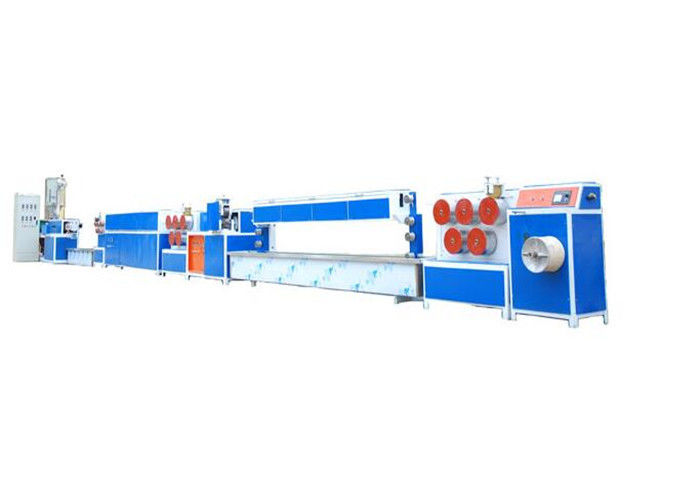

Single Screw Plastic PP Packing Strapping Band Machine Large Output High Speed







Quick detail:



1. The features of line are as follows: Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps;



2. Stainless steel cooling trough with four thermo treatment processes displaces the traditional one; Haul off rollers with bigger size ensure the quality of products; New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; Laser embossing roller makes clear and even patterns.







Description:



1. PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.



2. It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic recycling machine, pp strap making machine, plastic strap extruder line, pp strapping band production and pet recycling line, plastic washing and recycling line.



3. Our plastic extrusion lines based on Plastic Extruders: Single Screw Extruder, Conical Twin Screw Extruder and Parallel Twin Screw Extruder.Our plastic extruder machine many kinds of plastic productions like: plastic granules, plastic pellets, pp strap, strapping band, pp tape band , plastic strap and so on.







Technological parameter:



Extruder SJ-65/28 SJ-80/28 SJ-90/28
Drive Motor 22kw 30kw 55kw
Two-station Winder 80-120m/min,adjustable
Strap Size Width:5mm-20mm Width:10mm-25mm Width:20mm-35mm
Thickness:0.36mm-1.0mm Thickness:0.5mm-1.3mm Thickness:0.5mm-1.8mm
Installed Capacity About 40kw about 60kw about80kw
Line Dimension 26m×2m×2.2m (L×W×H) 26m×3m×3m (L×W×H) 26m×5m×3.5m (L×W×H)









Competitive Advantage:



experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
