Siemens Motor LDPE Hdpe Pipe Machine , Water PE Pipe Production Line / Extrusion Line

Name: Siemens Motor LDPE Hdpe Pipe Machine , Water PE Pipe Production Line / Extrusion Line
Brand: QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1
SKU: SJ65/33
Availability: InStock

Brand Name:	AORUI
Model Number:	SJ65/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE & ISO9001

Place Of Roigianla:

Shandong , China

Port:

Qingdao

Model Number:

SJ65/33

Condition:

New

Certificate:

CE ISO9001

Payment Terms:

TT L/C

Temperature Controller:

Omron

Motor:

Siemens

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

plastic pipe extruder machine

plastic pipe extrusion machine

Product Description

Siemens Motor LDPE Hdpe Pipe Machine , Water PE Pipe Production Line / Extrusion Line

Quick detail

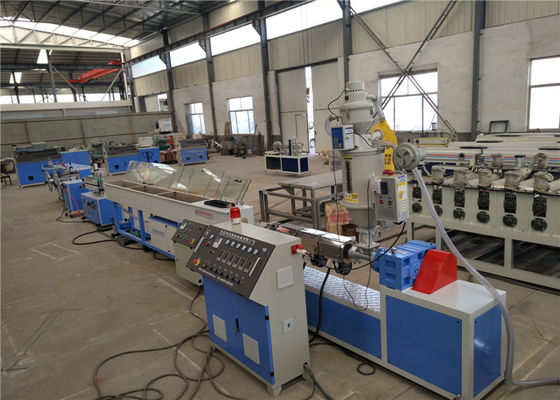

Process flow :

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder

→ color code extruder → mould and calibrator → vacuum forming machine → cooling tank

→ haul-off machine → cutting machine → discharging rack

Description:

1. Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization.
Separation mixing screw specialized for polyolefin.
Producing pipe diameter range Φ20-Φ160mm up to 250mm, speed range from 0.8-15m/min

2. This pipe extrusion line designed by our company selected special extruder and adopted computer control. The screw has barrier unit and special material mixing components and barrel has new style grooves that achieve good plastication and mixing effect. The complete extrusion line assured great output and stable production. In addition, this gas and water pipe extrusion line is equipped with special extruder for marking line of HDPE pipe and PP pipe.

Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line

Model Specifications.	PPRG-63	PPRG-110
Produced Pipe Specification(mm)	φ20-φ63	φ75-φ110
Production Line Speed(m/min)	0.5-8	0.3-2
Total Power(kw)	120	145
Appearance Size(m)	24×3×1.7	28×4×1

Application:

PE Water pipe has such charactritics such as high strength, corrossion resistance, and non-toxic. It is widely used in the field of water supply pipe manufacturing.

Our machinery mainly used to produce pe water supply pipe.

Competitive advantages:

1. Easy to operation, high output

2. Low labor consumption

3. Very partical
