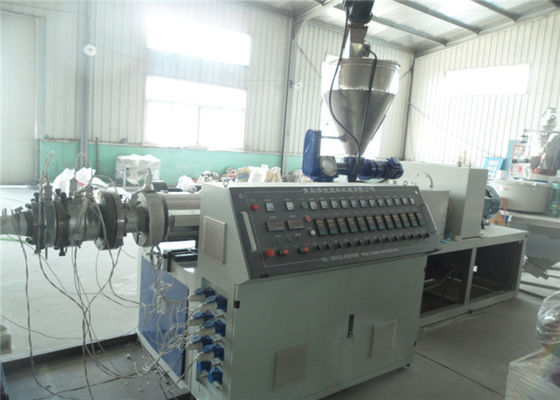

SJ -65 PE Pipe Extrusion Line , Corruagted Pipe Extrusion Machine with large Capacity

Plastic PE Pipe Extrusion Line , Plastic Corruagted Pipe Extrusion Machine , Single Wall Corrugated Pipe Machine

Quick detail:

1. For all kinds of plastic pipes production, including PE, PP, PVC, PPR, etc. We are professional manufacturer of these production lines, with high quality, competitive price, active service and years of experience, our machines are enjoying very good reputation from our clients all over the world.

2. Our plastic pipe production lines mainly include extruder, moulds,vacuum forming boxes, spray cooling boxes, haul off, cutter, pipe rack, also we can supply regarding auxilliary machines, such as mixer, automatic feeder, hopper dryer, etc.

Description:

1.screw specication:various kinds of screw specification are optional for client,adopt high quality screw,38CrMoAlA material with Nitriding treatment.

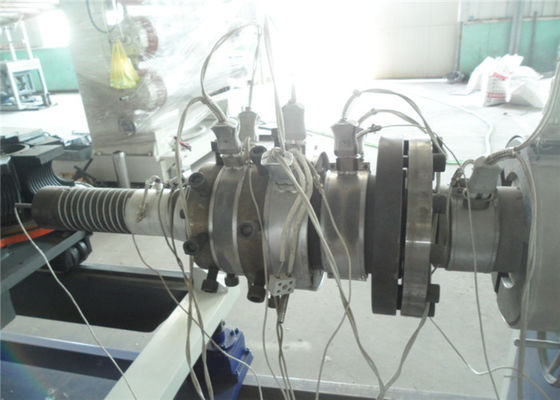

2.full set of mould can safisfy different diameter pipe production

3.spraying and cooling in high level vacuum condition to ensure shaping the pipe effectively

4.stainless steel material barrel ,recycling water device to keep the reasonable working temperature

5.automatic length accounting device for precise cutting

6.different kinds of cutting way are optional:

1)non chipping machine ,adopt advanced Germany technique

2)planetary cutting machine (main suitable for large diameter pipe)

3)saw blade cutting

7.stacker main part is stainless steel and adopt pneumatic controlled

Specifications:

Applications:

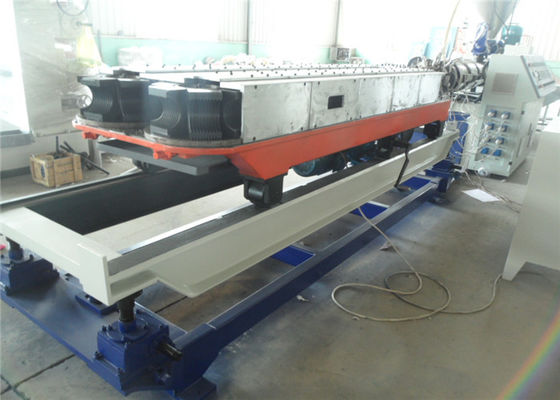

1 . This machine can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA.

2 . Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc

3 . Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.

Competitive Advantage:

1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life

3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
