Product Details:
|
| Automatic Grade: | Fully Automatic | Temperature Controller: | Omron |
|---|---|---|---|
| Warranty: | 1 Year | Condition: | New |
| After-sales Service: | Engineers Availiable To Service | Material: | PP PE |
| Product Type: | PE Pipe | ||
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
PP PE Plastic Single Wall Corrugated Pipe Extrusion Line / HDPE Corrugated Pipe Making Machine
Quick detail:
1. Single wall corrugated pipe

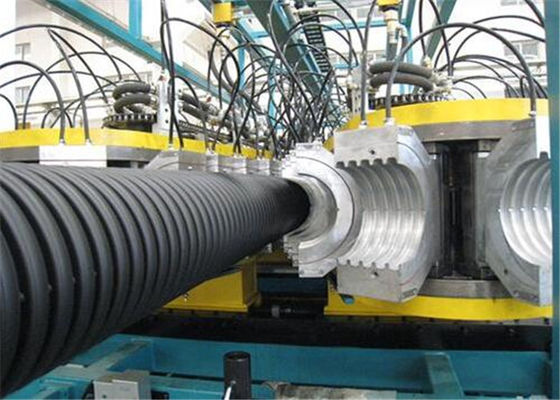

Close type corrugator and vacuum for forming
Forming module is moving in a tunnel
Forming tunnel is clod by water
Forming module is made of hard alloy steel and anti-corrosion and abrasion.
No any connection between forming module, the reduce time to change.
Provide single sand double wall corrugation pipe head die.

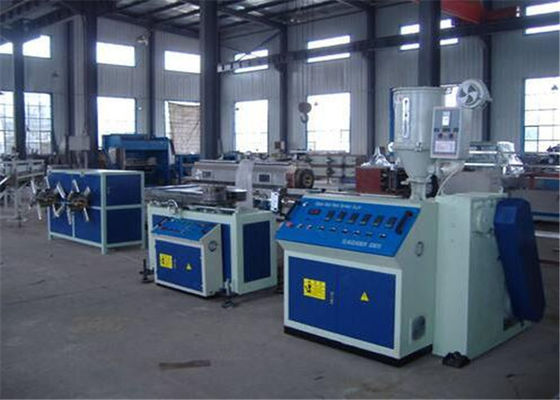

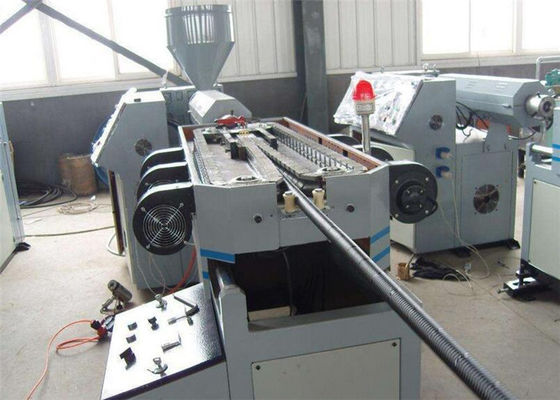

2. Single wall corrugated tube production line is used to produce small caliber single wall corrugated hose. The extrusion line is composed of an automatic feeding system, a single screw extruder, a die head, a forming machine and a cooling machine.
Description:
1. Application:
Single wall corrugated pipe is mainly used in golf courses, sports field, light load, flood drainage; interior cable casing; wire and cable threading pipe, a drainage pipe of a washing machine, vacuum cleaner, air conditioning ventilation pipe, sewer pipe; prestressed concrete
special-shaped pipe etc..
2. Working process:
Raw material → mixing→vacuum feeding → material dryness → single screw extruder → Forming mould → winding machine→finished product inspecting &packing
3. Advantages:
1. The optimum spiral structure-feeding throat highly improves the output of extruder;
2. Accurate temperature control system ensures materials melting performance;
3. Unique screw design achieves better plasticizing and high quality products;
4. Precisely designed gearbox with a high torsion guarantees stable running;
5. Advanced PLC operation system realizes synchronization and automation;
6. Adopt automatic water or air cooling mode;
7. Low energy consumption, excellent performance, and easy maintenance.
Specifications:
| Model | Pipe Diameter (mm) | Motor Power | Speed (m/min) | Max .Output (kg/h) | Total Power |
| SJ-45/30 | 5-15 | 15 | 1-20 | 45 | 35 |
| SJ-50/30 | 16-32 | 18.5 | 1-15 | 90 | 55 |
| SJ-65/30 | 40-63 | 37 | 1-10 | 120 | 70 |
Competitive Advantage:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
