Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Product Type: | Plastic Pipe Machine | Original: | Shandong , China |
| Inverter: | ABB | Trademark: | Aorui |
| Certificate: | CE ISO9001 | TYPE: | Plastic Pipe Machine |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||

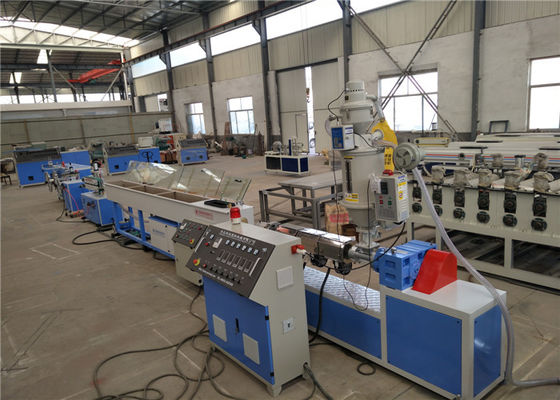

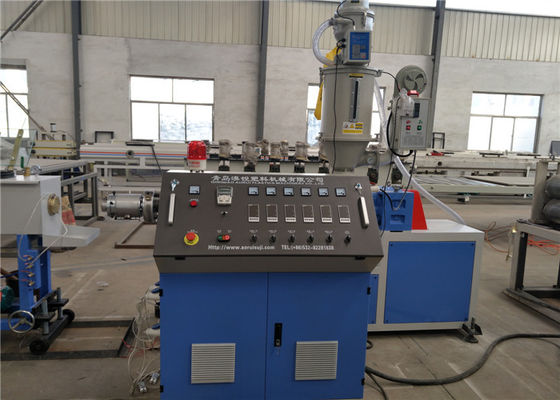

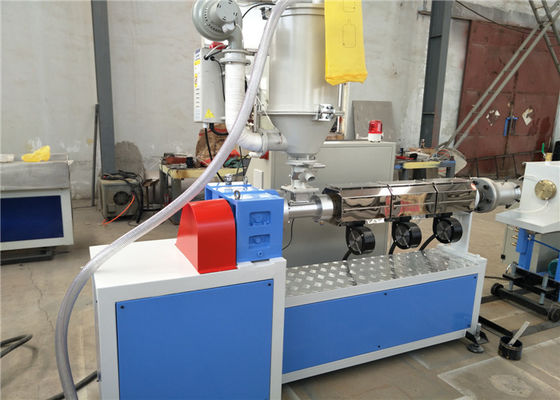

Water Pipe Making Machine / Plastic Pe Pipe Single Screw Extruder Machine / Pipe For Water Supply
Quick detail
Product Specification For PE Water Pipe Machinery:
Description:
1. This PE Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
2. Process Flow of HDPE Pipe Machine:

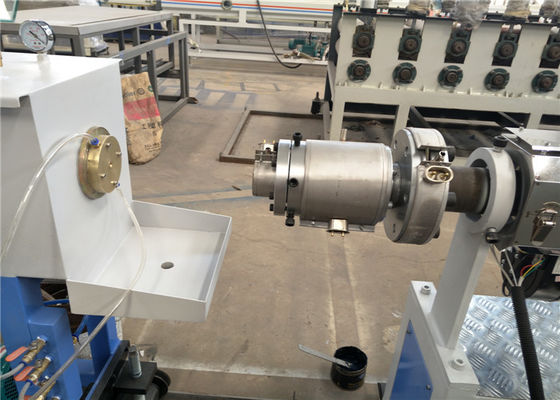

Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → basket co-extrusion mould → calibrator → spray vacuum calibration tank → spray cooling water tank → belt haul-off → single screw glue extruder → winder → winding roller forming → water cooler → cutter → pipe rack → finished product inspecting & packing
Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line
| Modle | SJ-180 | SJ-125 | SJ-80 |
| Pipe diametre | Φ50-Φ180 | Φ20-Φ180 | Φ60-Φ180 |
| vacuum pressure | 0.04MPa | 0.04MPa | 0.04MPa |
| Sizing box's specfication | 460*460*1200mm | 380*380*1200mm | 320*320*1000mm |
| Cooling box's specfication | 460*460*3000mm | 380*380*2400mm | 320*320*2000mm |
| Cooling method | Circulating water spray | Circulating water spray | Circulating water spray |
| Traction power | 5.5KW | 5.3KW | 1.5KW |
| Traction speed | 0.2-3m/min | 02-4m/min | 0.2-4m/min |
| Cutting method | Automatic tracking saw blade cutting | Automatic tracking saw blade cutting | Automatic tracking saw blade cutting |
| Flip stacking method | Automatic fixed length gas control | Automatic fixed length gas control | Automatic fixed length gas control |
Application:
The property of this PE/ PP pipe extrusion line is reliable, the production efficiency is high. With special device, the pipe making machine can produce inner wall spiral pipe, inner wall hollow pipe and core layer bulpo pipe, etc. PE pipe production line: Can also produce PP, PE, ABS, PPR, PEX silicon core pipe and other pipe materials.
Why choose us:
CE ISO9001 Certificate
Good after-sales service
We are factory
