Product Details:
|
| Brand Name: | AORUI | Application: | Drian Pipe |
|---|---|---|---|
| Drawing Speed: | 15m/s | Certificate: | CE ISO9001Certification |
| Place Of Origin: | Shandong,China | Pipe Diameter: | 20-160mm |
| Dimension: | According To Model | Voltage: | 380V50HZ Or Customized |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
High Efficient Plastic Pipe Extrusion Line , Pvc Pipe Extrusion Machine For Agricultural
Plastic PVC Pipe Extrusion Line / High Efficien PVC Pipe Making Machinery / pvc Pipe Machine For Agricultural
Quick detail
1. GF Series pipe material production line is mainly used in the area of agricultural water supply systerm ,architectural water supply systerm, pavemrnt of vables , etc.
2. Equipment Composition:

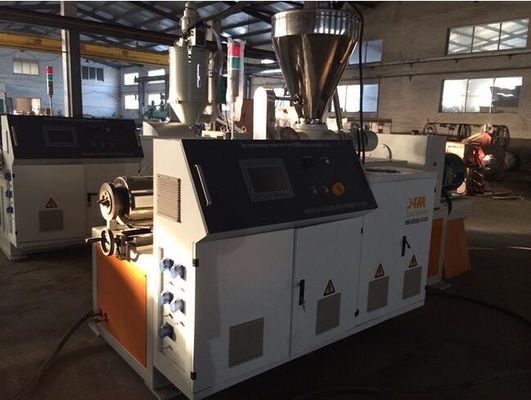

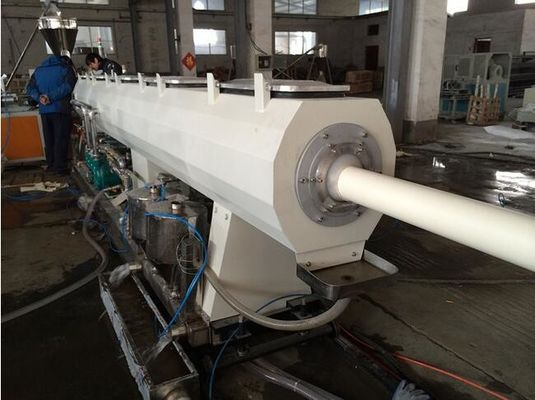

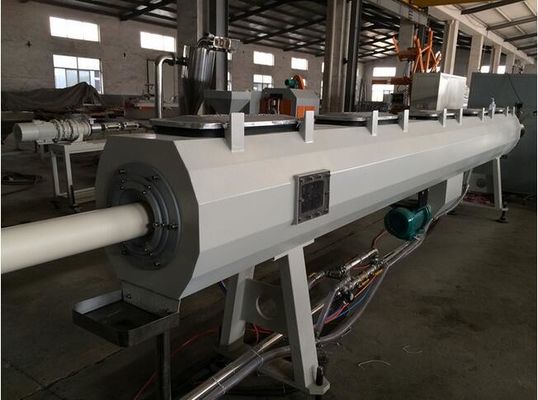

PVC powder + additive → mixing → spring feeding →conical twin screw extruder → PVC four-outlet pipe mould → vacuum calibration cooling tank →integrated hauler and cutter→ stacker
Description:
1. PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing,cable laying etc.

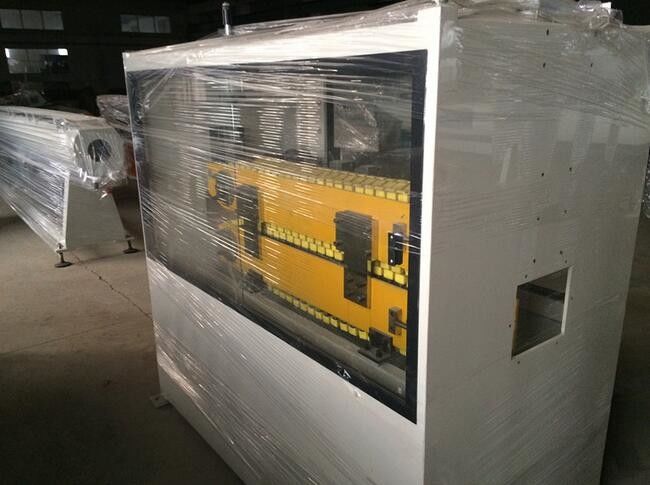

2. The extruder and extractor adopt the imported AC frenquncey control device.The vacuum pump and the main motor adopt the famous brand.The haul-off has many different kinds of Model,such as two-claw, three-claw, four-claw, five-claw, six-claw.About the cutter, you can choose the saw blade cutting type or the planet cutting type.We also can offer some auxiliary machine about the pipe extrusion line.
3. This line is designed to produce PVC fiber reinforced hose,the wall of which is three layers,outer and inner layer are soft PVC hose,middle layer is Terlene fiber network,which has good chemical and physical property,it is mainly used for the transportation of high pressure or corrosive gas,and is widely used in the machinery,coal mine,chemical,agriculture irrigation,gas and building.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
GF series plastic pipe material production line is mainly used in the area of agricultural water supply system , architectural water supply system , pavement of cables , etc . as well as pvc pipe material of all sorts of pipe caliber and wall thickness.
Our competetive advantages:
1. good pre-sales and after-sales service
2. our engineers can go to aborad to installment the machine and teach the workers
3. easy to operate and high output
