Product Details:
|
| Condition: | New | Motor: | Siemens |
|---|---|---|---|
| Inverter: | ABB | Voltage: | 380V 50HZ |
| Automatic Grade: | Fully Automatic | Raw Material: | PVC |
| Application: | PVC Pipe | Model Number: | SJSZ51/105 |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
16-63Mm Water Supply Pvc Pipe Making Machine With CE Certificate , Siemens Motor
16-63mm PVC Pipe Making Machine With CE Certificate / PVC Water Supply Pipe Extrusion Machinery
Quick detail
1. This machine group consists mainly of twin conical (parallel) screws extruder , vacuum calibrating tank , tractor , haul-off unit , cutting unit , tilter .etc.
2. Single screw extruder and haul-off unit have applied imported A/C inverter , both vacuum pump and driving motor have applied excellent products.
3. The drawing machine includes two-claw type , three-claw type ,four-claw type , six-claw type . eight-claw type , etc.
Description:

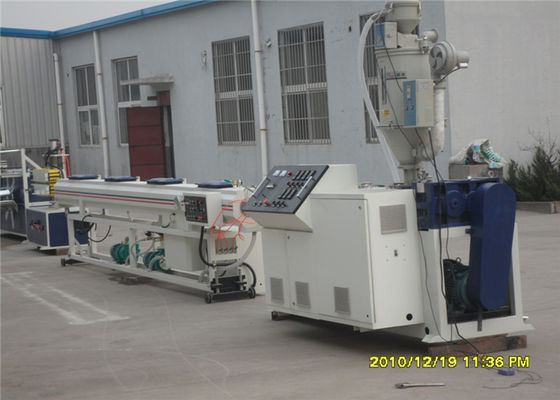

1. PVC pipe making machine /PVC pipe extrusion production line/ is mainly used in the manufacture of the UPVC and PVC pipes with various pipe diameter and wall thickness, such as the agricultural and constructional plumbing, water supply and water drainage, electric conduit pipe etc. Our extrusion line can produce the PVC pipe with diameter from 16mm to 630mm.
2. After mixing raw material with other additives, the mixed powder will be fed into the extruder by spring feeder or vacuum feeder, after extrusion, the soft hot pipes will be produced by mould, then it goes into the vacuum calibration tank.
3. The vacuum calibration tank's function to keep the pipe's shape and cool it, the vacuum calibration tank is mainly imposed of one or several water pump, one or several vacuum pump, and several rows of spraying nozzle. after cooling and forming shape, the pipes will be pulled to next machine--haul off machine, haul off machine's mainly function is to keep the pipes forward,

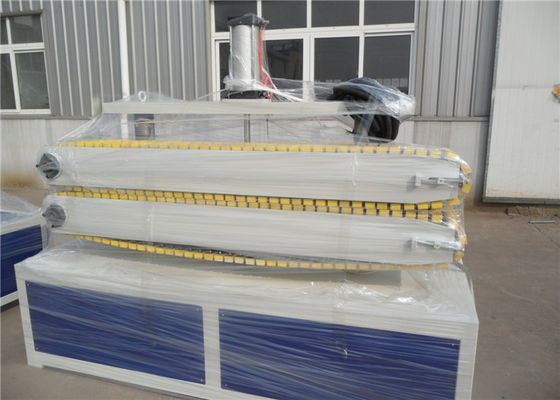

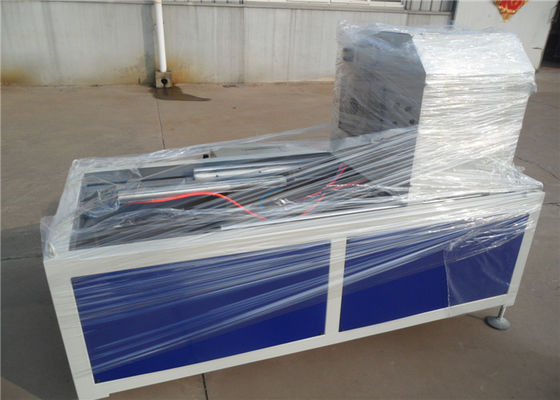

4. There are two caterpillars, three caterpillars, even to eight caterpillars for different diameter pipes. After haul off machine, the next machine is cutter, its function is to cut the pipes based on required length. there are also several type of cutting way, one is cutter type, another is planetary type cutter, and we also have no-dust type cutter, they are used for different type of pipes. At last, you can get good quality PVC pipes by our extrusion line.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Our competetive advantages:
1. We give you suitable suggestions according to your actual need.
2. CE ISO9001 Certificate
3. 24 hours services r actual need.
4. Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment.
