Product Details:
|
| Brand Name: | Aorui | Type Od Extruder: | Twin Screw Extruder |
|---|---|---|---|
| Delivery Time: | 35 Days | Warranty: | 1 Year |
| Payment Terms: | TT Or L/C | Frequency Control: | ABB |
| Temperature Controller: | Omron | Voltage: | 380V 50HZ |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||

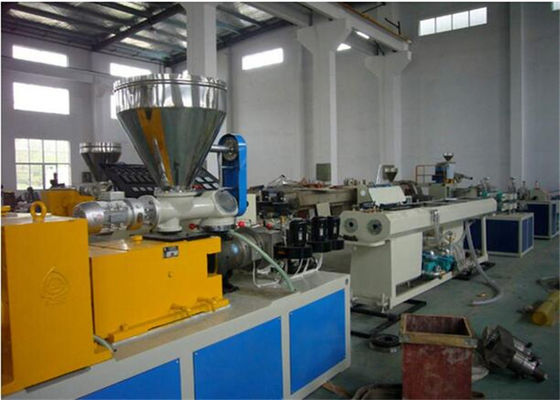

High Speed PVC Drainage Plastic Pipe Extrusion Line With 1 Year Warranty
PVC Drainage Plastic Pipe Extrusion Line / High Quality PVC Pipe Extruder / Plastic PVC Pipe Machinery
Quick detail
1. Our plastic pipe production lines mainly include extruder, moulds,vacuum forming boxes, spray cooling boxes, haul off, cutter, pipe rack, also we can supply regarding auxilliary machines, such as mixer, automatic feeder, hopper dryer, etc.
2. With special device , it can produce inner wall sprial pipe , inner wall hollow pipe ,and core layer bulpo pipe , etc. It can also produce PP PE ABS PPR PEX , silicon core pipe and pipe material of other material. The planet-shaped cutting machine is fully automatic computer digital control , it has such advantages of simple operation, reliable property etc. It has reached world advanced level,
Description:
1. All electric components are from famous world brands, such as ABB, SIMENS, SCHNEIDER, OMRON,etc.This line can solve the problems of high temperature melting, high viscosity, easy-decomposition. The special designed screw, gearbox, tooling, and HMI system make the line reliable and easy operation.
2. The extruder and haul-off machine adopt the imported AC frequency control device. The vacuum pump and hauling motor employ superior goods. Haul-off machine of different specifications, such as two claws, three claws, four claws, six claws etc are designed for different requirements.
3. It is additionally attched with length measuring apparatus and thickness increasing device. The unit is of reliable performance and high production efficiency.
4. PVC pipe extrusion line Processing flow:
Material →Mixer →Forced feeding →conical double screw extruder →mould & calibrator → vacuum spay
cooling tank →printer → haul-off →cutter →stacker
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 |
Our competetive advantages:
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
