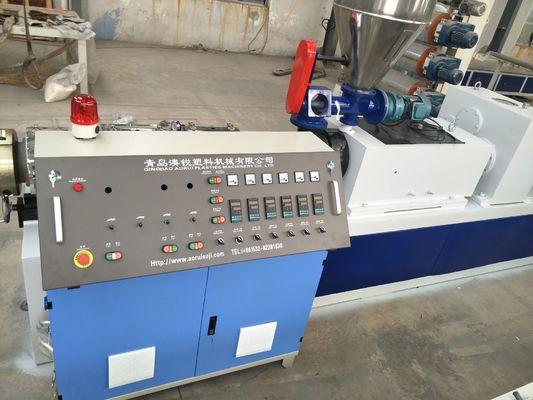

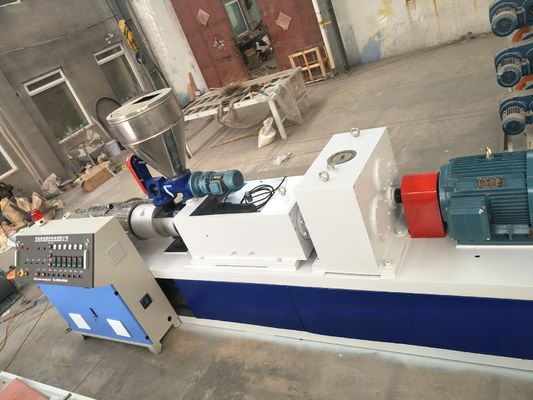

PVC Hot Cut Plastic Granules Machine , Twin Screw Granulation Production Line

Brand Name:	AORUI
Model Number:	SJSZ80/156
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Condition:

New

Screw Design:

Double Screw

Brand Name:

Aorui

Certificate:

CE ISO9001

Material:

PVC

Warranty:

1 Year

Capacity:

350KG/H

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Plastic Pelletizing Machine

Plastic Granulating Machine

Product Description

PVC Hot Cut Plastic Granules Machine , Twin Screw Granulation Production Line

PVC Pelletizer Making Machinery , PVC Hot Cut Pelletizng Extrusion Line , Twin Screw Granulator Production Line

QUICK DETAIL:

Product Description
1. PVC PP PE film Recycling Granulation Line
2. Compression air consumption: 3.0m3/h (0.3Mpa )

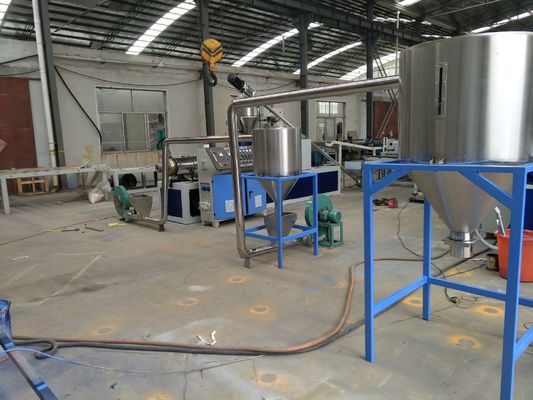

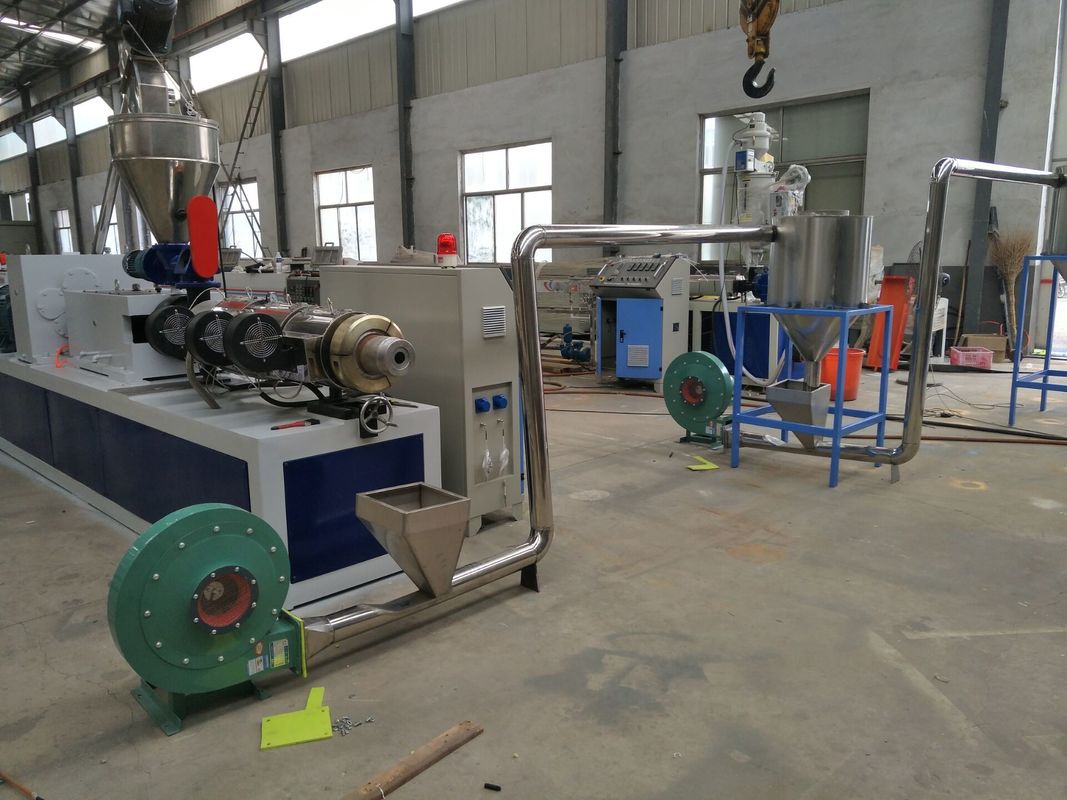

3. The consist of equipment: Belt conveyer. Crusher, potcher, helical feeding machine, dehydrator, pipe dryer equipment, storage silo
4. The main electric part adopts import famous brand products, ensure the operate smoothly
5. Can design and manufacturer according your reality requirement.
6. Provide the best technical support by online support and door-door support.

Description:

PVC Pellet Making Machine Introduction:
1) The full CPVC granulator include one double screw extruder SJZ65, Pellets making mold with three knives, Air Blower, First stage hopper and second stage hopper.
2) On this full line, you must with one system called die core temperature adjust system, and must be with water cooling, as CPVC has special chemical character than UPVC;
3) For CPVC granules making machine, the capacity can be 150kg/h, 200kg/h, 300kg/h and 500kg/h, you can choose them based on your needs, then we will suggest the satisfied extruder and auxiliary machines

Specifications:

Model	SJZ51	SJZ55	SJZ65	SJZ80	SJZ92
Screw Dia.(mm)	51/105	55/110	65/132	80/156	92/188
Max.Speed(rpm)	40	38	38	37	36
Main Motor(kw)	18.5	22	37	55	90
Output(kg/h)	80-100	100-150	150-250	250-380	380-700
Center Height(mm)	1050	1050	1050	1050	1100
New Weight(kg)	3000	3500	4000	5500	8000
LWH(m)	3.61.12.1	3.61.12.1	4.21.52.4	4.71.52.4	61.62.5

Our company competitive advantages:

Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device

e type cool system of assistance machine adopted have high automation degree and production efficiency.
