Product Details:
|
| Raw Material: | PP PE | Voltage: | 380V 50HZ |
|---|---|---|---|
| Delivery Time: | 30 Days | Payment Terms: | TT Or L/C |
| Warranty Time: | 1 Year | Port: | Qinmgdao |
| Original: | Shandong , China | Screw&Barrel Material: | 38Cr Moaia |
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||
PE Carbon Spiral Reinforced Pipe Extrusion Line / Plastic Carbon Pipe Extrusion Process / Plastic Pipe Machinery
Quick detail:
EQUIPMENT LIST:
1. Automatic Feeder

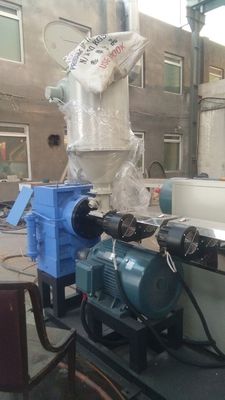

2. Single Screw Extruder
3. Extrusion Mould
4. Water Cooling Tank
5. Haul-off Machine
6. Cutting Machine
7. Stacker
The special separable type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce pipes with smooth inside and outside walls.With high flexibility, various polyolefin material, multi-layer spiral strengthening pipe can be co-extruded for various uses, 80% of recycled material can be used in production.
Description:
1. Features of production line:
1) Extruder: Special single screw extruder, high-speed extrusion, high speed plasticizing.
2) Sizing cooling: Production range of 50-200 mm, the production speed is as high as 0.6 to 1.5 m/min.
3) The cooling system.: High efficiency water pump and special spray head, high efficiency spray cooling.
4) Low melting temperature: small internal stress of tubing, smooth internal and external surface.
5) High flexibility: Extrusion of all polyolefin materials, extrusion of spiral reinforced pipes of the two or three layers with different specifications and usages.
6) Spiral structure: Separated type of mixed screw and the nose, reasonable runner, smooth inside and outside wall of pipe.
7) Motor: Longitudinal movement adjustment, up,down,left and right to realize 3 dimensional adjustment.
8)Box: Stainless steel material
2. The PE Spiral Pipe production line is mainly used for producing PE spiral pipe. This kind of pipe has characteristics of high strength, high toughness, anti-corrosion, light weight, long service life and anti-deformation; it is widely used in cable protection and vented exhaust. It is an ideal alternative of cast iron pipe, rubber pipe and PVC pipe. Widely used in road light, high way, bridge construcion for cable/ electrical wire protection. Usually buried under ground.
Specifications:
|
Model
|
SJ90/30
|
SJ65/30
|
|
Pipe diameter (mm)
|
50-200
|
20-125
|
|
Calibration unit
|
SGZL-200
|
SJZL-125
|
|
Haul-off machine
|
SLQ-200
|
SLQ-200
|
|
Winding machine
|
SQ-200
|
SQ-200
|
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
