SJ65 Plastic Pipe Extrusion Line PE Carbon Spiral Reinforcing Pipe Production

Plastic PE Pipe Extrusion Line , SJ65 PE Carbon Spiral Reinforcing Pipe Production Line , PE Reinforced Pipe Extruder

Quick detail:

PE carbon spiral reinforcing pipe production line

1. The single screw extruder, featured by good plasticization rate and high extrusion speed, is especially designed for the extrusion of PE material.

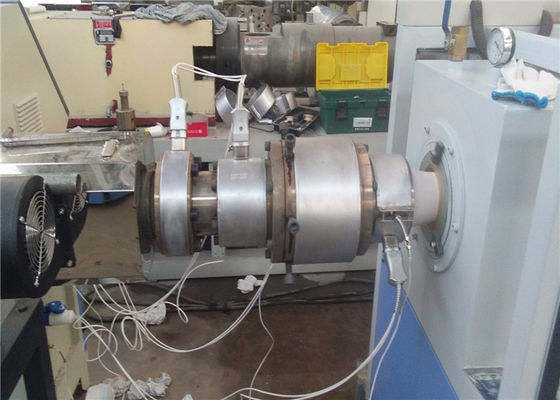

2. The specially detached type compounding screw and die head with spiral structure & reasonable channel.
3. Unique calibration and cooling mode is capable of producing pipe with diameter from φ50 to φ200mm, production speed is up to 0.4~1.5m/min.
4. With co-extrusion technology, multi-layers spiral fiber-strengthened pipe can be extruded. Recycled materials can be used in the production.
5. Optimum spiral copper sizing sleeve, its entrance is equipped with pre -cooling and powerful vacuum device.

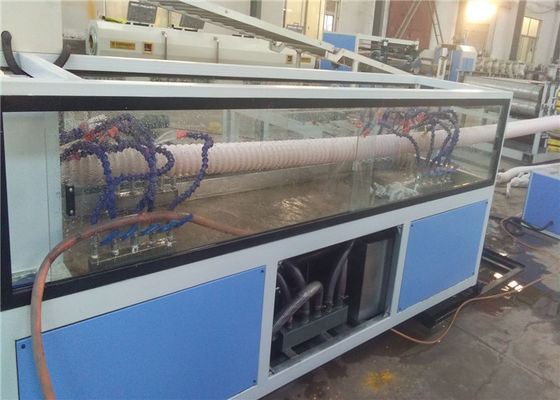

Stainless steel cooling tank is three-dimensionally adjustable, longitudinal moved by motor.
6. Highly efficient cooling comes from peculiar spraying nozzle and high-efficiency water pump.

7. main technic specialization

Description:

1. Configuration polyolefin special single screw extruder with high speed extrusion, high-speed characteristics of speed and so on.
Separate special mixing head screw and spiral structure, flow and reasonable, both inside and outside pipe walls smooth. Specially designed sizing cooling mode: Production range 50-200mm, production speed up to 0.6-1.5 m / min. Standard design of tube head

2. Spiral distribution flow divider, and a large space of flows to ensure sufficient residence time of melt. Best design of a low melting temperature, internal stress of the pipe is small, inner and outer surface smooth. High flexibility for all polyolefin materials co-extruded two-story, three different specifications use the spiral reinforced pipe.

Specifications:

Competitive Advantage:

• 24 hours services;
• Overseas installation;
• Free operation training and technology formula transfer;
• Old machine update;
• Spare parts and maintenance with reasonable cost price.
