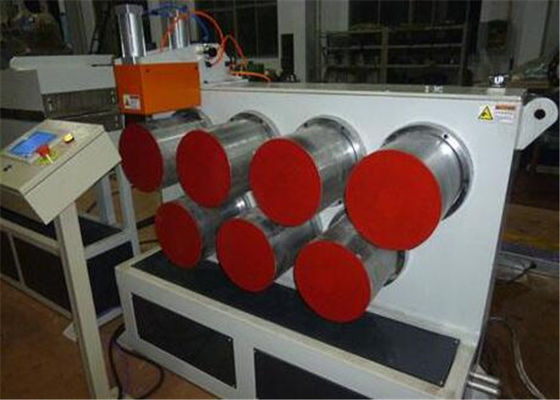

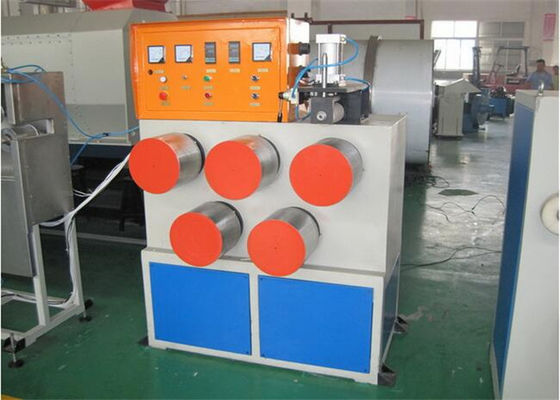

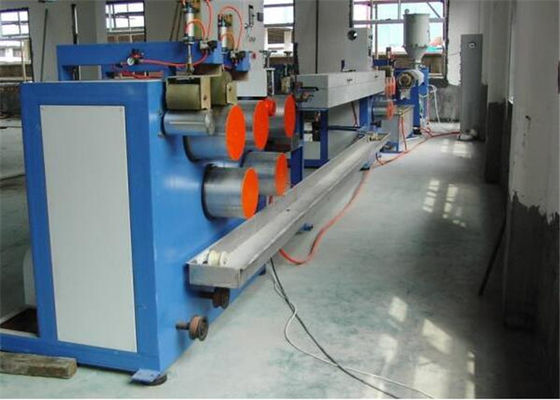

Recycled Flakes PP PET Strap Band Packing Belt Machine , PP Strap Band Extrusion Machine For Packing

Recycled Flakes PP PET Strap Band Packing Belt Machine , PP Strap Band Extrusion Machine For Packing

Brand Name: AORUI
Model Number: PET75/33
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA
Model Number:
SJ75/33
Condition:
New
Certificate:
CE ISO9001
Nitrided Layer Thickness:
0.4-0.7mm
Screw Number:
One
Brand Name:
Aorui
Temperature Controller:
Omron
Frequency Control:
ABB
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Strapping Band Making Machine

,

Strap Making Machine

Product Description

Recycled Flakes PP PET Strap Band Packing Belt Machine , PP Strap Band Extrusion Machine For Packing


Quick detail:

1. The features of line are as follows: Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps;



2. Stainless steel cooling trough with four thermo treatment processes displaces the traditional one; Haul off rollers with bigger size ensure the quality of products; New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; Laser embossing roller makes clear and even patterns.





Description:

1. PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.



2. PET and PP straps machine making are our factory main jobs. we have long time experience and also we are update the new technology every set of machine.

high tensile strength straps , precision in the size , ensure the straps can use with automatic packing tools.



3. pet straps: can use to package cotton, fiber, fabric, paper and some loose and easy relax commodities. Packing stone and metal is very easy, but packing loose things need high flexible and high strength straps. The following is compare our high quality straps and common straps:





Technological parameter:

Model SJ-65 SJ-75 SJ-90
Extruder SJ-65/30 SJ-75/33 SJ-90/33
Productivity 60-100kg/h 80-120kg/h 120-150kg/h
Drive Motor 22kw 30kw 55kw
Two-station Winder 60-120m/min,adjustable
Strap Size Width:5mm-20mm Width:10mm-25mm Width:20mm-35mm
Thickness:0.36mm-1.0mm Thickness:0.5mm-1.3mm Thickness:0.5mm-1.8mm
Installed Capacity about80kw about 90kw about110kw
Line Dimension 30m×2m×2.2m (L×W×H) 30m×3m×4.5m (L×W×H) 30m×5m×6m (L×W×




Technical and after-sales service:

Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
