Product Details:
|
| Brand Name: | AORUI | Type Of Extruder: | Twin Screw |
|---|---|---|---|
| Delivery Time: | 30 Days | Certificate: | CE ISO9001 |
| Place Of Original: | Shandong , China | Port Of Shipment: | Qingdao |
| Warranty: | 1 Year | Voltage: | 380V 50HZ |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||
PET Strapping Band Machine / PP PET Strap Band Making Machine / PET Packing Belt Extrusion Machine
Quick detail:
1. Features of pet strap band machine:The equipment adopts different configuration and techinics, can produce PP or PET bale strap, we can insure the linear speed, precision and smooth running, inkwriter picks out and buys.
2. Single screw or twin screw technique for option depending on the requrement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line.The dosing pump ensures continuous and stable production. The filter of double columns with four working positions can get rid of impurity effectively. Single strap or double strap for option.
Description:
1. The extrusion Line consist of the following parts:

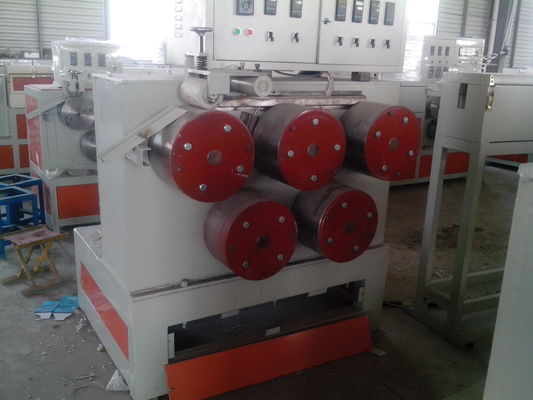

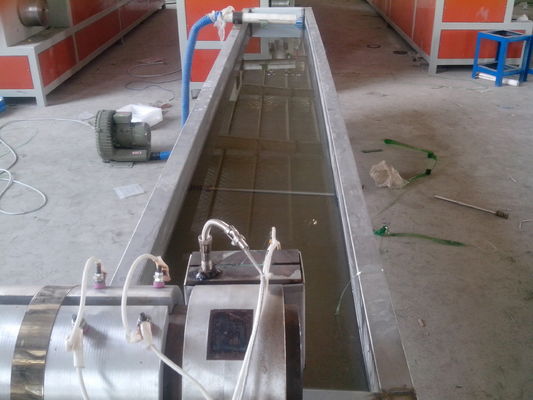

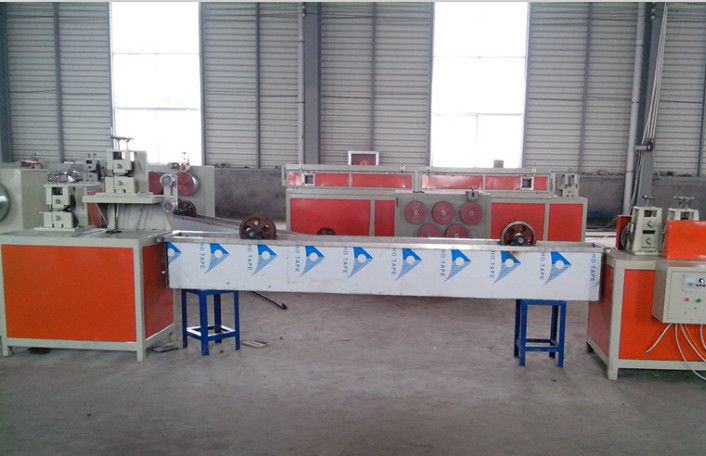

Main Extruder-----Screen changer---extruding die---cooling tank---first 5 roller haul-off--Stretching tank---second 5 roller haul-off unit---2 roller embossing part---cooling tank---winder;
2. .Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs.Process 100% recycled PP/PET bottle flakes or pellets.Even plasticization and stable extrusion with PLC automatic control for the full line.
4.As per different requirements, changing a coating materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5.Melt filter with two pistons with air venting design and back flushing.Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mmWorkers: 2 -3 workers per shift, 12 hours/shift.
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
