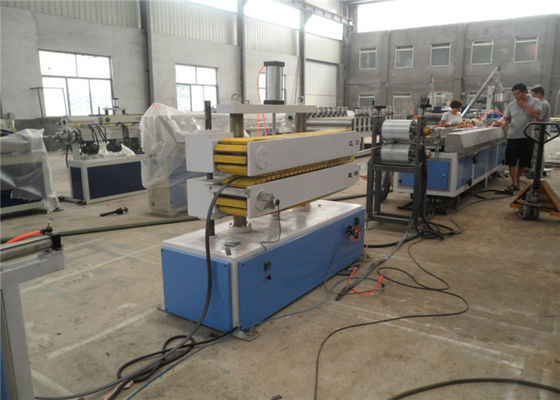

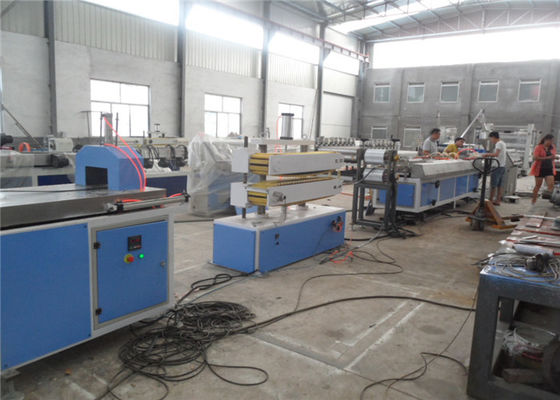

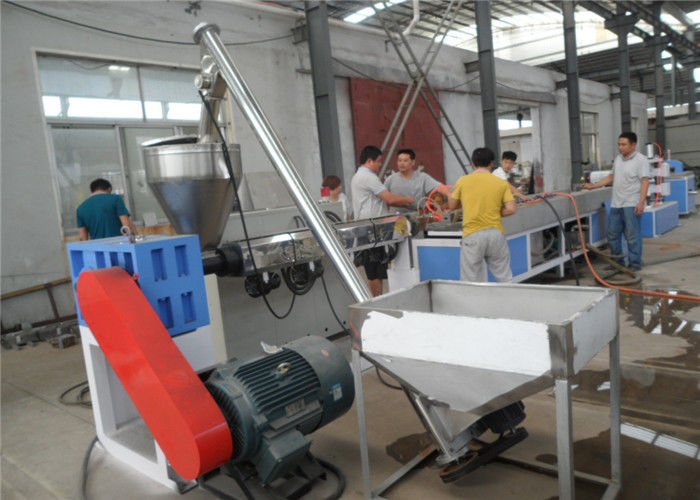

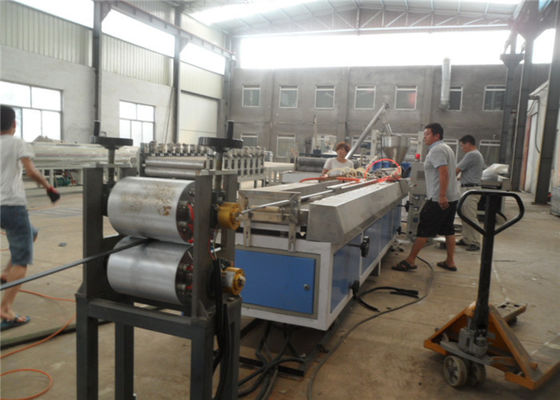

PVC Foaming Wood Plastic Profile Extrusion Line 55kw 380V 50HZ

Brand Name:	AORUI
Model Number:	SJSZ65/132
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA ISO9001

Condition:

New

Screw Design:

Double Screw

Brand Name:

Aorui

Power:

55kw

Certificate:

CE ISO9001

Application:

Profile

Voltage:

380V 50HZ

Warranty Time:

1 Year

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per quarter

Highlight:

Plastic Profile Extrusion Machine

Plastic Profile Extruder

Product Description

Plastic Profile Extrusion Line , PVC Foaming Plastic -Wood Profile Making Machine , Plastic Profile Extruder

Quick detail:

1. PVC Foaming Plastic-wood Profile & Sheet/Plastic Window & Door Profile Extrusion Line is used to produce crust foam board which are used for furniture, cabinet,decoration, advertising etc.

2. Specifiation of PVC foam board can be produced by our PVC foam board machine:

Width: 915mm to 1830mm

Thicness: 5-20mm

Density: 0.35-0.7g/cm3

Specification of pvc wpc Profile Machine:

1. The main machines needed for PVC/ WPC foam board:

-PVC mixer

-PVC WPC foam board extrusion line

(Including autoloader, conical twin screw extruder, mould, calibration table, hauling machine, auto cutter- stacker)

- lamination machine(for furniture foam board)

- hot stamp printer (for furniture foam board)

- waste rusher& PVC miller

- Air compressor

- Water chiller

2. Production flow of PVC/WPC foam board:

Material batching mixing_extruding_molding_vacuum calibrating and cooling_hauling_cutting- final WPC foam boards

Technical Parameters:

Items	YF180	YF240	YF300	YF600	YF900
Max.width of board(mm)	180	240	300	600	900
Extruder Model	SJZ55/110	SJZ65/132		SJZ80/156	SJZ92/188
Mian motor power(KW)	22	37		55	110
Drawing height(mm)	150	150	150	150	150
Drawing speed(KN)	20	20	20	30	40
Drawing speed(m/s)	0-5	0-5	0-5	0-3	0-2.5
Auxiliary equipment sum power(kw)	35	35	30	30	40
Cooling water consume(m 3 /h)	6	6	6	9	12
Compression air(Mpa)	0.6	0.6	0.6	0.6	0.6

Our company advantages:
1. CE ISO9001 Certificate
2. We have more than 15 years experience
3. We are factory, and welcome to customer to visit our factory
4. Good pre-sales and after-sales service

5. The customer can send the engineer to our company with training
6. Our engineer can be to the Buyer's company for installation and testing the lines.
7. The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
