Single Screw Plastic Granules Machine / Plastic Pellet Extruder

Single Screw Plastic Granules Machine / Plastic Pellet Extruder
Single Screw Plastic Granules Machine / Plastic Pellet Extruder Single Screw Plastic Granules Machine / Plastic Pellet Extruder Single Screw Plastic Granules Machine / Plastic Pellet Extruder Single Screw Plastic Granules Machine / Plastic Pellet Extruder

Large Image :  Single Screw Plastic Granules Machine / Plastic Pellet Extruder

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ75/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Single Screw Plastic Granules Machine / Plastic Pellet Extruder

Description
Certificate: CE ISO9001 Inverter: ABB
Original: China Screw Design: Single Screw
Product: Granules Machine Color: Bule
Brand Name: Aorui Voltage: 380V
High Light:

Plastic Pelletizing Machine

,

Plastic Granulating Machine

Plastic Granules Machine , PP PE Waste Plastic Recycling Granules Making Machinery , PP PE Granulator Machine





QUICK DETAIL:



1. The line is special equipment for the PE PP film Plastic recycling granulating, it equipped with compactoring machine which could pre- compact the film plastic into smaller granules, then easily feed into screw barrel of extruder, ensure high capacity and save labour.



2. .It has two vacuum exhuasting mouth on extruder barrel which can fully vent the moisture in the material and the final granule quality will be very perfect.







Description:



1. Plastic pellet making machine/Waste plastic granule making machine/pp pe film pellet production line



Application:

Applicable materials for plastic pelletizer machine: PP,PE, LDPE, LLDPE, HDPE, BOPP, EPS,etc.

Material shape: Woven bags, pp pe film,printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and raffia, etc.

Note: depending on material property, various downstream equipments are available.



2. Main Machines
Δ Agglomerator
Δ The First Stage Single Screw Extruder with Hydraulic Screen Changing System
Δ The Second Stage Single Screw Extruder with Hydraulic Screen Changing System
Δ Die and Water Ring Cutter

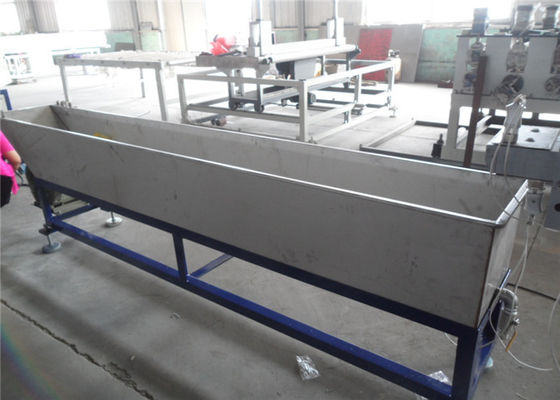

Δ Cooling Trough and Vertical Dewatering Machine and Blower Delivery System







Specifications:



Model SJW45/33 SJW60/33 SJW75/33 SJW90/33 SJW120/33 SJW150/33
Screw diameter(mm) 45 60 75 90 120 150
L/D 33:1 33:1 33:1 33:1 33:1 33:1
Transmission power(kw) 37 75 110 160 280 400
Center height 1000 1000 1100 1100 1100/1300 1300
Output(kg/h) 150 300 450 600 900 1200









Our company competitive advantages:

1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life

3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
